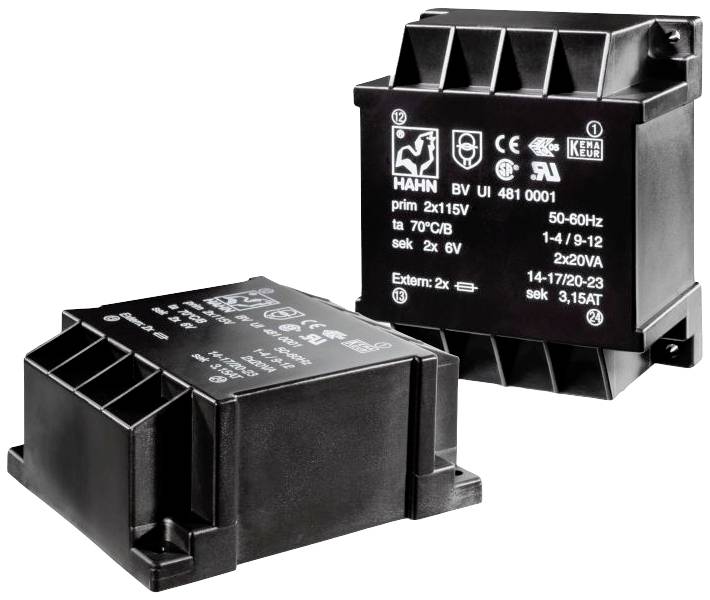

Hahn BV UI 481 0002 PCB mount transformer 2 x 115 V 2 x 9 V AC 40.0 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Transformer P: 2X115V S:2x9V/40,0VA
- 2 x 115 V
- 2 x 9 V AC
- 40.0 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
9 V AC
- Output voltage (number x voltage)
2 x 9 V AC
- No. of inputs
2 x
- No. of outputs
2 x
- Input voltage
115 V
- Input voltage (number x voltage)
2 x 115 V
40.0 VA
- Width
70.90 mm
- Height
38.70 mm
- Length
84.00 mm
- Type
BV UI 481 0002
- Dim
(L x W x H) 84.00 x 70.90 x 38.70 mm
- Frequency
50 - 60 Hz
- Weight
780 g
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
Documents & Downloads
Datasheet
Datasheet 2827737 Hahn BV UI 481 0002 PCB mount transformer 2 x 115 V 2 x 9 V AC 40.0 VA
