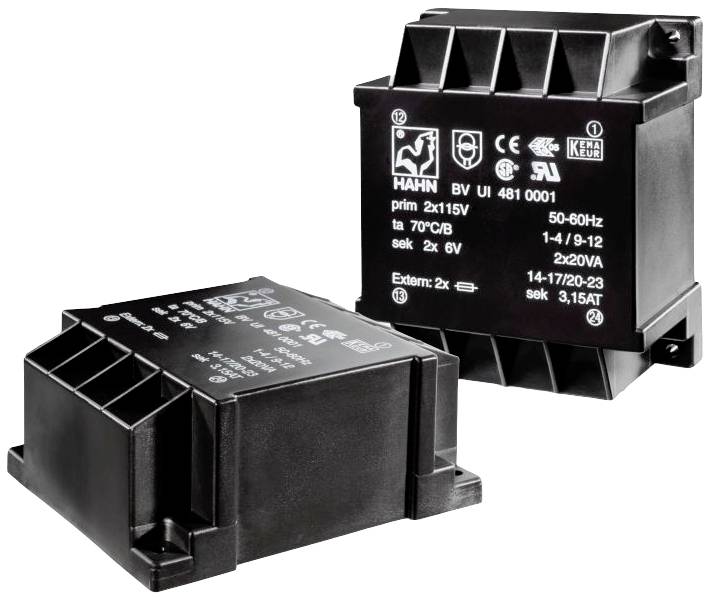

Image similar
Image similar
Hahn BV UI 482 0010 PCB mount transformer 2 x 115 V 2 x 15 V AC 60.0 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Transformer P: 2x115V S:2x15V/60.0V
- 2 x 115 V
- 2 x 15 V AC
- 60.0 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
15 V AC
- Output voltage (number x voltage)
2 x 15 V AC
- No. of inputs
2 x
- No. of outputs
2 x
- Input voltage
115 V
- Input voltage (number x voltage)
2 x 115 V
60.0 VA
- Width
70.90 mm
- Height
47.90 mm
- Length
84.00 mm
- Type
BV UI 482 0010
- Dim
(L x W x H) 84.00 x 70.90 x 47.90 mm
- Frequency
50 - 60 Hz
- Weight
1100 g
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2827740 Hahn BV UI 482 0010 PCB mount transformer 2 x 115 V 2 x 15 V AC 60.0 VA
User & Safety Instructions
User & Safety Instructions 2827740 Hahn BV UI 482 0010 PCB mount transformer 2 x 115 V 2 x 15 V AC 60.0 VA
