Name: Hailo 9459-507 G60 Aluminium Installation scaffold Operating height (max.): 4.3 m Silver, Red 31 kg
Brand: Hailo
SKU: 2376463

A silver aluminium frame, freestanding, with red connectors, suitable for high-altitude work indoors and outdoors.

Aluminium scaffold as a multi-functional ladder with platform and support structure. Suitable for construction or renovation work.

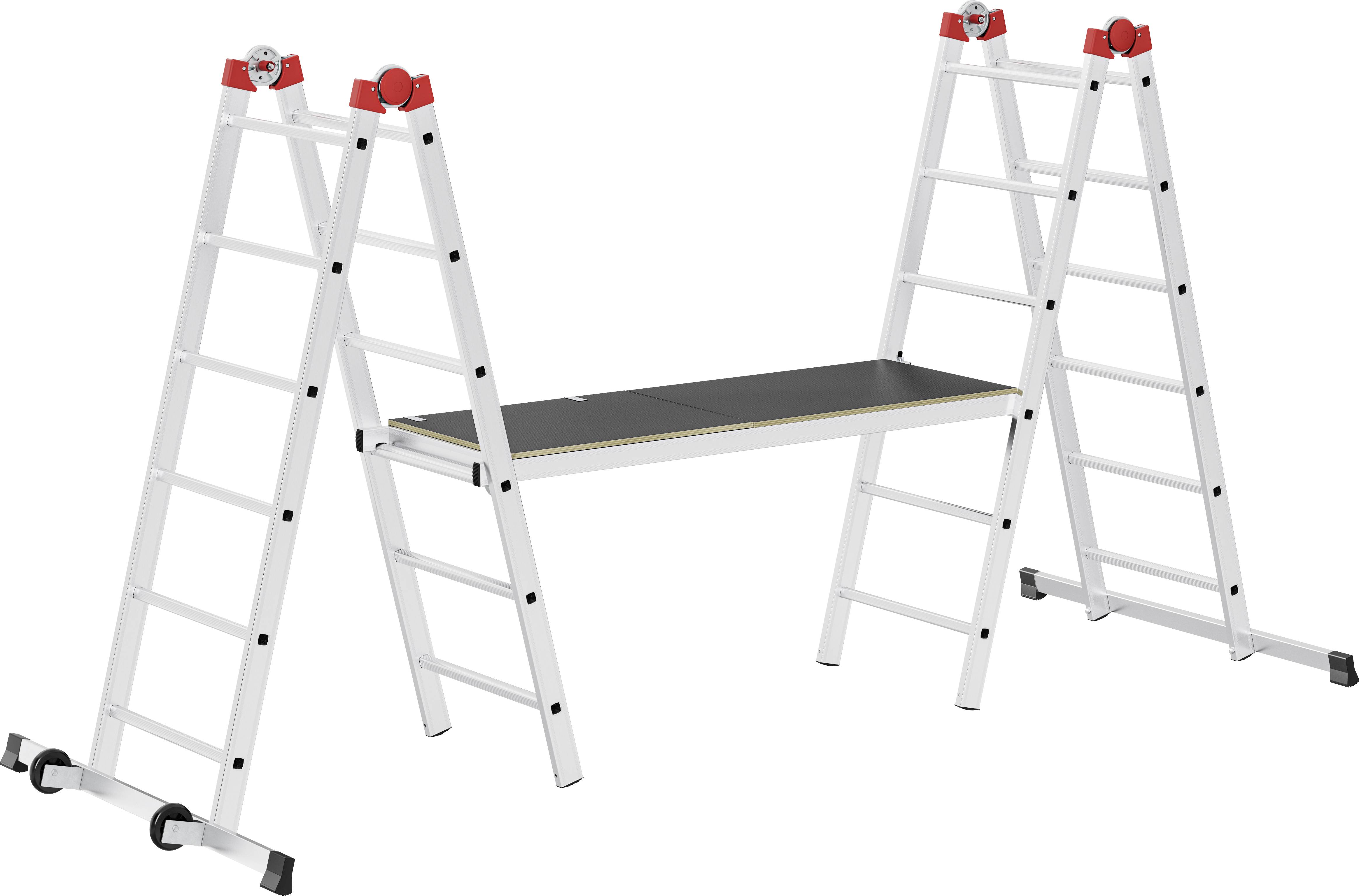

Aluminium ladder with platform, freestanding, extendable, with red locks at the upper corners.

Two telescopic ladders: Left fully extended, right set up in A-position. Both made of aluminium with red locks.

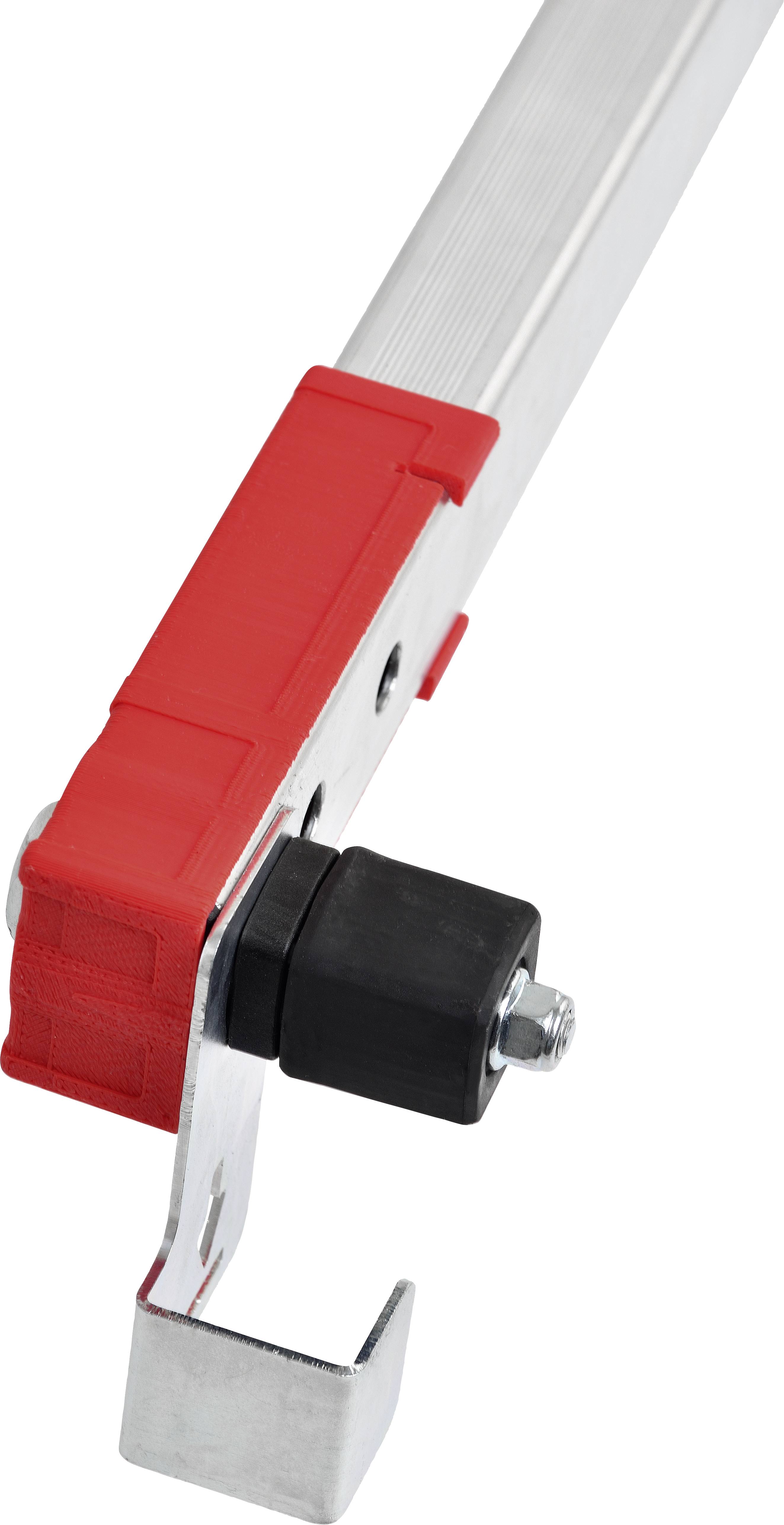

An adjustable metal rod with a red plastic handle and a hook at the end, potentially for industrial applications.

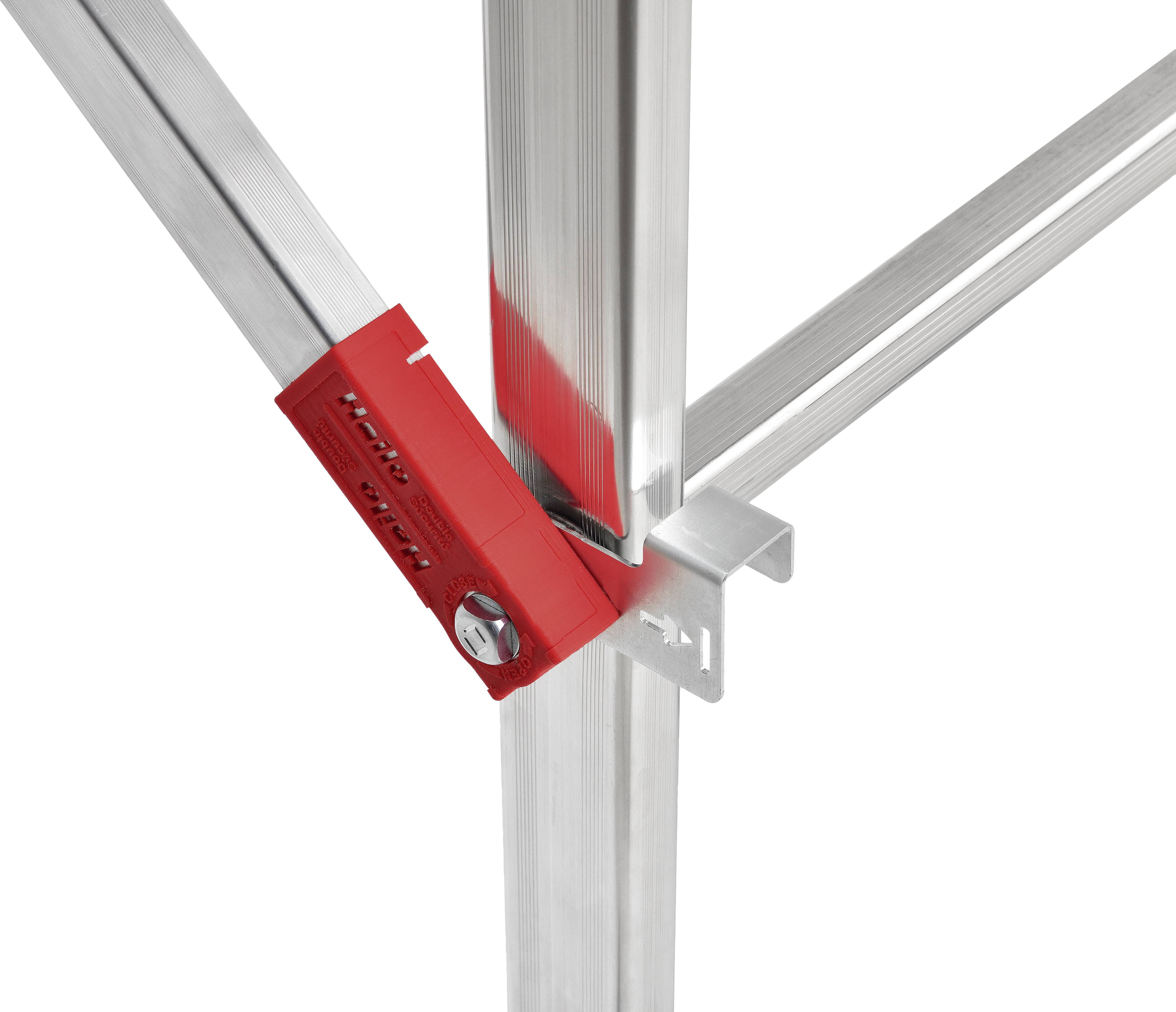

Hailo 9459-507 G60 Aluminium Installation scaffold Operating height (max.): 4.3 m Silver, Red 31 kg-6

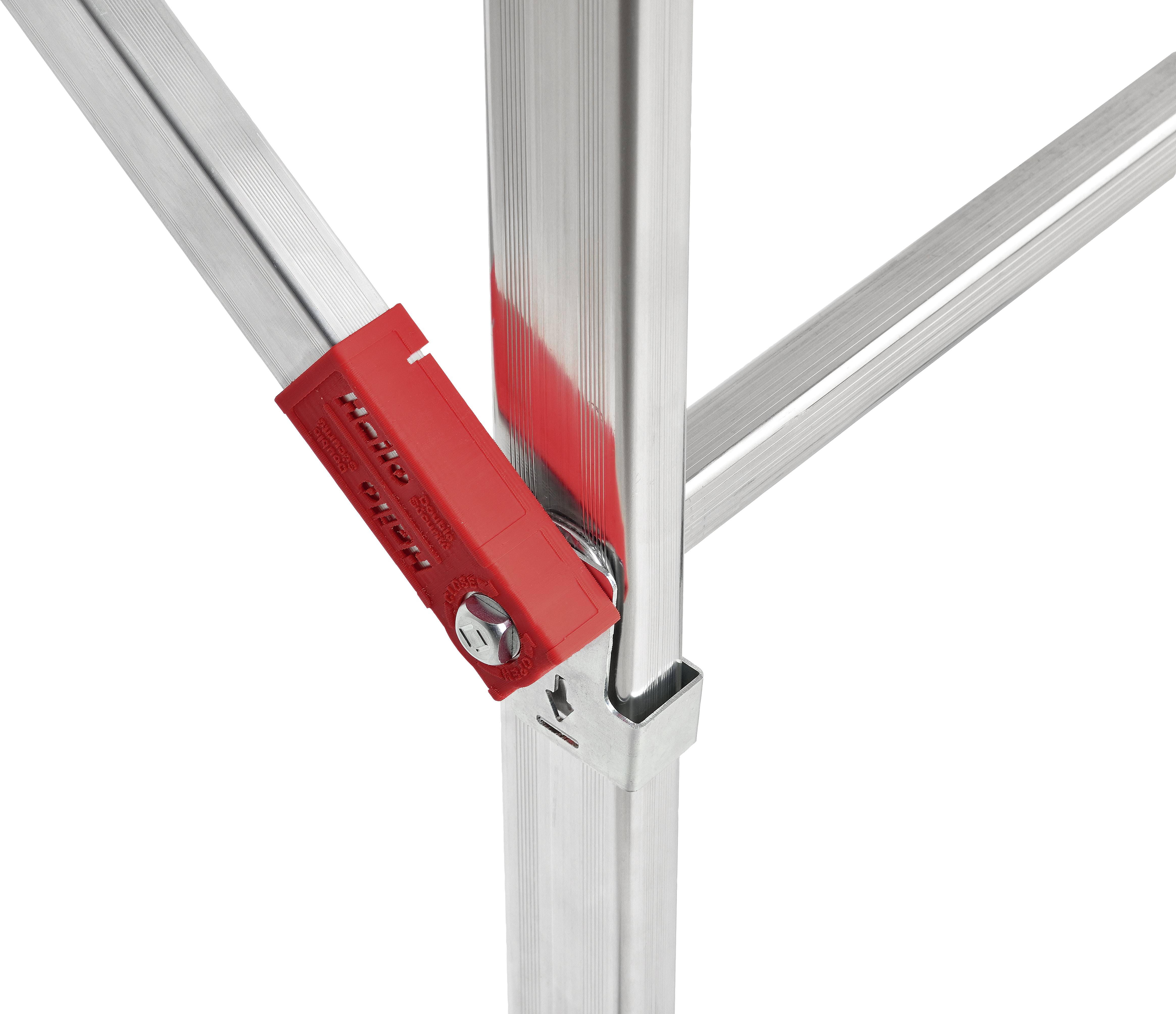

Close-up of a silver aluminium frame with a red lever mechanism securing a connection.

Red safety mechanism of a ladder showing 'Hello' and 'Lock' on metal structure.

A man is standing smiling in front of a building, holding a paint roller and a bucket. In the background, a metal scaffold is positioned against the wall.

1/10

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Platform dimensions 136 × 50 cm
Holmdimension: 60 × 22 mm
Rung distance 260 mm

Product type: Installation scaffold

Working height range: 4.1 m - 5 m

Factory colour: Silver
Red

Material: Aluminium

Weight: 31 kg

Operating height (max.): 4.3 m

Type: Leaning ladder
Ladder pair

Platform width: 1360 mm

Platform depth: 500 mm

Step depth: 260 mm

Load capacity (max.): 150 kg

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2376463 Hailo 9459-507 G60 Aluminium Installation scaffold Operating height (max.): 4.3 m Silver, Red 31 kg

User & Safety Instructions

User & Safety Instructions 2376463 Hailo 9459-507 G60 Aluminium Installation scaffold Operating height (max.): 4.3 m Silver, Red 31 kg

Warranty Terms

Warranty Terms 2376463 Hailo 9459-507 G60 Aluminium Installation scaffold Operating height (max.): 4.3 m Silver, Red 31 kg

Description

Multifunction scaffold with "Fast & Lock" quick-release fastener. Scaffolding and ladder in one. Simple handling and easy, quick assembly through "Fast & Lock" quick-release lock. Multi-function: Used as a laying and double ladder, as a small frame for indoor and outdoor use or as a work platform. Stair adjustment possible. 2 conductor elements à 12 rungs (27 × 27 mm) with safety joints for locking and unlocking the conductor parts. Platform with passage hatch (61 × 46 cm). 2 cross beams and 2 transport rollers. 4 railing rails and 4 diagonal struts made of aluminum.

This text is machine translated.

Features

Scaffolding and ladder in one
Simple handling and easy, quick assembly through "Fast & Lock" quick-release lock
Multi-function: Used as a laying and double ladder, as a small frame for indoor and outdoor use or as a work platform
Stair adjustment possible
2 conductor elements à 12 rungs (27 × 27 mm) With safety joints for locking and unlocking the conductor parts
Platform with passage hatch (61 × 46 cm)
2 cross beams and 2 transport rollers
