Hama 00223615 Mains PSU (adjustable voltage) 12 V 1.5 A 18.00 W
EAN:
Part number:
Item no:
Datasheet (PDF)

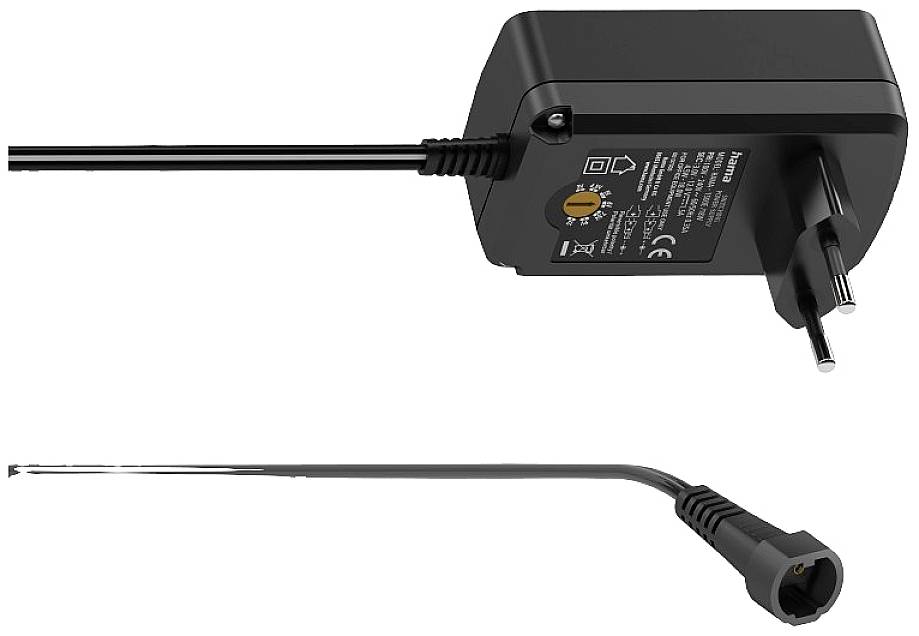

Switch-mode power supply universal, adjustable, 1500mA, 18W, max. 12V, 7 adapters
Highlights & Details
- Maximum output voltage 12 VMax. load 1500 mAMax. output power 18 W7 adapters
Technical specifications
- Product type
Mains PSU (adjustable voltage)
- Used at
Indoors
Mains socket
- Max. output current
1.5 A
- Output voltage
12 V
- Output current (max.) - rounded
1.5 A
18.00 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
178.00 g
- Type
00223615
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2633610 Hama 00223615 Mains PSU (adjustable voltage) 12 V 1.5 A 18.00 W
User & Safety Instructions
User & Safety Instructions 2633610 Hama 00223615 Mains PSU (adjustable voltage) 12 V 1.5 A 18.00 W
Description
Mains power supply unit for electronic devices with direct voltage input, for example a portable CD player, radio, chain of lights, children's toys, Digital photo frame, tool, router, desk lamp as well as battery-operated devices, Ideal as replacement or second power supplyAutomatic overload and overheat protection as well as short-circuit protection protects the connected devicesWhether plus or minus: With the reversible polarity you are always flexible, depending upon the requirements of the electronic device
This text is machine translated.
This text is machine translated.
Features

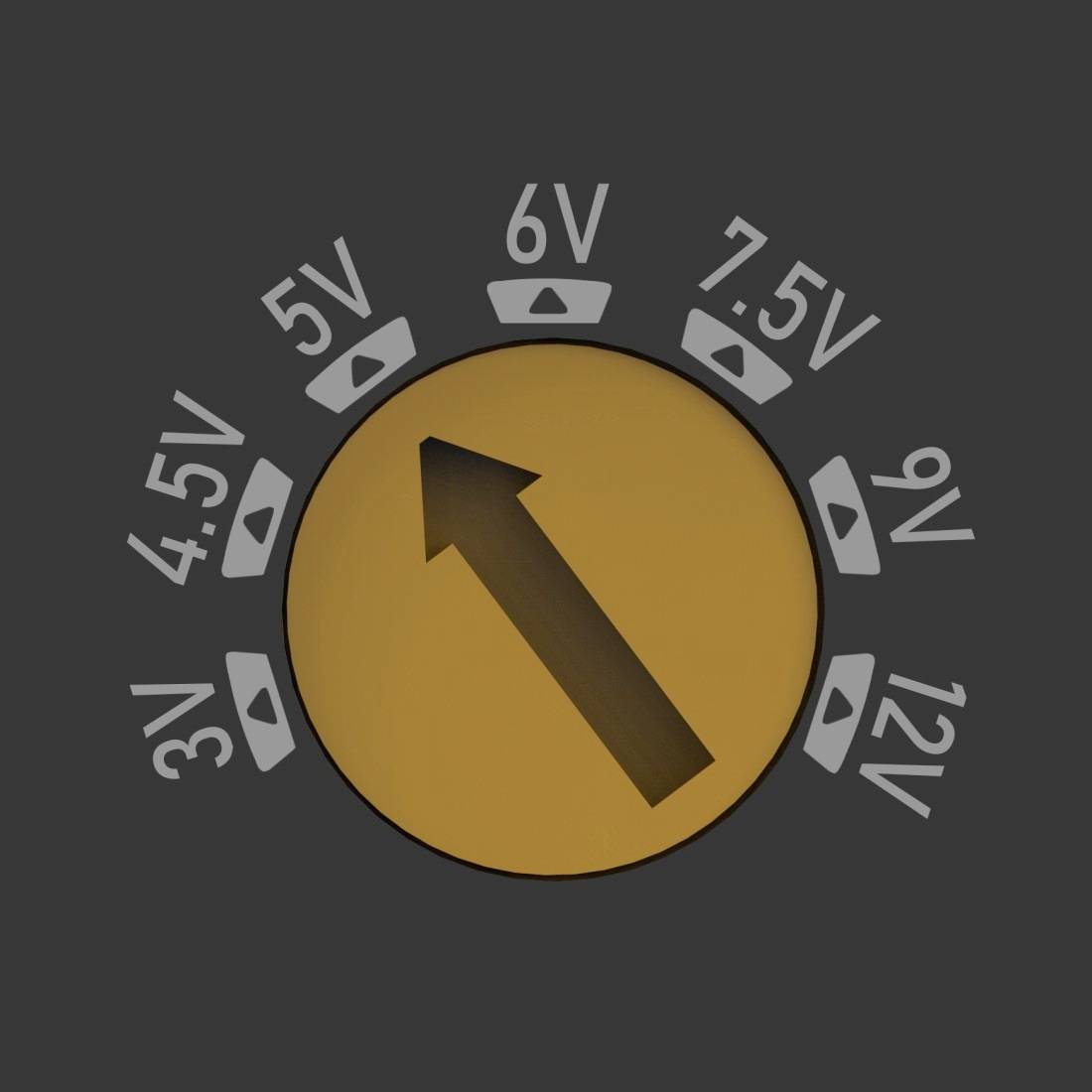

- LED function indicator: Indicator light indicates whether the power supply is receiving powerMains connection of 100 - 240V suitable for worldwide use in conjunction with country specific adapterLow power consumption in standby modeAdjustable power supply with Hohem efficiency: Max. 18 W/max. 1500 mA over all voltage ranges 3V / 4.5V / 5V / 6V / 7.5V / 9V / 12VSettings can be made with the switch keyWith 7 adapter plugs: 2 USB adapter: 1x Micro-USB connector, 1x USB-A port5 DC-plug 1.35 x 3.5 / 1.7 x 4.0 / 2.1 x 5.0 / 1.5 x 5.5 / 2.5 x 5.5 mm
Scope of delivery
- 1 switched power supply7 adapter plug1 switch keys1 operating instructions
