Highlights & Details

Hama premium TV-antenna indoor

Active indoor antenna for strong signal reception for digital TV reception (DVB-T2)
Large reception area (28 x 14) of the indoor aerial enables the reception of the horizontal and vertically polarized channels without rotating the antenna
Ideal for HD
LTE filter 5G: Ensures interference-free reception because 5G mobile phone signals are filtered
Power supply via USB-A Micro-USB cable, switches on and off automatically with the receiver
USB cable makes possible a versatile use e.g. in mobile homes, cars and on boats, but also for connecting to Power packs, if there is no power supply nearby e.g. while camping
Extremely slim profile for space-saving interior design

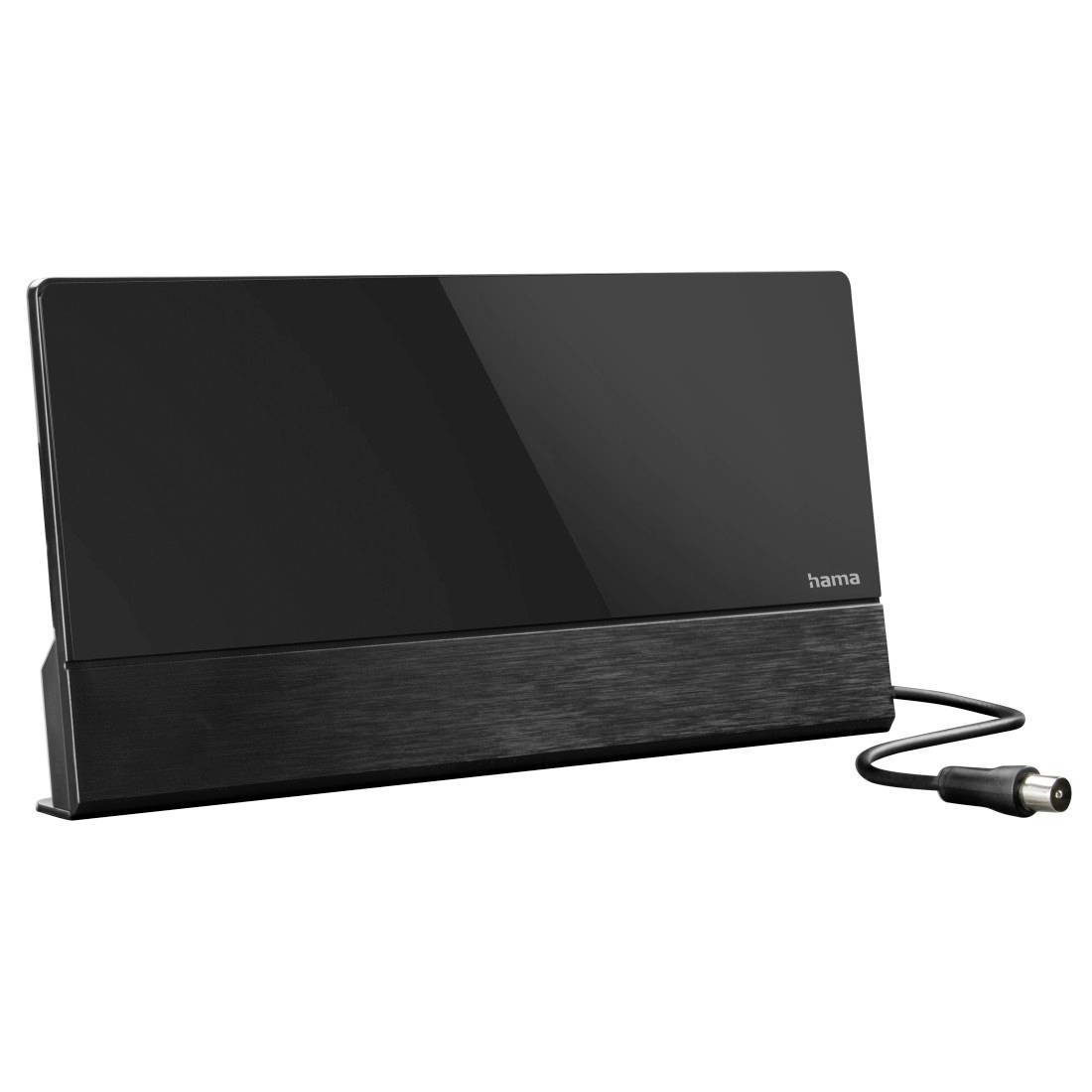

Cable 2 m with coax plug

Technical specifications

Digital signal-format system DVB-T,DVB-T2

Product type: DAB+ room antenna

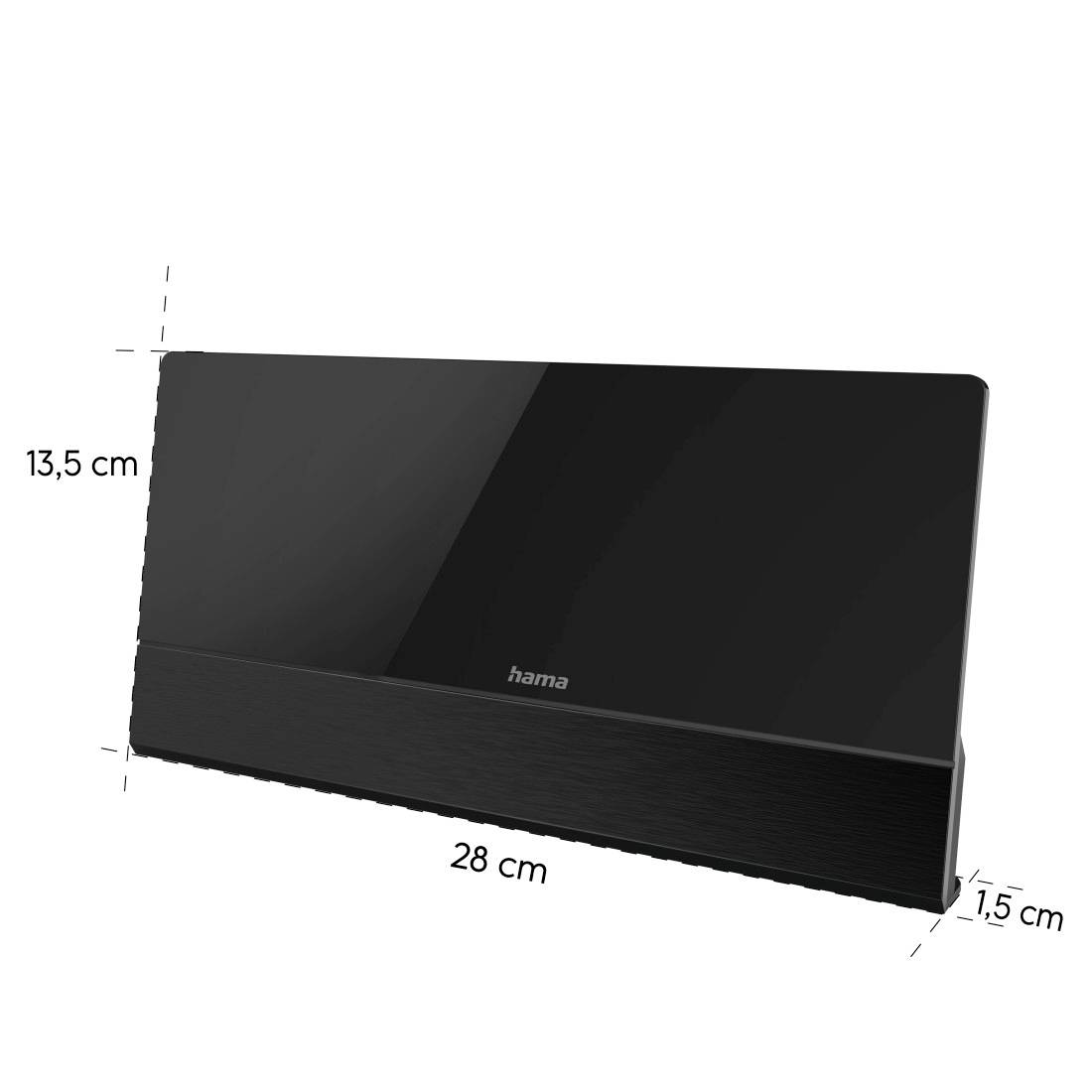

Dim: (W x H x D) 280 x 135 x 15 mm

Factory colour: Black

Width: 280 mm

Height: 135 mm

Tuner: DAB
DAB+
FM

Depth: 15 mm

Interfaces (input): Micro USB

Interfaces (output): Coax connector

Power supply: USB (cable included)

Wireless charging: No

UKCA: yes

Antenna cable length: 2 m

Package weight: 512 g

Frequency range: 87,5 - 1479,5 MHz

Documents & Downloads

Datasheet

Datasheet 3820315 Hama DAB+ room antenna

User & Safety Instructions

User & Safety Instructions 3820315 Hama DAB+ room antenna

Description

Hama room antenna "Premium", DAB+, DAB, DVB-T2, FM, active, automatic Gain

- Always the best reception: Automatically regulating amplifier power for interference-free reception and thus optimal picture and sound quality
- Separate on/off switch on the indoor aerial: Energy-saving - so the DVB-T2 antenna only consumes power when you need it
- Low-noise amplifier: The high input sensitivity ensures the best signal reception
- Phantom power via antenna cable: Radio and TV can supply power to the DVB-T2 antenna
- Large reception area (28 x 14) of the indoor aerial allows reception of horizontally and vertically polarized channels without turning the antenna
- Ideal for HD
- LTE filter 5G: Guarantees interference-free reception because 5G mobile phone signals are filtered
- Power supply via cable USB-A - Micro-USB, automatically switches on and off with receiver
- USB cable makes possible a versatile use e.g. in caravans, cars and on boats, but also for connection to Power packs, if no power connection is nearby e.g. while camping
- Extremely slim profile for space-saving interior design
- 2 m cable with coaxial connector

This text is machine translated.

Features

Colour: Black, color tone: Black, connection: Coaxial plug, micro USB plug, power connection plug type: No indication, Frequency range: 174 - 230 MHz, 470 - 690 MHz, Technology: DVB-T/T2, TV, Amplification: active, mounting: stand alone, Performance: 55, width: 1.5 cm, shape: flat antenna, height: 13.5 cm, coaxial cable length: 1.27 m, Length: 28 cm, power supply: external USB-power supply/remote feed via antenna cable, application area: interior, use: indoor antenna

Scope of delivery

1 Indoor antenna "Premium"
1 cable USB-A Micro-USB
1 operating instructions
