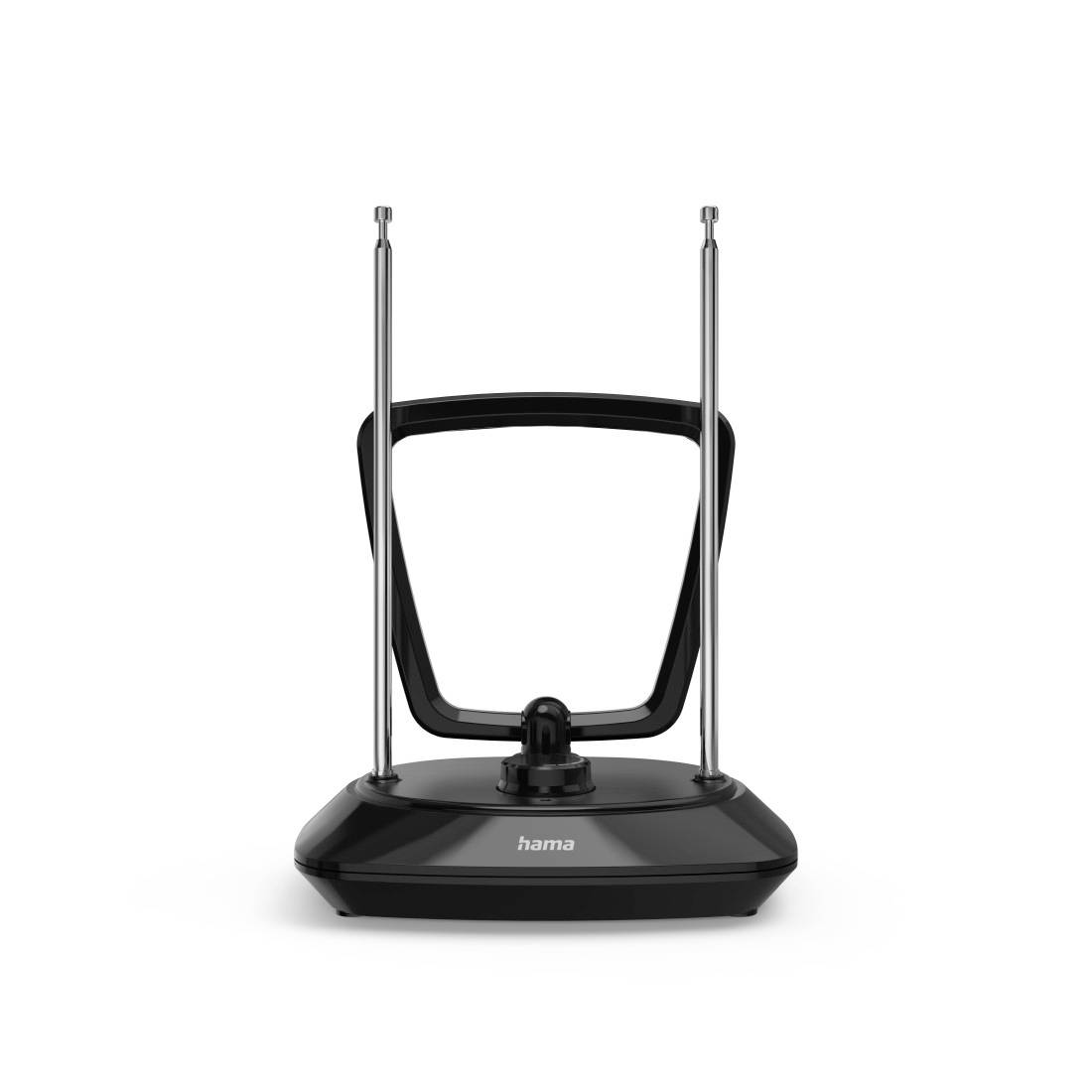

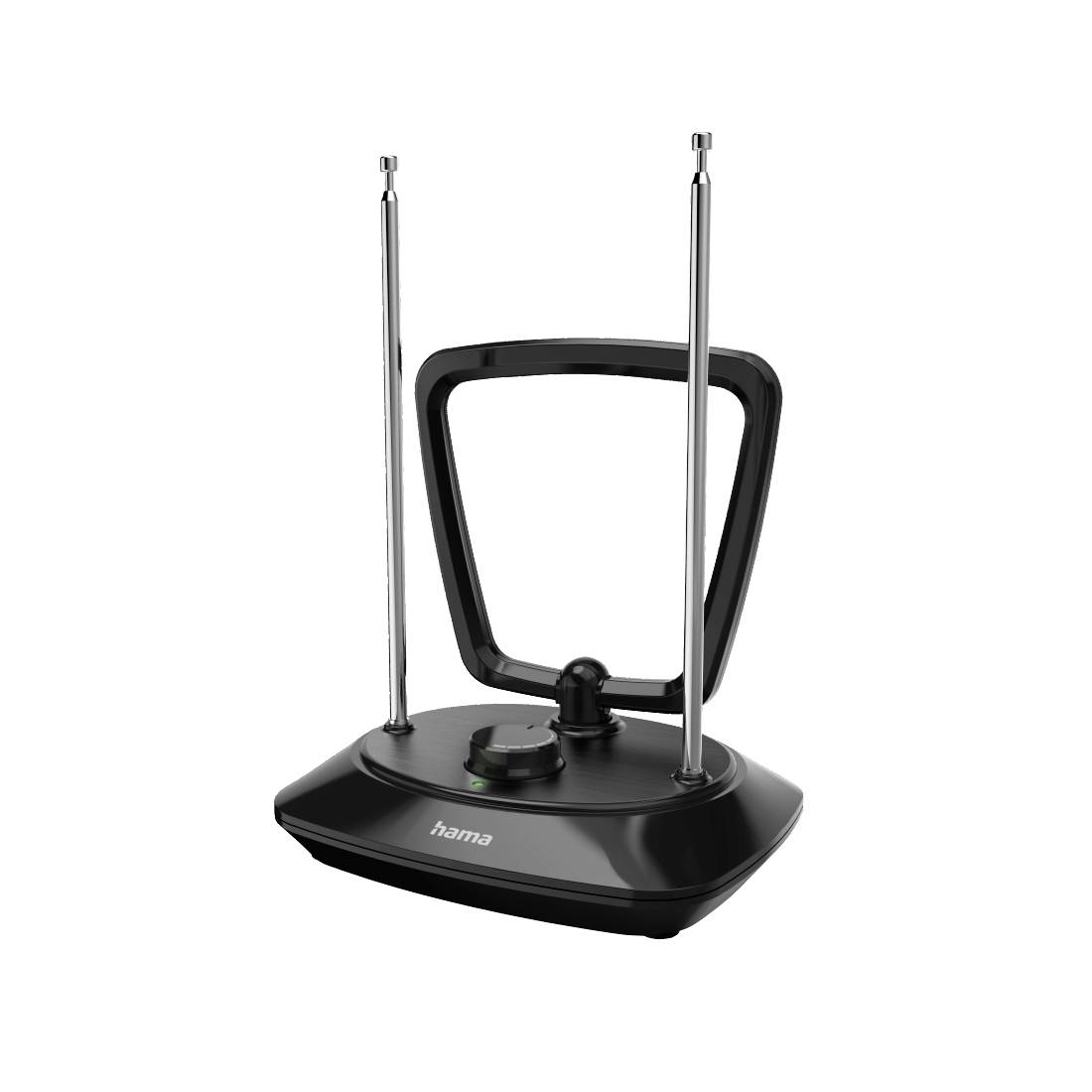

Hama DVB-T/T2 active monopole antenna Indoors Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Hama classic TV-antenna indoor
Highlights & Details
- Active indoor antenna for strong signal reception for digital TV reception (DVB-T2)
- Circular room antenna for television enables reception of horizontal and vertical polarized stations without rotating the antenna
- LTE filter 5G: Ensures interference-free reception because 5G mobile phone signals are filtered
- Power supply via USB-A Micro-USB cable, switches on and off automatically with the receiver
- USB cable makes possible a versatile use e.g. in mobile homes, cars and on boats, but also for connecting to Power packs, if there is no power supply nearby e.g. while camping
- Cable 2 m with coax plug
Technical specifications
- Digital signal-format system DVB-T,DVB-T2
- Product type
DVB-T/T2 active monopole antenna
- Used at
Indoors
- Dim
(L x W x H) 15 cm x 105 mm x 195 mm
- Length
15 cm
- Reception
DVB-T2 (aerial)
- Frequency range
174 - 230 MHz
- Factory colour
Black
- Width
105 mm
- Height
195 mm
- Tuner
DAB
DAB+
FM
- Version
Cable
- Depth
150 mm
- Cable use
Antennas
- UKCA
not relevant
- Antenna cable length
2 m
- Package weight
447 g
- Frequency range
87,5 - 1479,5 MHz
Documents & Downloads
Datasheet
Datasheet 3820313 Hama DVB-T/T2 active monopole antenna Indoors Black
User & Safety Instructions
User & Safety Instructions 3820313 Hama DVB-T/T2 active monopole antenna Indoors Black
Description
Hama room antenna "Classic", DAB+, DAB, DVB-T2, FM, active, once. Support
- Adjustable amplifier power for interference-free reception and thus optimal picture and sound quality
- Low-noise amplifier: The high input sensitivity ensures the best signal reception
- LED power indicator indicates whether the power supply is active
- Ring-shaped indoor aerial for TV and radio allows reception of horizontally and vertically polarized channels without rotating the antenna
Antenna
- LTE filter 5G: Guarantees interference-free reception because 5G mobile phone signals are filtered
- Power supply via cable USB-A - Micro-USB, automatically switches on and off with receiver
- USB cable makes possible a versatile use e.g. in caravans, cars and on boats, but also for connection to Power packs, if no power connection is nearby e.g. while camping
- 2 m cable with coaxial connector
This text is machine translated.
Features
- Colour: Black, color tone: Black, connection: Coaxial plug, micro USB plug, power connection plug type: No indication, Frequency range 174 - 230 MHz, 470 - 690 MHz, technology: DVB-T/T2, radio, TV, gain: active, Installation: Stand alone, Performance: 35, Width: 10.5 cm, Shape: Ring antenna, Height: 19.5 cm, Coaxial cable length: 1.9 m, length: 15 cm, current supply: external USB-power supply/remote feed via antenna cable, application area: interior, use: room antenna
Scope of delivery
- 1 Indoor antenna "Classic"
- 1 cable USB-A Micro-USB
- 1 operating instructions
