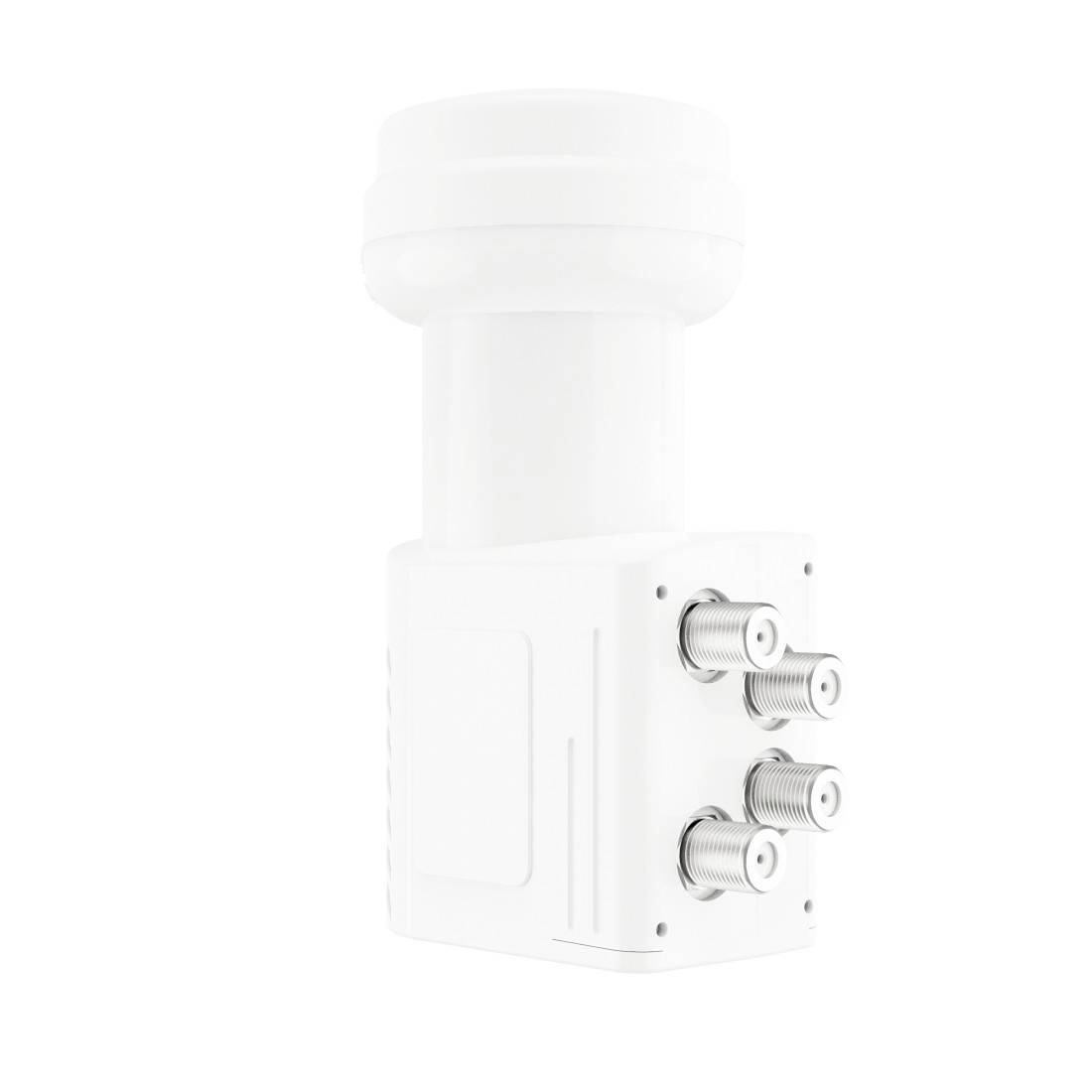

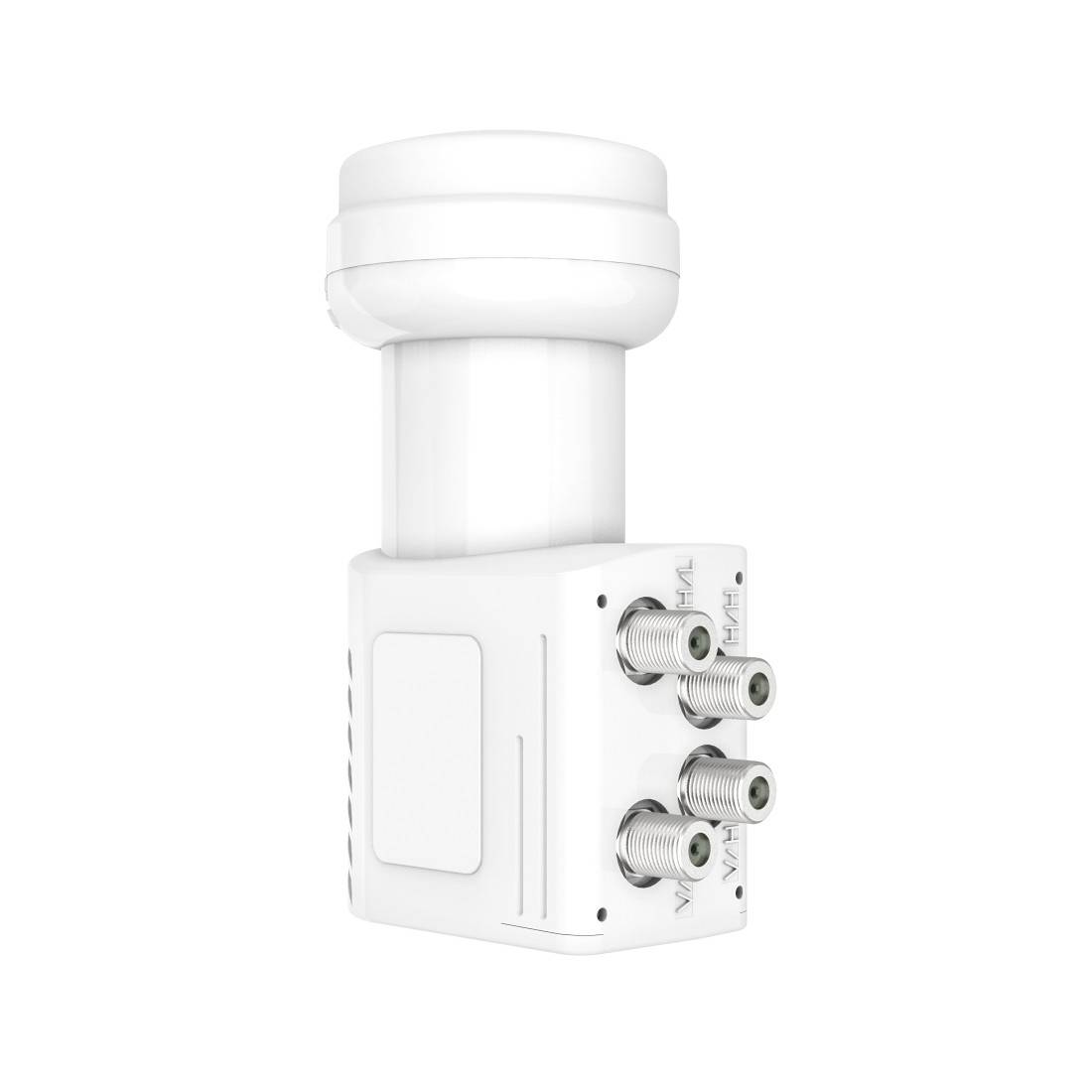

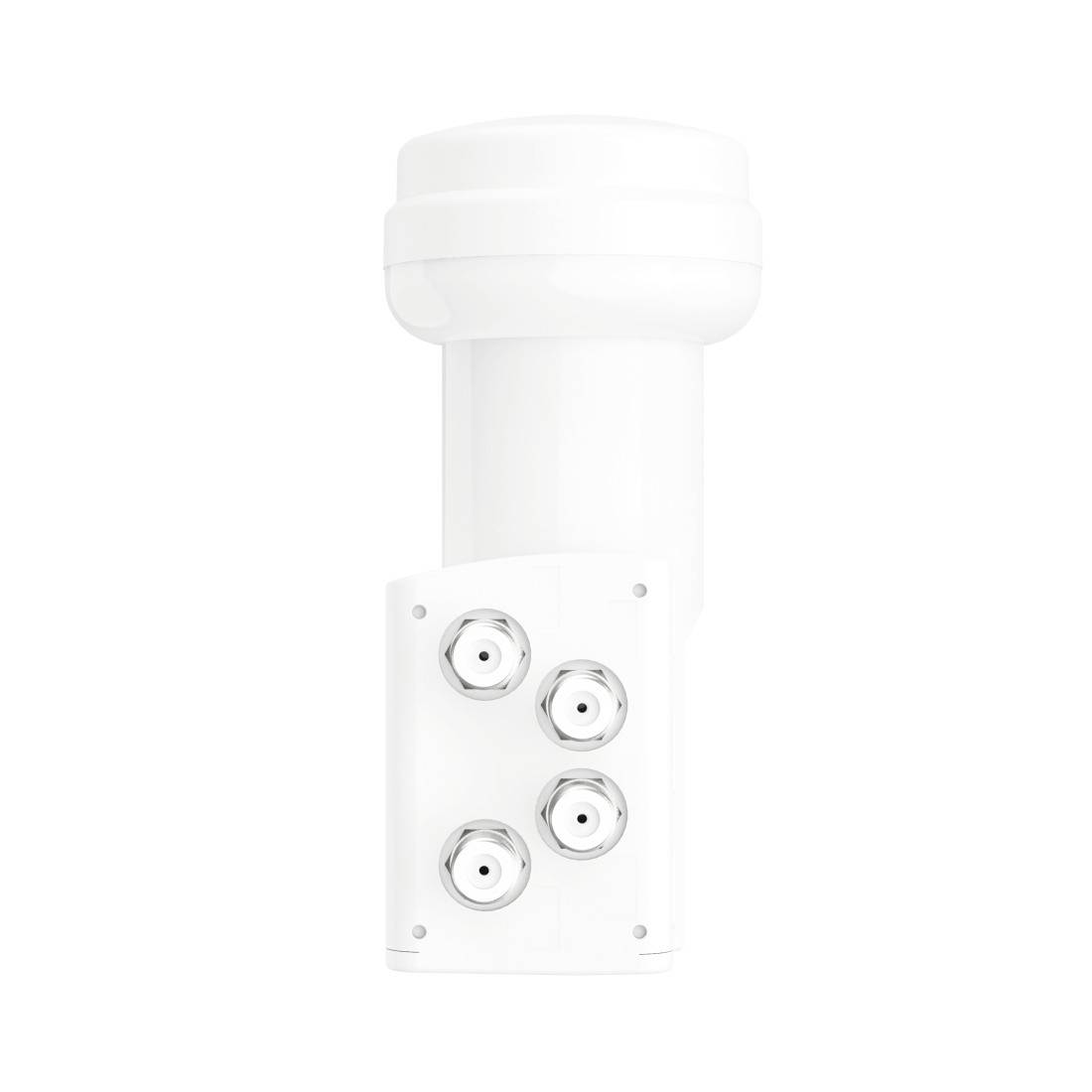

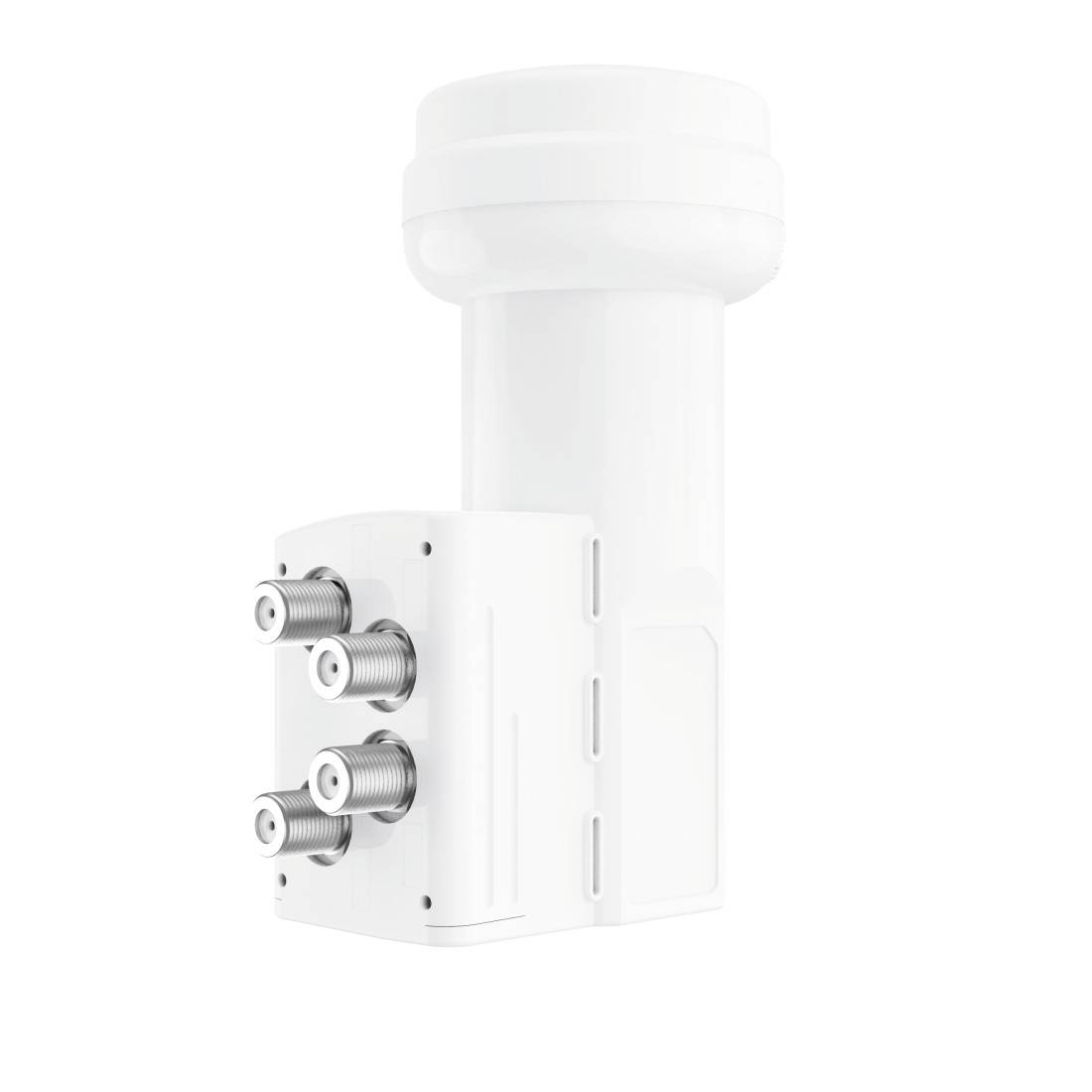

Hama Quattro LNB LNB feed size: 40 mm White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Hama 00205376 Low-noise signal converter Quattro LNB 10.7 - 12.75 GHz white
- For connection of several digital receivers or TVs with in-built digital receiver in connection with multi-switch
- For digital reception of SAT programs e.g. Astra, Eutelsat or Turksat
- Ideal for HD, HD+ Full HD, Ultra HD UHD 4K and 8K

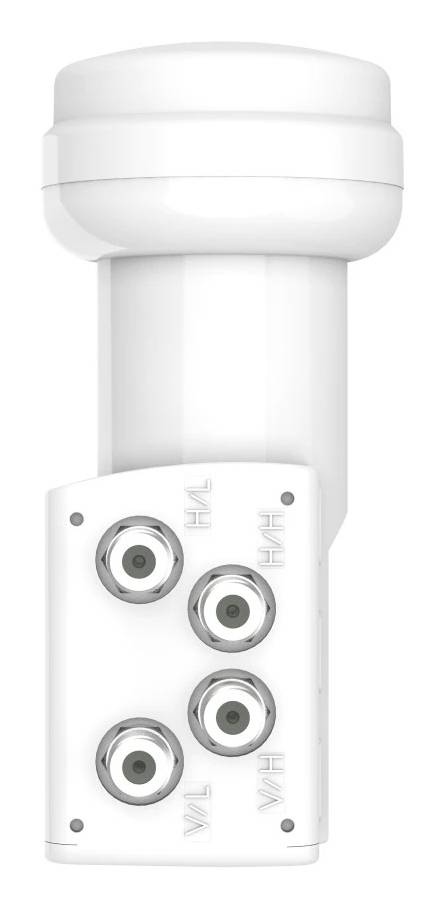

- With four fixed outputs (HL/VL/HH/VH)
- Weatherproof owing to the extendable weather protection case
Technical specifications
- Diameter of feedhorn 4 cm
- Product type
Quattro LNB
- No. of outputs
4 x
- LNB feed size
40 mm
- Factory colour
White
- Type
Quatro LNB
- Input frequency range
10,7 - 12,75 GHz
- Gain
57 dB
- Quantity
1
- Conversion gain range
53 - 62 dB
- Supply voltage Ca (vertical polarization)
14 - 18 V
- Switching frequency (max)
22 kHz
- Colour
yes
- Power consumption
78 mA
- Package weight
179 g
- Noise figure
0.3 dB
Documents & Downloads
Datasheet
Datasheet 3820243 Hama Quattro LNB LNB feed size: 40 mm White
User & Safety Instructions
User & Safety Instructions 3820243 Hama Quattro LNB LNB feed size: 40 mm White
Description
For connection of several digital receivers or TVs with in-built digital receiver in connection with multi-switch.
Low noise factor of 0.3 dB
Particularly low noise: The high-quality installed components ensure a very low noise factor of max. 0.3 dB
Rugged weatherproof housing
Secure protection against wind and weather: The stable weather-proof housing protects the LNB and the connections and provides a constantly good transmission quality
Several ports with multi-switch
Several units supply: Thanks to the 4 connections on the Quattro LNB, several digital receivers can be connected directly together with an external multi-switch
This text is machine translated.
Low noise factor of 0.3 dB
Particularly low noise: The high-quality installed components ensure a very low noise factor of max. 0.3 dB
Rugged weatherproof housing
Secure protection against wind and weather: The stable weather-proof housing protects the LNB and the connections and provides a constantly good transmission quality
Several ports with multi-switch
Several units supply: Thanks to the 4 connections on the Quattro LNB, several digital receivers can be connected directly together with an external multi-switch
This text is machine translated.
Features
- For connection of several digital receivers or TVs with in-built digital receiver in connection with multi-switch
- For digital reception of SAT programs e.g. Astra, Eutelsat or Turksat
- Ideal for HD, HD+ Full HD, Ultra HD UHD 4K and 8K
- With four fixed outputs (HL/VL/HH/VH)
- Weatherproof owing to the extendable weather protection case
Scope of delivery
- 1 Universal-Quattro-LNB
- 1 operating instructions
