Hama SAT multiswitch
EAN:
Part number:
Item no:
Highlights & Details

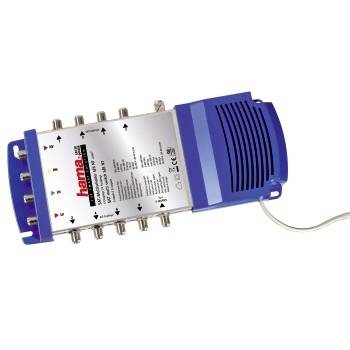

Hama "Lypsi SE" SAT switch component
- Multi-switch for connecting up to eight receivers to one LNB
- With color coding for an easy allocation of the cable when connecting the LNB to the multi-switch
- Quadswitch-compatible with Quad and Quadswitch (22 KHz signal is delivered to the LNB)
- With switched-mode power supply for LNB voltage supply
- Inputs 4x SAT, 1x terrestrial
- Grounding: 1x clamping screw
- V/H: 14 V/18 V and 22 kHz switching signal
Technical specifications
- Product type
SAT multiswitch
- Factory colour
Silver
- Power consumption (ON)
18 W
- Transfer type
Corded
- UKCA
yes
- Internal
no
- Package weight
799 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820291 Hama SAT multiswitch
Description
Multi-switch for connecting up to eight receivers to one LNB. Reverse channel-compatible connection for interactive applications via terrestrial input. Connection to Quadswitch-LNB is possible. Particularly high decoupling for improved interference resistance on the signal inputs With color coding for an easy allocation of the cable when connecting the LNB to the multi-switch. Quad and quad switch compatible (22 KHz signal is delivered to the LNB). With switched-mode power supply for LNB voltage supply. Inputs 4x SAT, 1x terrestrial Grounding: 1x clamping screw. V/H: 14 V/18 V and 22 kHz switching signal
This text is machine translated.
This text is machine translated.
Features
- Reverse channel-compatible connection for interactive applications such as Internet or telephone via cable modem
- Particularly low energy consumption
- Reverse channel-compatible connection for interactive applications such as DSL via satellite
- Reverse channel-compatible connection for interactive applications via terrestrial input
- Connection to Quadswitch-LNB is possible
- Particularly high decoupling for improved interference immunity in signal inputs/outputs
- Particularly high decoupling for improved interference resistance on the signal inputs
Scope of delivery
- 1 SAT multi-switch "Lypsi SE"
Hints
You have only one SAT-reflector, but several receivers? Your wife doesn't want to watch football, the daughter really wants to see her favorite soap? The multi-switch solves all the problems: It distributes the signals so that everyone can watch, WAS he wants.
