Hama TV wall mount Swivelling Built-in level
EAN:
Part number:
Item no:
Highlights & Details

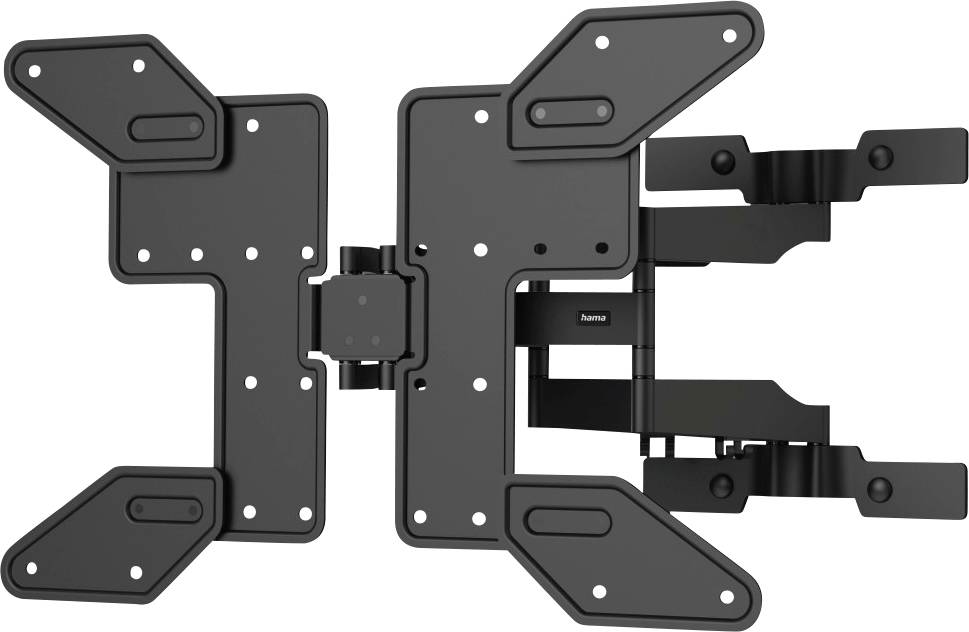

Hama TV wall mount
- Holder type: Swivelling

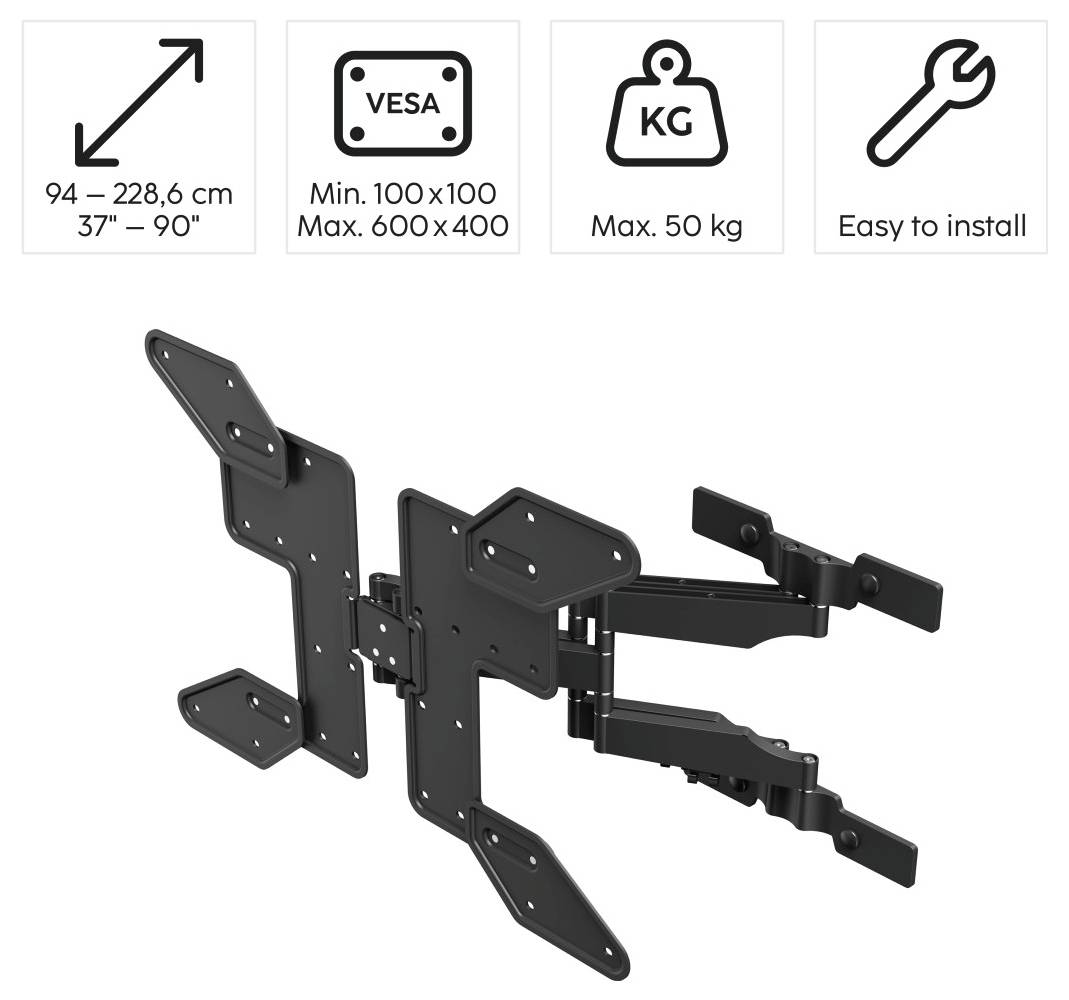

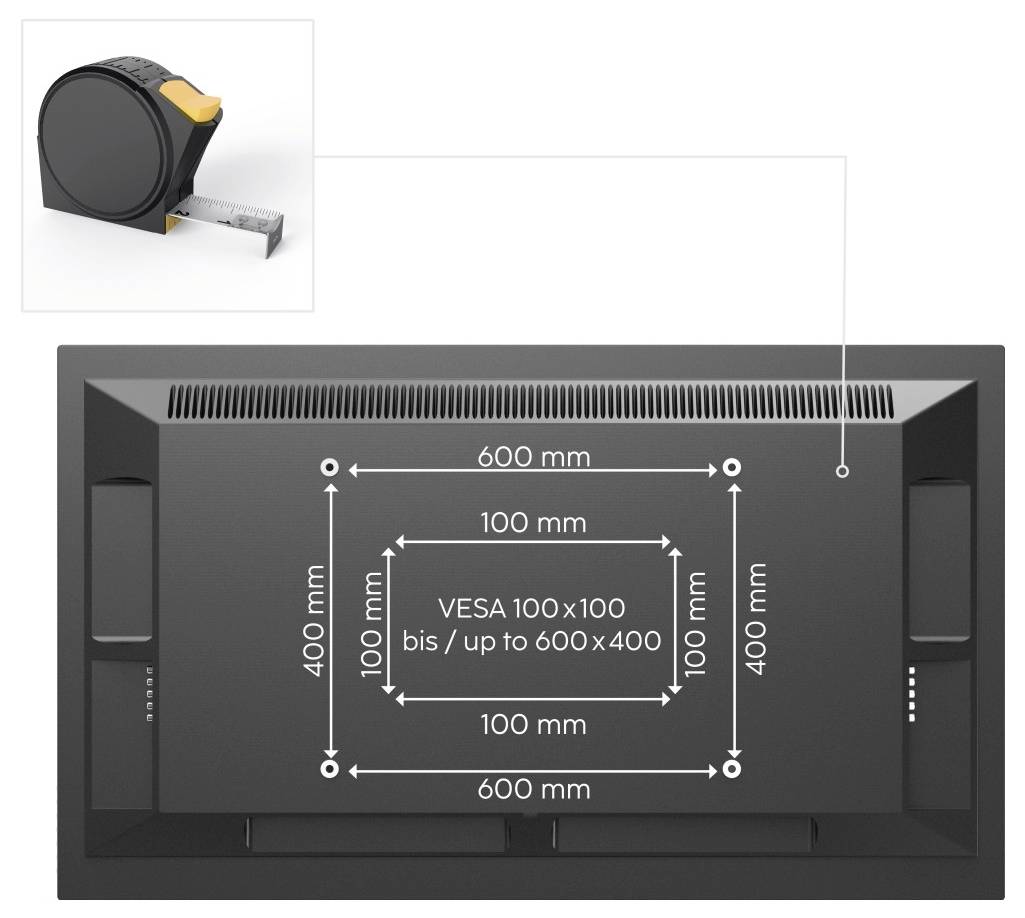

- Supports VESA standards up to
- Load capacity (max.) 50 kg
Technical specifications
- Minimum screen size: 94 cm (37")
- Maximum screen size: 2.29 m (90")

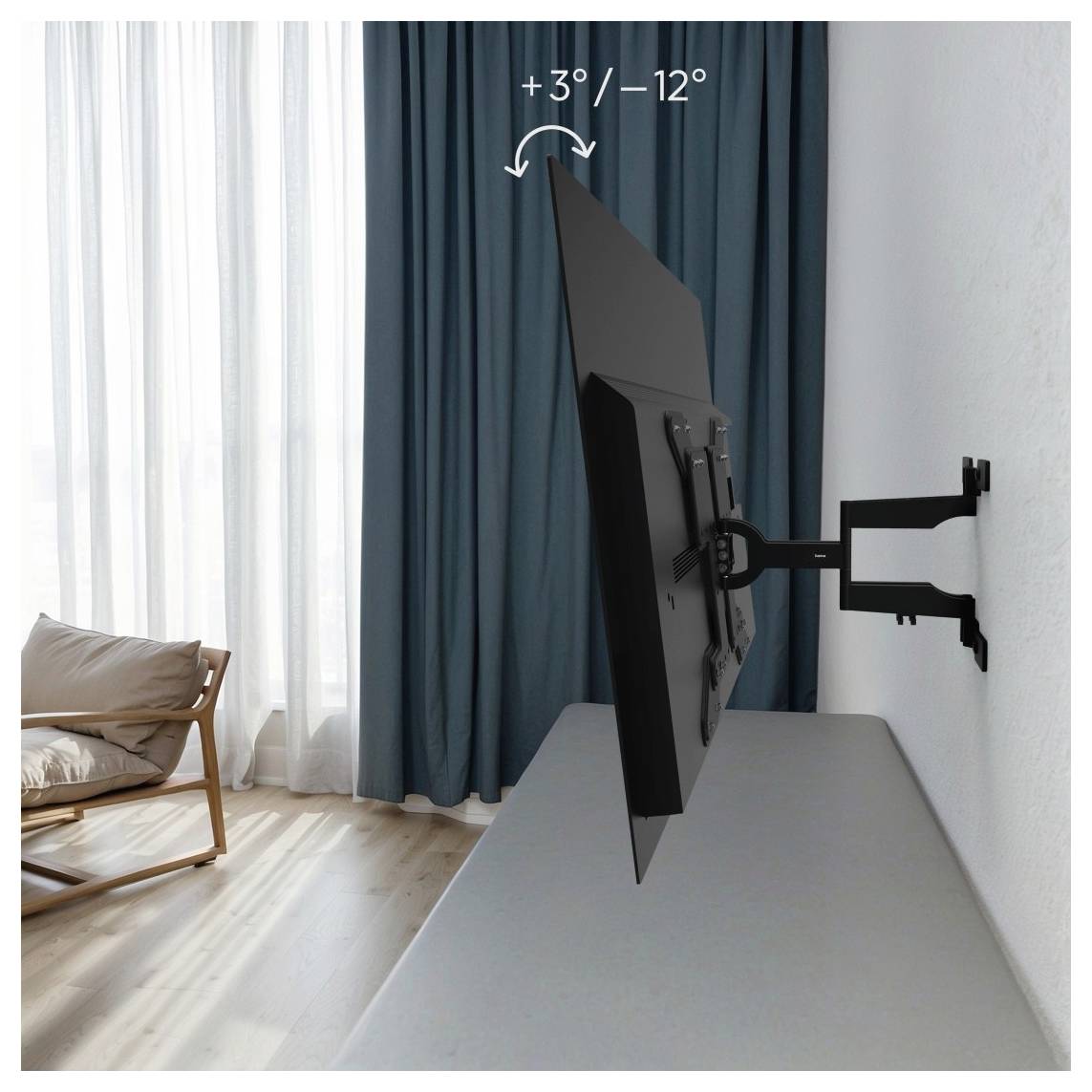

- Tilt angle range -12 - 3°
- Product type
TV wall mount
- Holder type
Swivelling
- Features
Built-in level
- Max. load capacity
50 kg
No
600 x 400 mm
- Rotation
6°
- Tilt range (bottom)
12°
- Tilt range (top)
3°
- Swivel range (left)
60°
- Swivel range (right)
60°

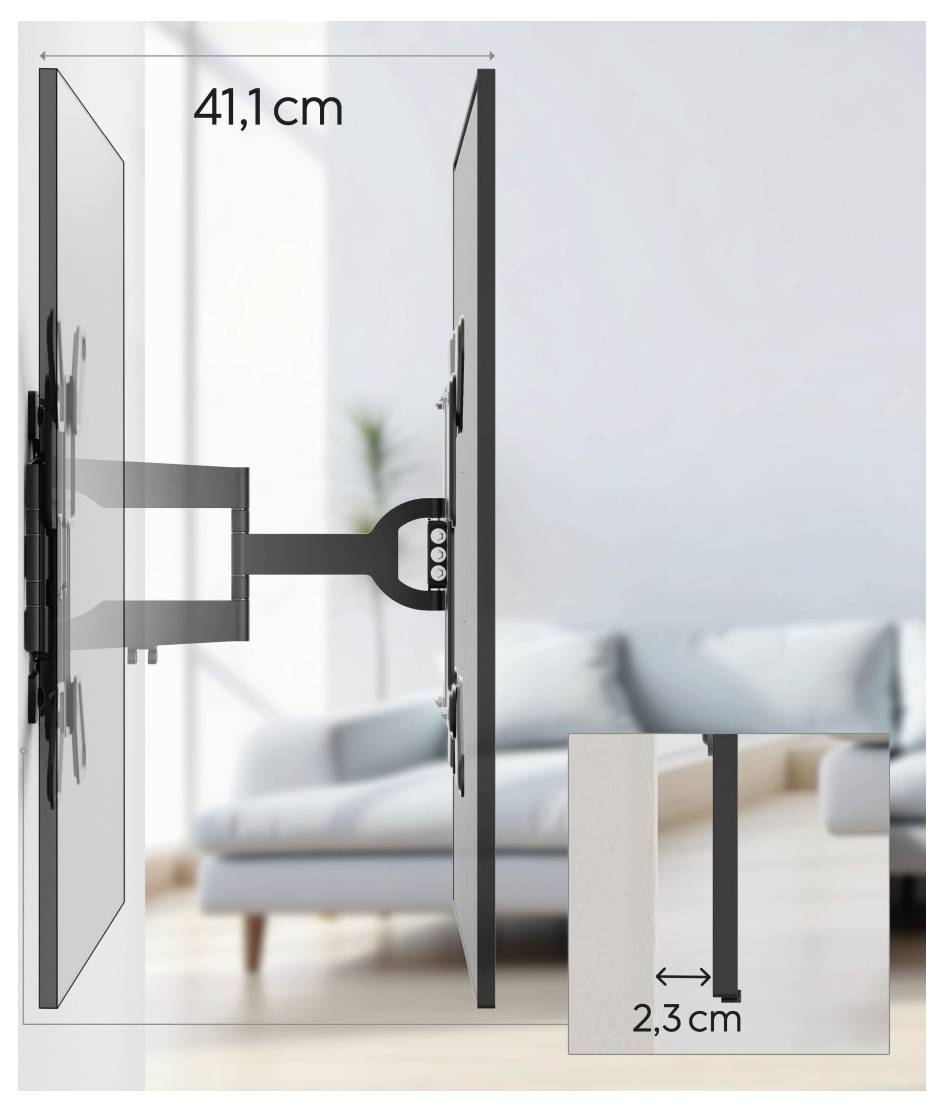

- Distance to wall (min.)
2.3 cm
- Distance to wall (max.)
41.1 cm
- Width
660 mm
- Height
449 mm
- Factory colour
Black
- Material (details)
Aluminium
- Dim
(W x H) 660 mm x 449 mm
- Supported monitors
1

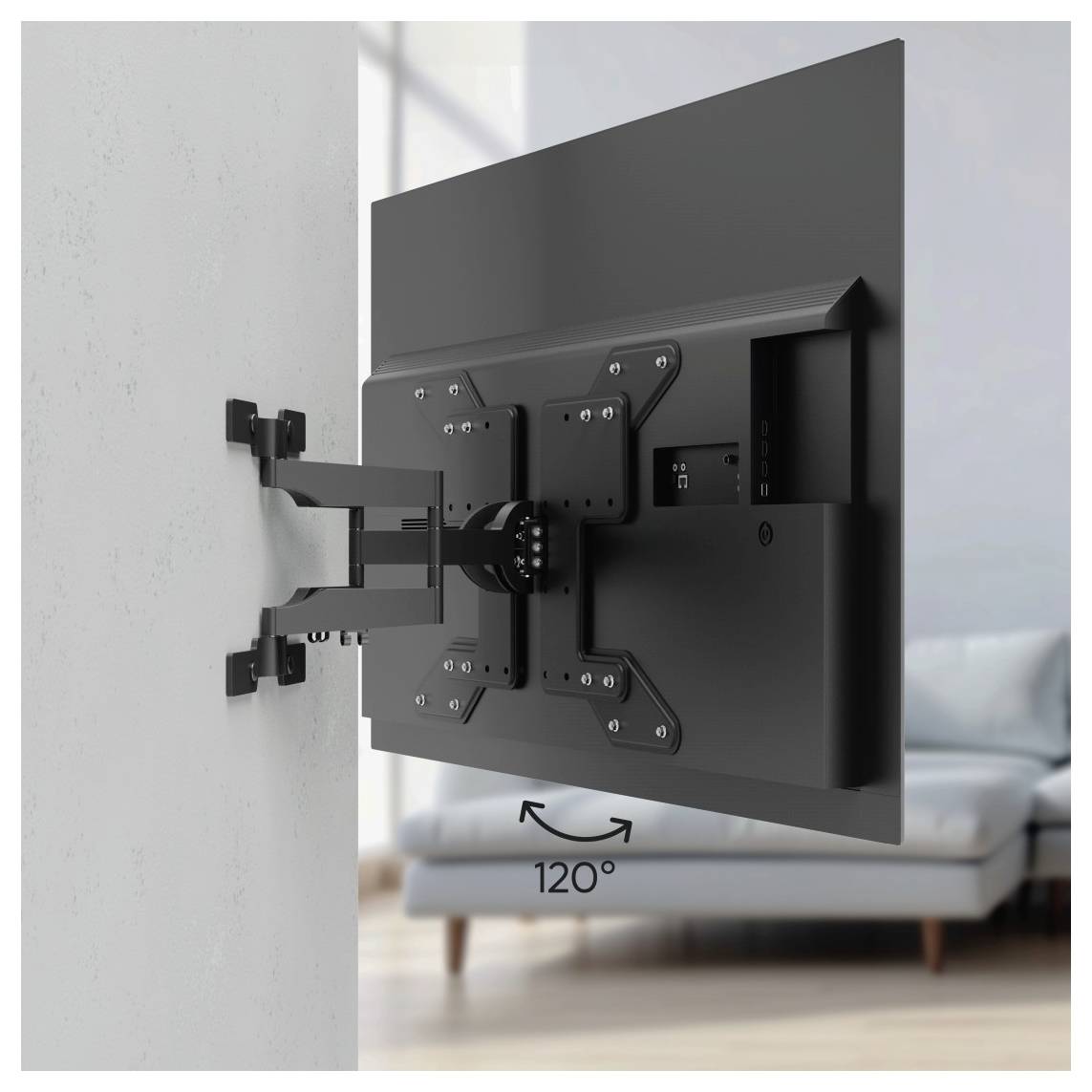

- Swivel angle
120°
- Quantity per pack
1 Stück(e)
- Cable management
yes
- Rotating
yes
- Number of joints
3
- Distance to the wall (max)
41.1 cm
- Distance to the wall (min)
2.3 cm
- Swivelling
yes
- Mounting kit
yes
- Tilt adjustment
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436996 Hama TV wall mount Swivelling Built-in level
Description
Intense colors, precise details - and then the impressive OLED TV is right in the area? Create a place worthy of it: With this ultra-thin TV mount the OLED TV set can unfold its full effect - invisible holder, full mobility.
Quality-tested
Play it safe with our proven safety: Demanding stress, stability and function tests guarantee high quality standards
Construction for OLED TVs
Innovative design: The wall mount design is tailored to the VESA standard of OLED TVs, so that the adapter plate is flush with the housing
Extremely flat profile for small wall distance of 2.3 cm
Aesthetic and jointed: With its low wall distance of 2.3 cm, the TV holder fits inconspicuously into the living world with its ultra-flat profile and guarantees full mobility in all directions
Fully flexible television mounting bracket
For the perfect viewing angle: This television mount adapts to your individual needs – whether swiveled, inclined, extendable – in this way Home Entertainment works
Up to 90" and 50 kg
Extremely durable: Stable design with double arm enables a secure mounting of TV-sets with a weight of up to 50 kg and screen size up to 90 inch
Integrated cable management
For a decent living ambience: The cable management guides the cables tidily behind the TV-set – this avoids the cable mess and is space-saving, in addition the cable routing protects the cable against cable breakage through strain relief
Drilling template for marking bore holes
Thanks to the drilling template, easy marking of the drilling holes without having to lay the holder at the wall
Inclusive mounting material
All there is: With the versatile mounting accessories including high-quality Fischer-dowels you can start immediately
This text is machine translated.
Quality-tested
Play it safe with our proven safety: Demanding stress, stability and function tests guarantee high quality standards
Construction for OLED TVs
Innovative design: The wall mount design is tailored to the VESA standard of OLED TVs, so that the adapter plate is flush with the housing
Extremely flat profile for small wall distance of 2.3 cm
Aesthetic and jointed: With its low wall distance of 2.3 cm, the TV holder fits inconspicuously into the living world with its ultra-flat profile and guarantees full mobility in all directions
Fully flexible television mounting bracket
For the perfect viewing angle: This television mount adapts to your individual needs – whether swiveled, inclined, extendable – in this way Home Entertainment works
Up to 90" and 50 kg
Extremely durable: Stable design with double arm enables a secure mounting of TV-sets with a weight of up to 50 kg and screen size up to 90 inch
Integrated cable management
For a decent living ambience: The cable management guides the cables tidily behind the TV-set – this avoids the cable mess and is space-saving, in addition the cable routing protects the cable against cable breakage through strain relief
Drilling template for marking bore holes
Thanks to the drilling template, easy marking of the drilling holes without having to lay the holder at the wall
Inclusive mounting material
All there is: With the versatile mounting accessories including high-quality Fischer-dowels you can start immediately
This text is machine translated.
Features

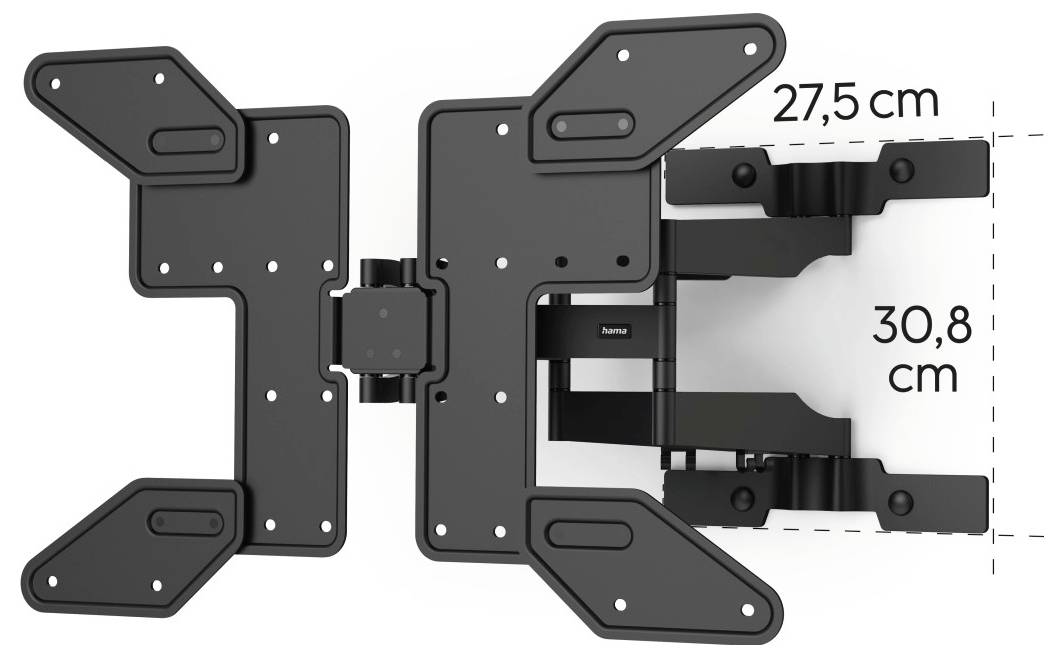

- Colour: Black, color: Black, quality: Ultraslim, number of joints: 3, design: OLED TV, Hole dimension of attachment: up to M8, material: cast aluminum, max. Swivel range 120 °, max. Bearing load: 50 kg, inclination +/-: 3 / 12 °, rotation: 6 °, wall distance max.: 41.1 cm, wall distance min.: 2.3 cm, additional functions: Drilling template, double arm, cable manager, spirit level, Outside width: 66 cm, outside dimension height: 44.9 cm, mounting plate width: 27.5 cm, mounting plate length: 44.98 cm, screen size: 100.3 cm (39.5"), 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 145 cm (57"), 147 cm (58"), 152 cm (60"), 155 cm (61"), 161 cm (63"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 180 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 208 cm (82"), 213 cm (84"), 216 cm (85"), 218.4 cm (86"), 223.52 cm (88"), 228.6 cm (90"), 94 cm (37"), 97 cm (38"), 99 cm (39"), VESA standard 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300. 300 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400. VESA (from-to): 100x100 - 600x400, Application area: Private, recommended screen size: 94 - 229 cm (37" - 90"), recommended screen size max.: 228.6 cm (90"), recommended screen size min.: 94 cm (37"), suitable for: TV, variant: extendable/tilt/swivel
Scope of delivery
- - 1 TV wall mount
- - Mounting material including Fischer plugs
- - 1 Spirit-level
- - 1 drilling template
- - 1 installation instructions
