Hama TV wall mount Swivelling Theft protection
EAN:
Part number:
Item no:
Highlights & Details
Hama TV wall mount
- Holder type: Swivelling
- Supports VESA standards up to
- Load capacity (max.) 40 kg
Technical specifications
- Minimum screen size: 94 cm (37")
- Maximum screen size: 2.03 m (80")
- Tilt angle range -10 - 5°
- Product type
TV wall mount
- Holder type
Swivelling
- Features
Theft protection
- Max. load capacity
40 kg
No
600 x 400 mm
- Rotation
8°
- Tilt range (bottom)
10°
- Tilt range (top)
5°
- Distance to wall (min.)
8.1 cm
- Distance to wall (max.)
55.1 cm
- Width
785.1 mm
- Height
440 mm
- Factory colour
Black
- Material (details)
Steel
- Weight
40 kg
- Dim
(W x H) 785.1 mm x 440 mm
- Supported monitors
1
- Swivel angle
180°
- Quantity per pack
1 Stück(e)
- Accepts padlock
yes
- Rotating
yes
- Number of joints
3
- Anti-theft function
yes
- Distance to the wall (max)
55.1 cm
- Distance to the wall (min)
8.1 cm
- Swivelling
yes
- Mounting kit
yes
- Tilt adjustment
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3437002 Hama TV wall mount Swivelling Theft protection
Description
Quality-tested
Play it safe with our proven safety: Demanding stress, stability and function tests guarantee high quality standards
Fully flexible television mounting bracket
For the perfect viewing angle: This television mount adapts to your individual needs – whether swiveled, inclined, extendable – in this way Home Entertainment works

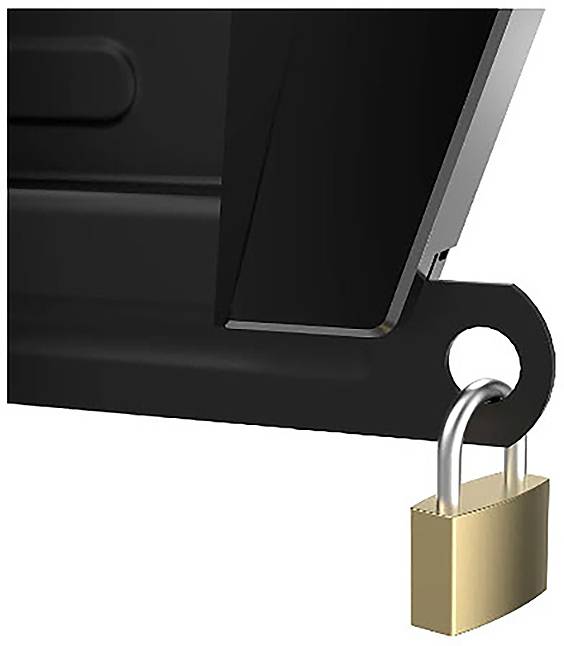

Special anti-theft device
With the anti-theft device you can secure the TV with a padlock and block the unlocking system
Uncomplicated unlocking
The mechanism disengages with a train at the release cords and the TV can be removed
Integrated cable management
For a decent living ambience: The cable management guides the cables tidily behind the TV-set – this avoids the cable mess and is space-saving, in addition the cable routing protects the cable against cable breakage through strain relief
Later alignment
If the TV wall holder was mounted slightly tilted, the position of the TV can be corrected horizontally by a few degrees later
Easy-fix system
Easy-fix system for simple and continuous TV adjustment
Inclusive mounting material
All there is: With the versatile mounting accessories including high-quality Fischer-dowels you can start immediately
This text is machine translated.
Play it safe with our proven safety: Demanding stress, stability and function tests guarantee high quality standards
Fully flexible television mounting bracket
For the perfect viewing angle: This television mount adapts to your individual needs – whether swiveled, inclined, extendable – in this way Home Entertainment works
Special anti-theft device
With the anti-theft device you can secure the TV with a padlock and block the unlocking system
Uncomplicated unlocking
The mechanism disengages with a train at the release cords and the TV can be removed
Integrated cable management
For a decent living ambience: The cable management guides the cables tidily behind the TV-set – this avoids the cable mess and is space-saving, in addition the cable routing protects the cable against cable breakage through strain relief
Later alignment
If the TV wall holder was mounted slightly tilted, the position of the TV can be corrected horizontally by a few degrees later
Easy-fix system
Easy-fix system for simple and continuous TV adjustment
Inclusive mounting material
All there is: With the versatile mounting accessories including high-quality Fischer-dowels you can start immediately
This text is machine translated.
Features
- Colour: Black, color: Black, quality: Professional, number of joints: 3, design: TV, Hole dimension of attachment: up to M8, material: steel, Max. Swivel range 180 °, max. Bearing load: 40 kg, inclination +/-: 5 / 10 °, rotation: 8 °, wall distance max.: 55.1 cm, wall distance min.: 8.1 cm, outside dimension width: 78.51 cm, outside dimension height: 44 cm, mounting plate width: 48.5 cm, mounting plate length: 24.6 cm, screen size: 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 145 cm (57"), 147 cm (58"), 152 cm (60"), 155 cm (61"), 161 cm (63"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 180 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 94 cm (37"), 97 cm (38"), 99 cm (39"), VESA standard: 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 600 x 400, VESA (from-to): 300x200 – 600x400, Application range: Public, Recommended screen size: 94 - 203 cm (37" - 80"), Recommended screen size max.: 203 cm (80"), Recommended screen size min.: 94 cm (37"), Suitable for: TV, Variant: Tilt/Swivel
Scope of delivery
- - 1 TV wall mount
- - Mounting material including Fischer plugs
- - 1 Spirit-level
- - 1 installation instructions
