Hammond Electronics 1556CWH Universal enclosure 120 x 80 x 45 ABS plastic flame retardant White 1 pc(s)
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
ABS plastic
IP rating
IP54
Width
80 mm
Height
45 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
General purpose FRABS housing, 120 x 80 x 45
Our service for you
Technical specifications
- Product type
Universal enclosure
- Material
ABS plastic
IP54
- Factory colour
White
- Length
120 mm
- Width
80 mm
- Height
45 mm
- Content
1 pc(s)
- Dim
(L x W x H) 120 x 80 x 45 mm
- RoHS-compliant
Yes
- Material properties
flame retardant
- Type
1556CWH
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2823816 Hammond Electronics 1556CWH Universal enclosure 120 x 80 x 45 ABS plastic flame retardant White 1 pc(s)
Description

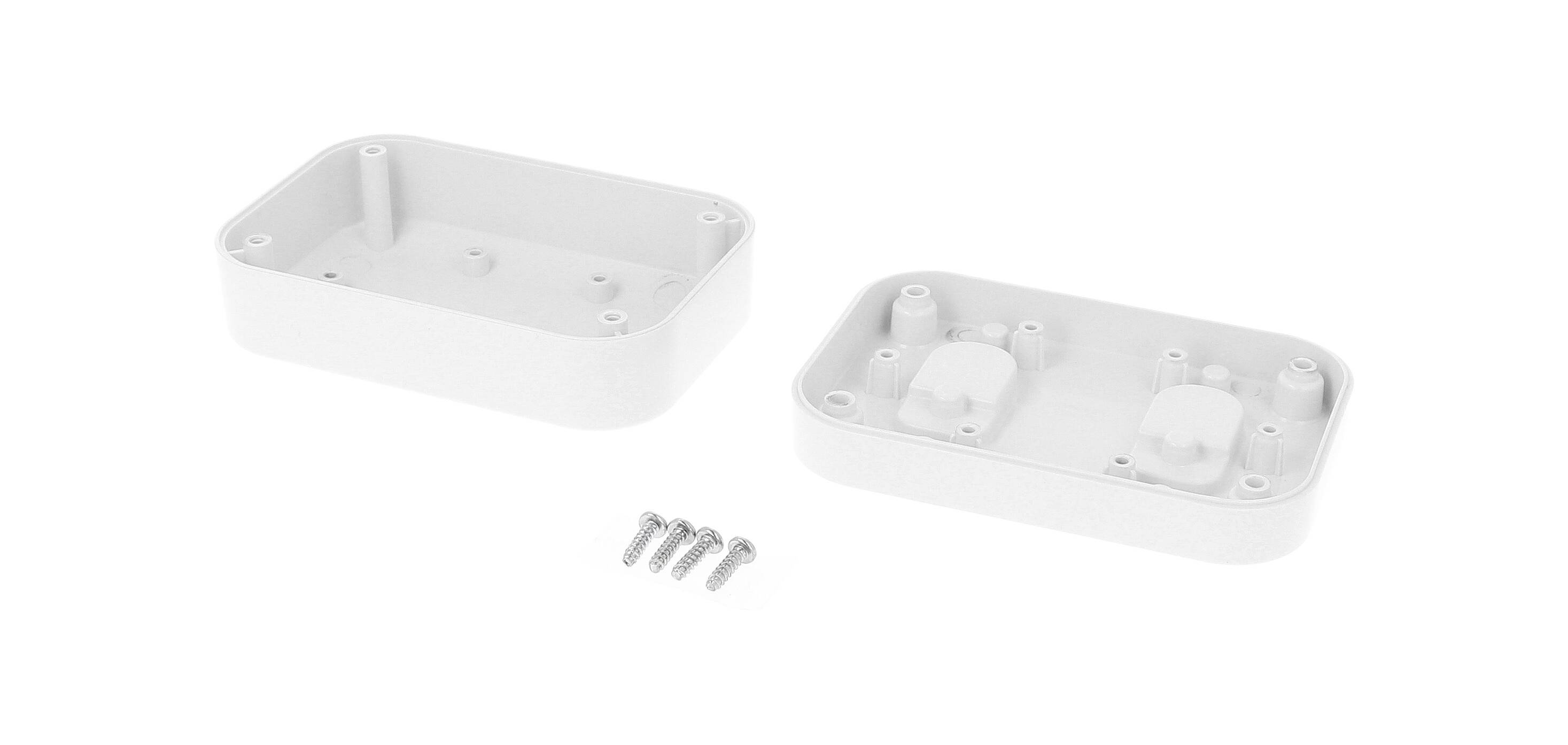

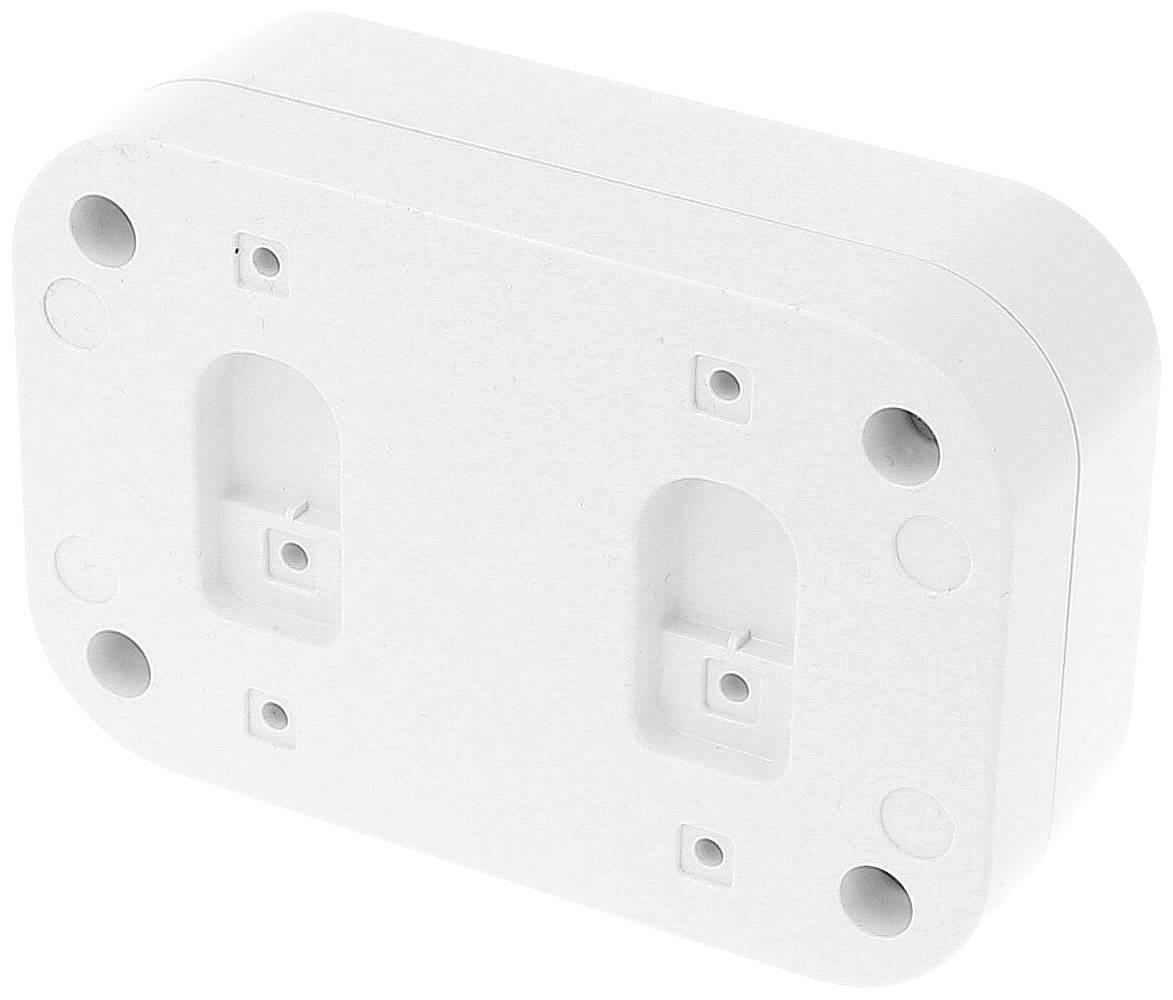

Ideal for mounting printed circuit boards, IoT devices and other small electronics. Can be used in a table configuration with rubber feet (included) or in two different wall mounting configurations with the wall mounting base kit (sold separately). Rounded corners and face make for a more modern look. The overlapping design provides protection against the ingress of dust and spray. Available in black, gray or white flame retardant ABS plastic with light satin structure. Made of flame-retardant material, which carries a flammability class of UL94-V0. For indoor use. Designed to meet IP54. Lid fittings and 4x rubber feet included in the housing. The cover is secured with high strength #6 x 1/2" self-tapping plastic screws.
