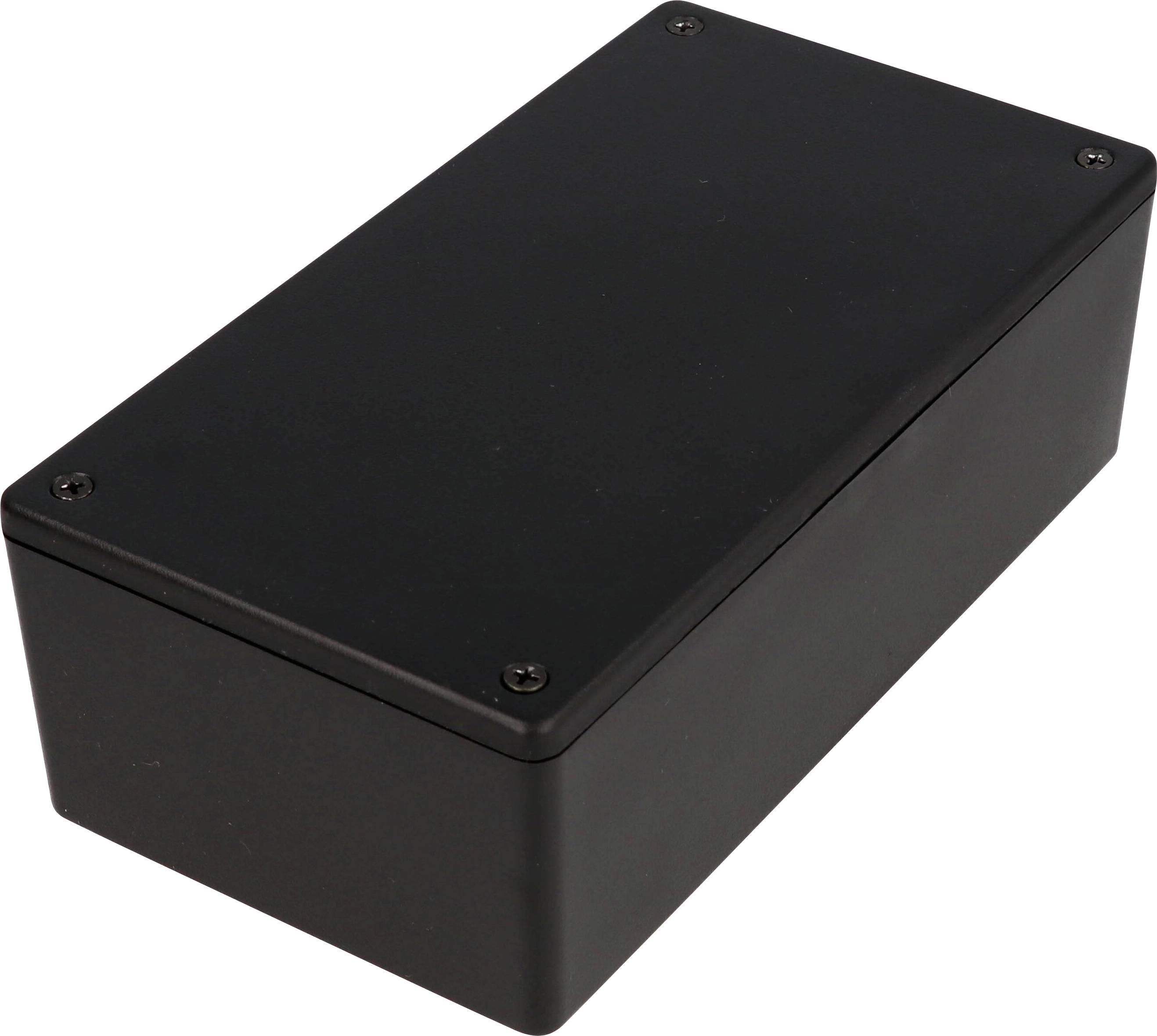

Buy Hammond Electronics 1591XXUSFLBK Casing 123 x 123 x 57 ABS plastic Black 1 pc(s)

Product type

Casing

Material

ABS plastic

IP rating

IP54

Width

123 mm

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Ideal for the horizontal mounting of conducting boards.
The inner sides of the housing are smooth and allow easy connector assembly except for the largest 1591XXF housing. The 1591XXF case is a universal case with printed circuit board spacers in the cover and housing as well as card guides.
Protects against dust and water splashes.
Conforms IP54.
Cover and housing are equipped with integrated spacers for the circuit board.
The standard models in black and gray consist of easy-to-process, flame-retardant ABS plastic with the UL flammability class UL94 V-0.
The transparent-blue and all economy versions are made of non-flame-retardant universal plastic.
In the standard versions, the cover is fixed with M3 x 10 mm crosshead screws, which are screwed into integrated brass sockets. Ideal for applications with repeated mounting and disassembly.
The economy versions are mounted in full plastic posts using self-tapping screws.
Black and transparent blue housings are supplied with black screws, gray housings with nickel-plated screws.
This text is machine translated.
