Handheld Microphone transmitter Monacor ATS-80T Transfer type (details):Digital incl. clip
EAN:
Part number:
Item no:
Highlights & Details

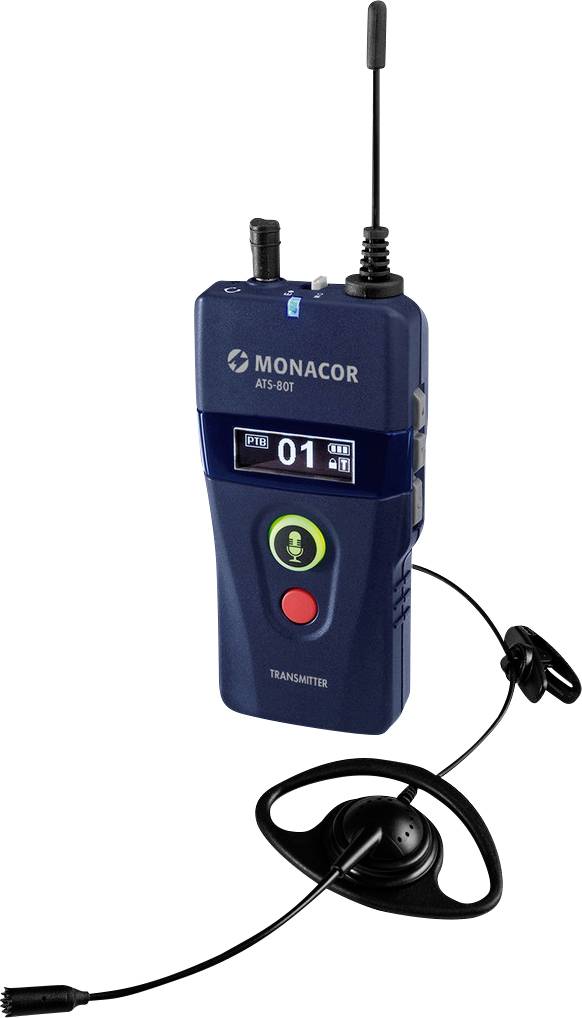

MONACOR ATS-80T transmitter
- Also suitable as a "tour guide system" for applications in which a 2-way communication is required, such as Trainings, lectures with questions and answers and group or plant tours
- High interference resistance through digital transmission
- Frequency range optimized for voice applications
- Up to 42 different channels can be operated in parallel without interference
Technical specifications
- Permissible operating temperature: 0-40 °C.
- Transmission power ≤ 20 mW/≤ 10 mW
- Range: 100 m
- Power supply transmitter 2 x 1.2 V AA NiMH rechargeable batteries (not included)
- Product type
Microphone transmitter
- Type
Handheld
- Transfer type
Digital
- Frequency response
823-832 and 863-865 MHz
- Features
incl. clip
- On/off switch
yes
- Weight
53 g
- Width
47 mm
- Height
97 mm
- Length
35 mm
- Dim
(L x W x H) 35 x 47 x 97 mm
- Interfaces
Headphone/mic combo jack (3.5 mm)
Audio line in
- Frequency
823 - 832 MHz
863 - 865 MHz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2336004 Handheld Microphone transmitter Monacor ATS-80T Transfer type (details):Digital incl. clip
Information
Information 2336004 Handheld Microphone transmitter Monacor ATS-80T Transfer type (details):Digital incl. clip
Description
42-channel digital PLL language transmission system, 823-832 and 863-865 MHz
This text is machine translated.
This text is machine translated.
Features
- 3 different operating modes lead, teaching and discussion for various applications
- Integrated microphone, adjustable gain
- Additional earphone microphone is supplied
- Audio line input via 3.5-mm stereo jack socket
- High contrast OLED display
- Connections: 3.5-mm jack (microphone/headset), 3.5-mm jack (line in)
- Battery status display
- Priority assignment
- Alarm function
- Talk/mute function
- Call button
- Channel lock
- Full duplex communication
- Presence belt
- clip
- Half cord
Hints
Power supply battery is not included.
There are restrictions or requirements in the EU!
The radio systems in the frequency range, 863 MHZ to 865 MHz and 2.4 GHz have the general approval and are free of registration and fees in the EU!
The radio systems in the frequency range 506 MHz to 542 MHz, 518 MHz to 542 MHz, 672 MHz to 694 MHz possess the general approval according to the Vfg. 34/2020 and are free of registration and fees in Germany! All radio equipment has been tested by a notified body and is approved in the EU in accordance with THE RED Directive, However, a frequency allocation for the systems in the frequency range 740 MHz to 776 MHZ, 823 MHz to 832 MHz and 1.8 GHz for the respective area in which the radio is to be operated must be requested from the respective national authority. There are restrictions or requirements in the EU!
In Germany, the frequency allocation must be requested from the relevant branch of the Federal Network Agency.
The declaration of conformity can be found on the Internet on the manufacturer's website.
