Handheld Speech microphone Omnitronic FAS Transfer type (details):Radio
EAN:
Part number:
Item no:
Highlights & Details

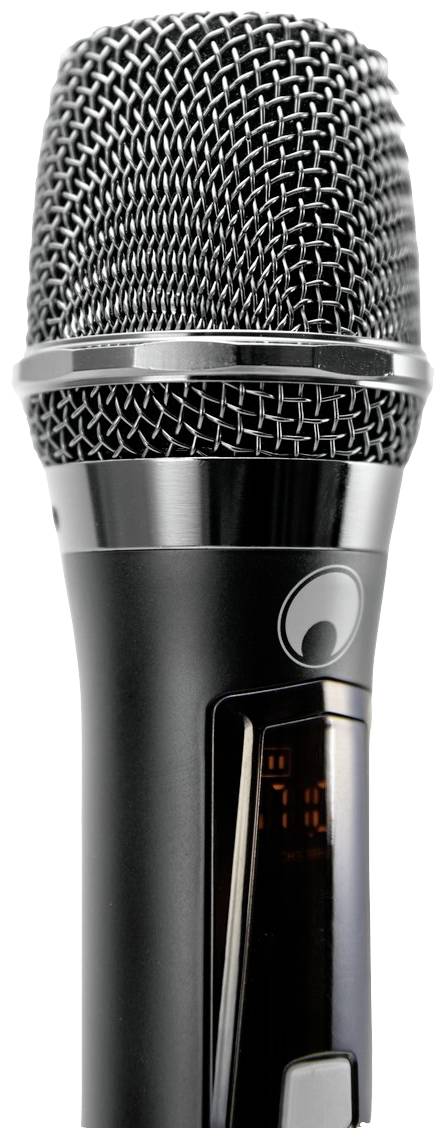

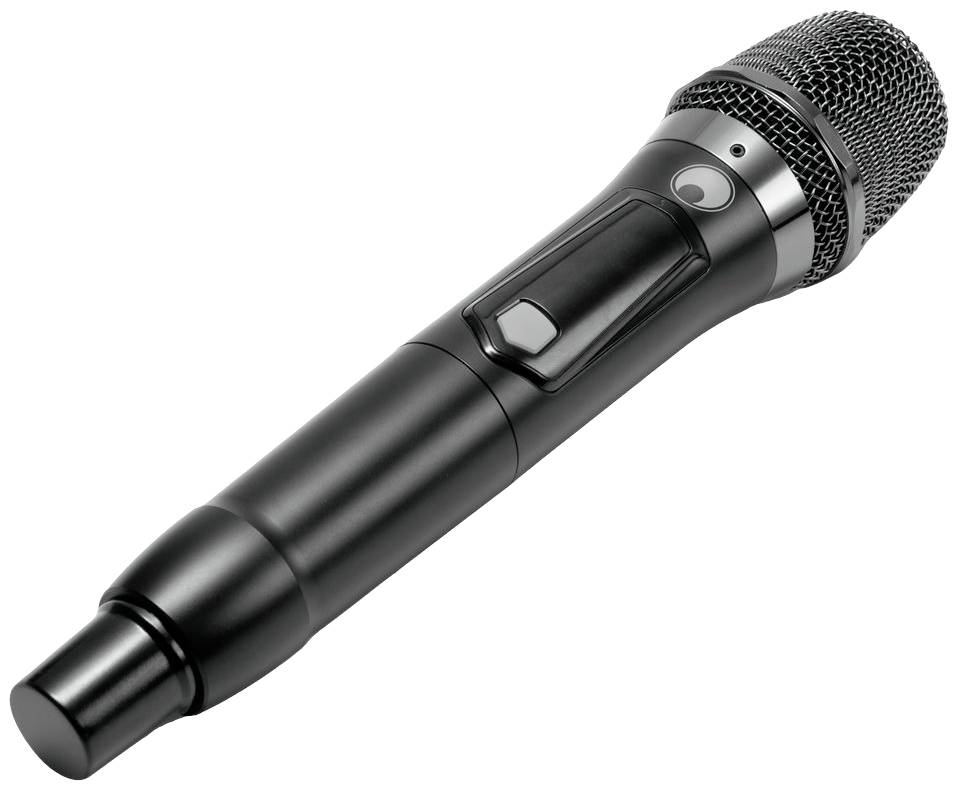

Omnitronic FAS dynamic radio microphone 660-690MHz
- Dynamic hand-held microphone for the FAS-TWO receiver
- 40 frequencies can be set
- UHF 660 – 690 MHz
Technical specifications
- Product type
Speech microphone
- Type
Handheld
- Transfer type
Radio
- Characteristics
Cardioid/unidirectional
- Weight
290 g
- Length
255 mm
- (Ø)
53 mm
- Dim
(Ø x L) 53 mm x 255 mm
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131345 Handheld Speech microphone Omnitronic FAS Transfer type (details):Radio
Description
Dynamic hand-held microphone for the FAS-TWO receiver High noise immunity and excellent sound quality through digital transmission.
This text is machine translated.
This text is machine translated.
Features
- Quick pairing at the touch of a button
- 2 channel banks, each with 20 adjustable frequencies available
- Robust, ergonomic aluminum casing
- Directionality: Kidney
- Range of up to 30m at sight range
- UHF 660 - 690 MHz registered and uncharged in large parts of Europe
- Charging status indicator
- Power supply 3 V DC
- Electrical connection: Battery / rechargeable battery
- Battery: 2 x Mignon (AA) (not included in delivery)
- Material: Metallic
- Range: Up to 30m in visibility
- Modulation Pi/4 DQPSK
- 40 frequencies can be set
- In 2 groups: In 2 groups
- Capsule type: Dynamic
- Directionality: Kidney
- RF output power 10 mW

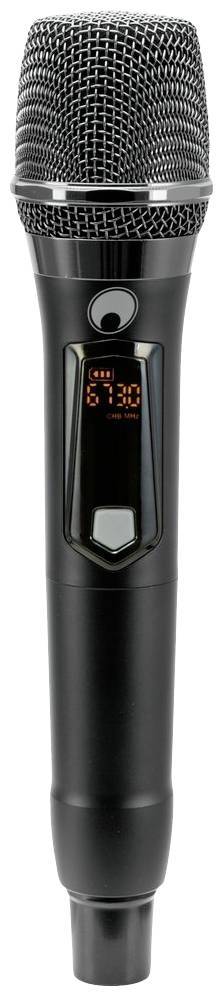

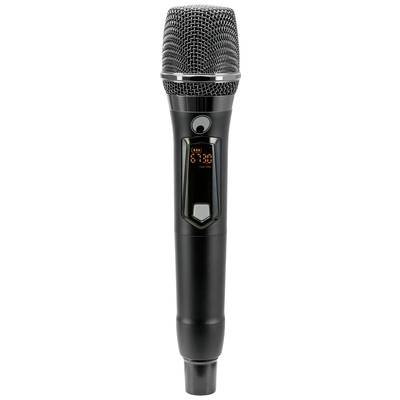

- Display: Frequency , Battery level indicator
- Switch: On/off switch
- Diameter: Ø 5.3 cm
Scope of delivery
- Transmitter
- User manual
- Declaration of Conformity
