Handheld Speech microphone Omnitronic VHF-101 Transfer type (details):Radio Switch
EAN:
Part number:
Item no:
Highlights & Details

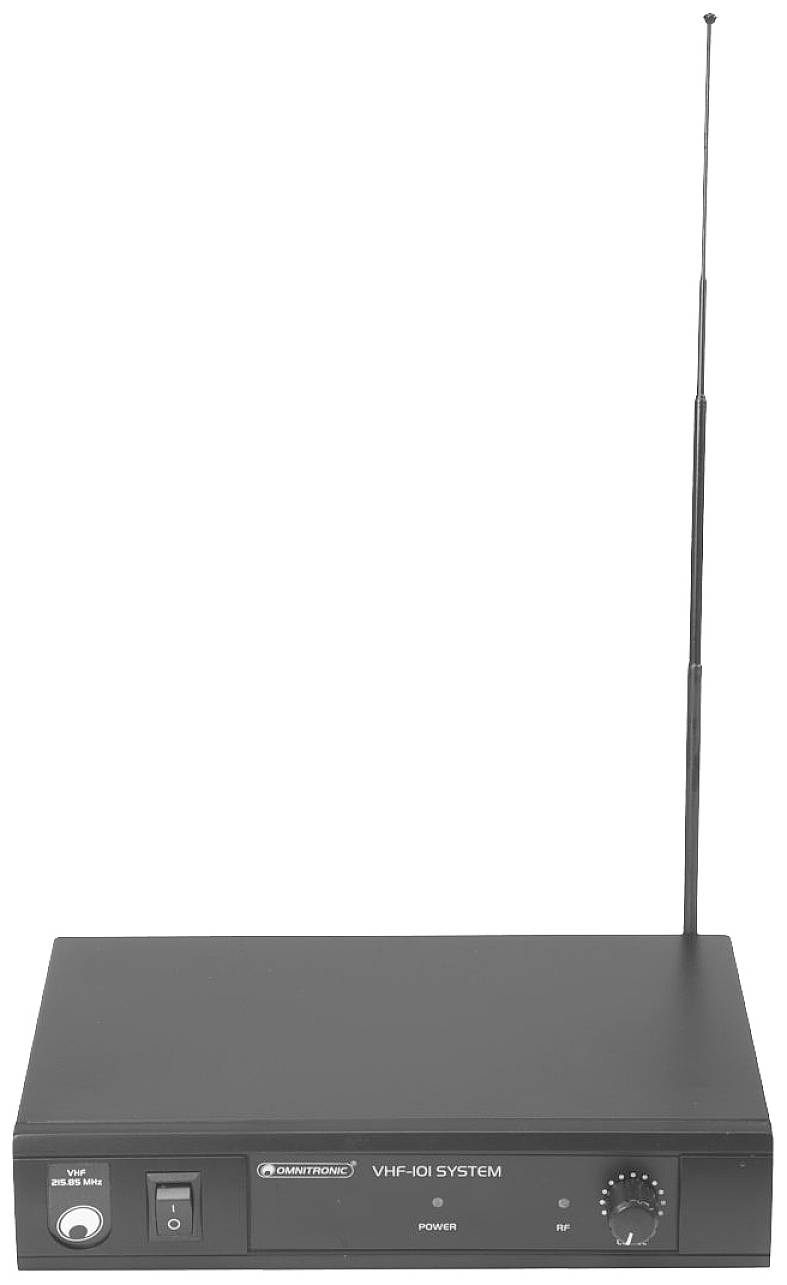

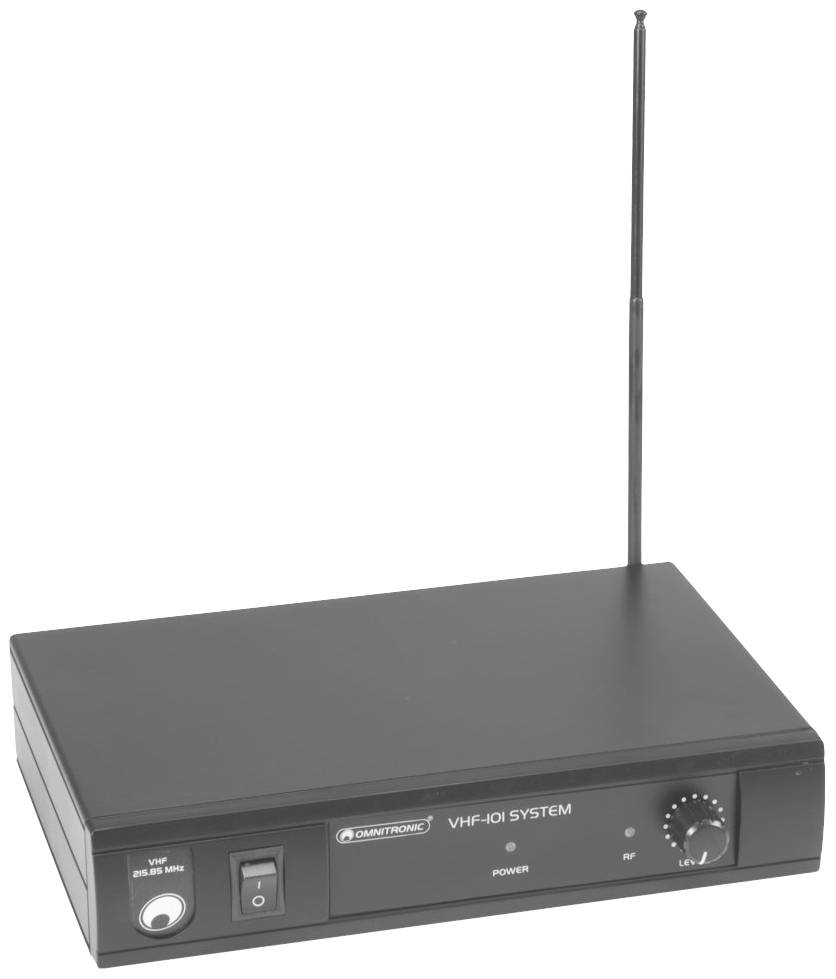

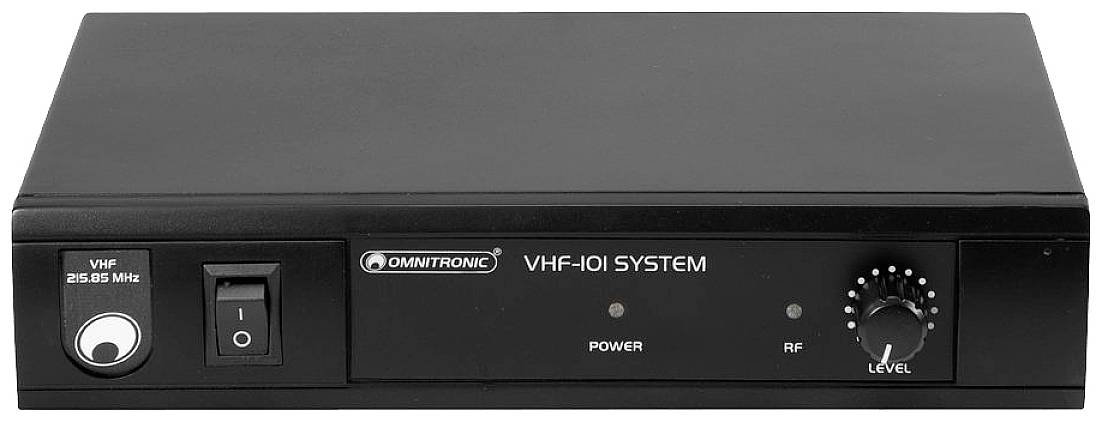

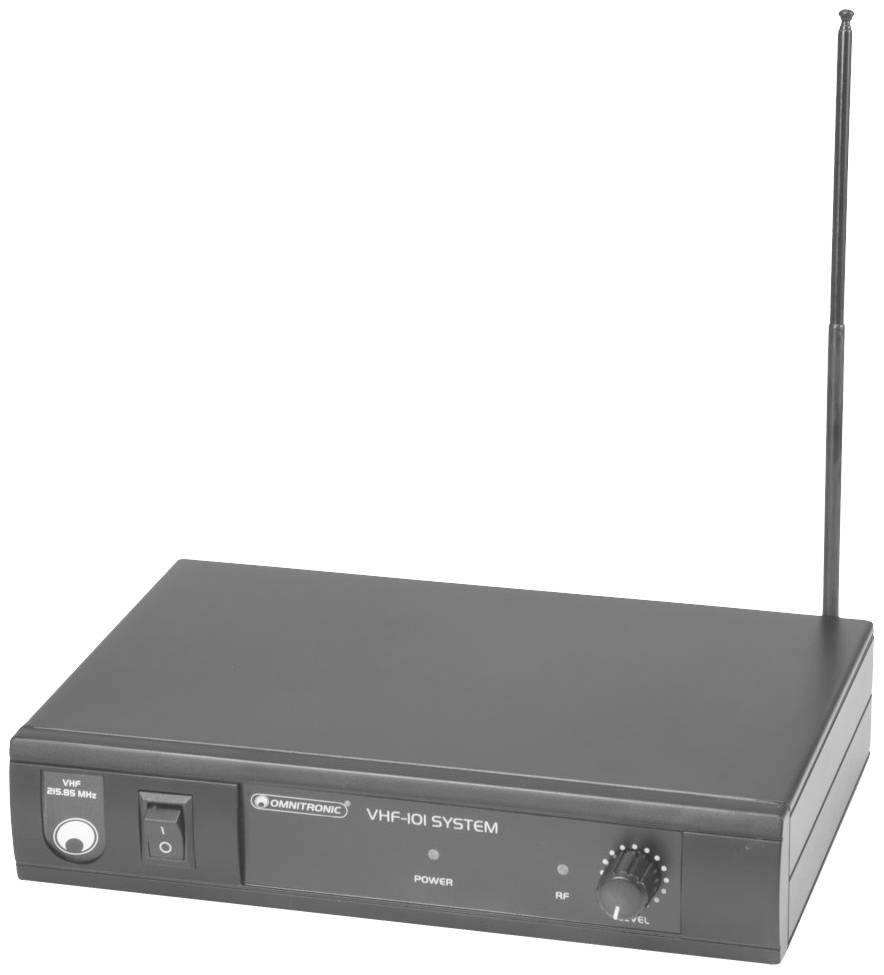

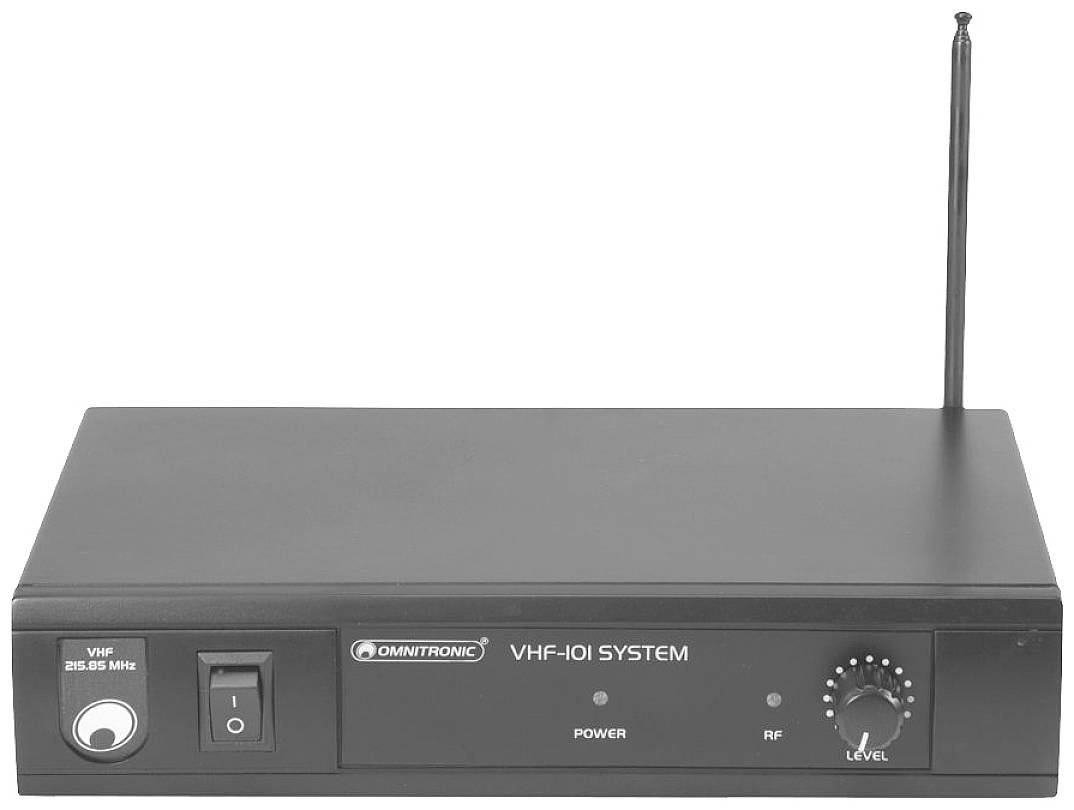

Omnitronic VHF-101 radio microphone system 214,35MHz
- The base unit and hand-held microphone use PLL technologyOperation with VHF fixed frequencyVolume controlXLR and 6.3 mm jack outputLED for operation and carrier signalHand-held microphone with mute function and color codingRegistration and fee free in the EU (please check country-specific)Directionality: KidneyRange of up to 30m at sight range
- This text is machine translated.
Technical specifications

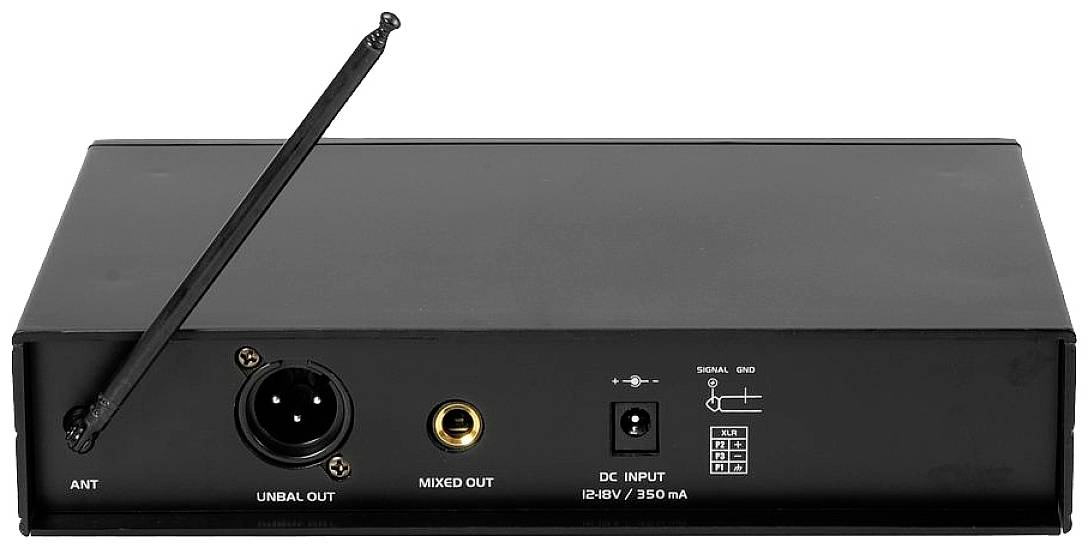

- Power supply 100-240 V AC 50/60 Hz; 12 V DCTotal connection value: Max. 5 WPower connection: Power feed via hollow plug (M) Installation version Power connection cable with plug-in power supply (included)Capsule type: DynamicConnections: Output: Microphone via 1 x 6.3-mm jack (unbal.); microphone via 1 x 3-pin XLRVHF bandCarrier frequency 214.350 MHzRF output power 10 mWRange : 30 m with visibilityMaterial: plasticMicrophone battery 2 x AA (not included)Microphone size: Length: 24 cm; diameter: Ø 5 cm
- Product type
Speech microphone
- Type
Handheld
- Transfer type
Radio
- Frequency response
80 - 12000 Hz
- Characteristics
Cardioid/unidirectional
- Features
Switch
- On/off switch
On/off switch; mute switch
- Weight
600 g
- Length
24 cm
- (Ø)
5 cm
- Dim
(Ø x L) 5 cm x 24 cm
- Interfaces
XLR
Audio stereo (6.3 mm jack)
- No. of transmitters
1
30 m
- Frequency
214 MHz
- UKCA
yes
Description

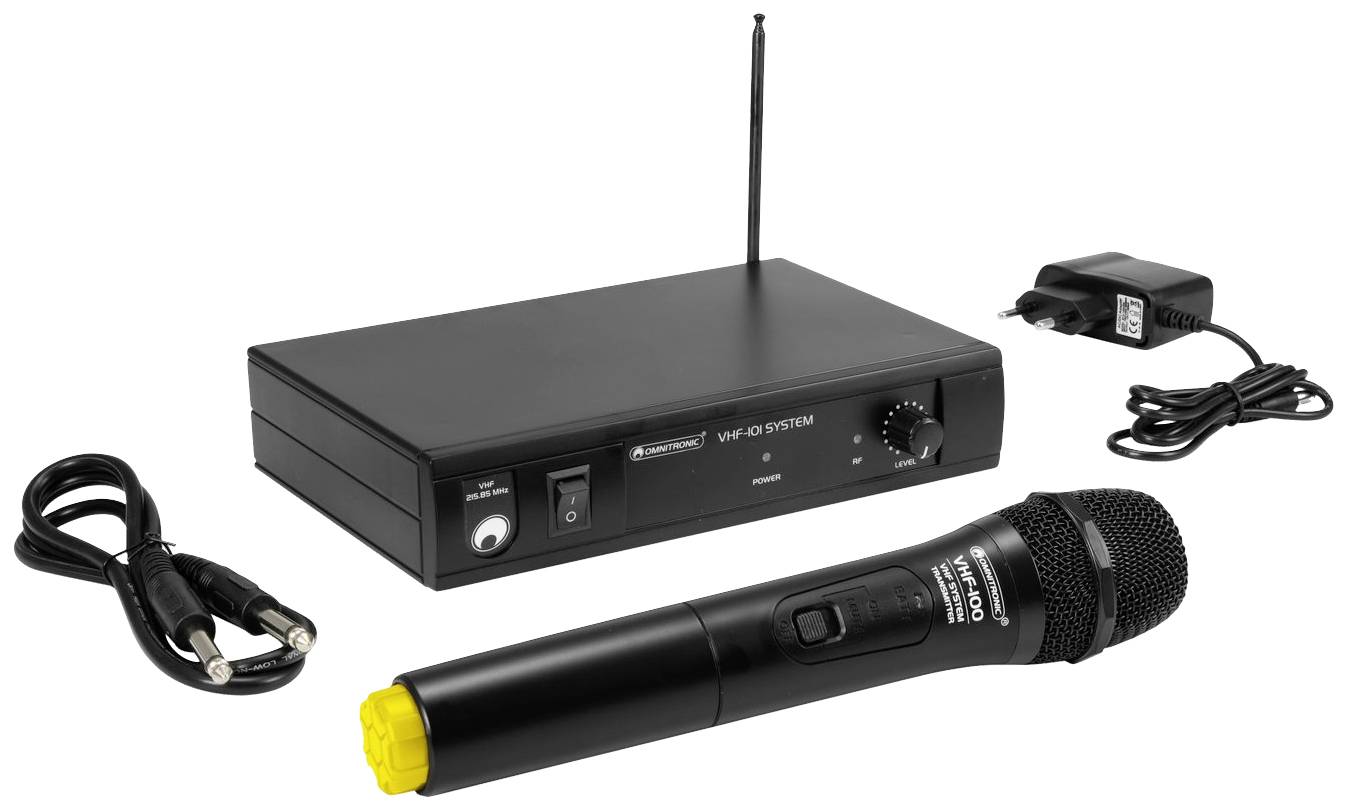

Scope of delivery
- 1 x receiver
- 1 x Microphone
Hints
Product images may differ!
