Handheld Wireless microphone set Omnitronic UHF E-FLEX 2 Transfer type (details):Radio Switch
EAN:
Part number:
Item no:
Technical specifications
- Type: Hand-held transmitter
- Protection class SK III.
- Number of channels: 2
- Range: Up to 30 m in line of sight
- UHF 863 – 865 MHz; UHF 823 – 832 MHz
- Modulation: FM
- 16 frequencies can be set; In 2 groups
- Receiver: Receiver
- Power supply 3V DC
- Total connection value: Max 3.1 W
- Power connection: Power feed via hollow plug (M) power connection cable with power supply (supplied)
- Signal-to-noise ratio 90 dB
- Distortion factor: Less than 0.05 % at 1 kHz
- Display type: Multi-colored 4-digit 7-segment LED display
- Display: Frequency , Channel , Display status , Mute
- Controls: Power switch, volume control per channel
- Connections: Microphone via 2 x 3-pin XLR (M) installation version
- Material: Metallic
- Housing design: Desk case; (19") 48.3 cm rack mounting possible
- Installation depth: 18.5 cm
- Capsule type: Dynamic
- Battery: Mignon (AA) (not included in delivery)
- Sensitivity -54 dB
- RF output power 10 mW
- Switch: On/off/mute switch
- Product type
Wireless microphone set
- Type
Handheld
- Transfer type
Radio
- Characteristics
Cardioid
- Features
Switch
- Weight
0.27 kg
- Width
48.3 cm
- (Ø)
55 mm
- Dim
(Ø x D) 55 mm x 18.5 cm
- Interfaces
BNC
XLR
- No. of frequencies (adjustable)
16
- No. of transmitters
2
- Sensitivity (microphone)
-54 dB
- Frequency range
50 - 15000 Hz
- Factory colour
Black
- Depth
18.5 cm
30 m
- Frequency
863 - 865 MHz
823 - 832 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729695 Handheld Wireless microphone set Omnitronic UHF E-FLEX 2 Transfer type (details):Radio Switch
Description

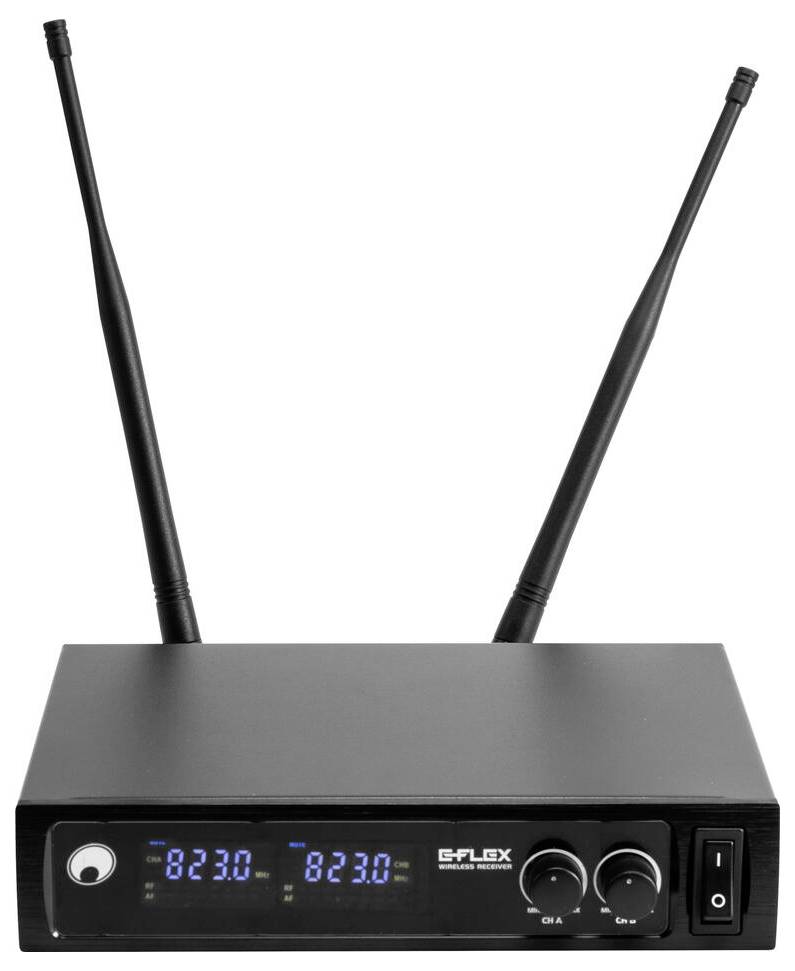

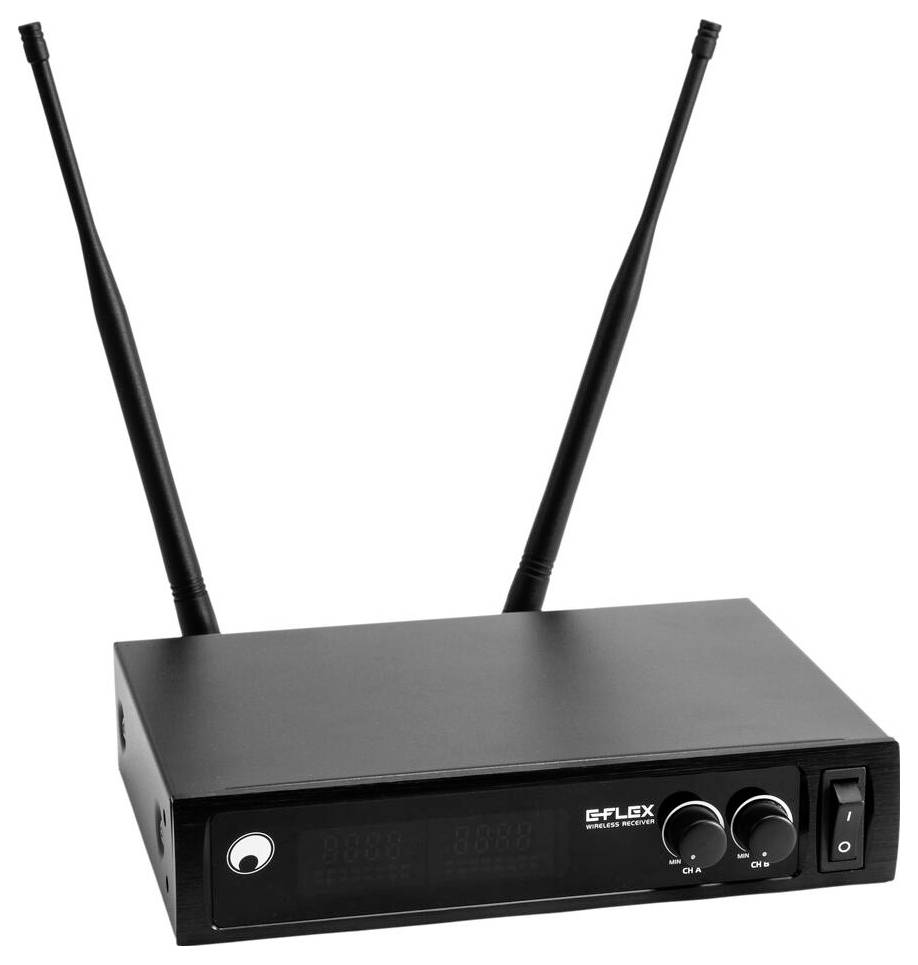

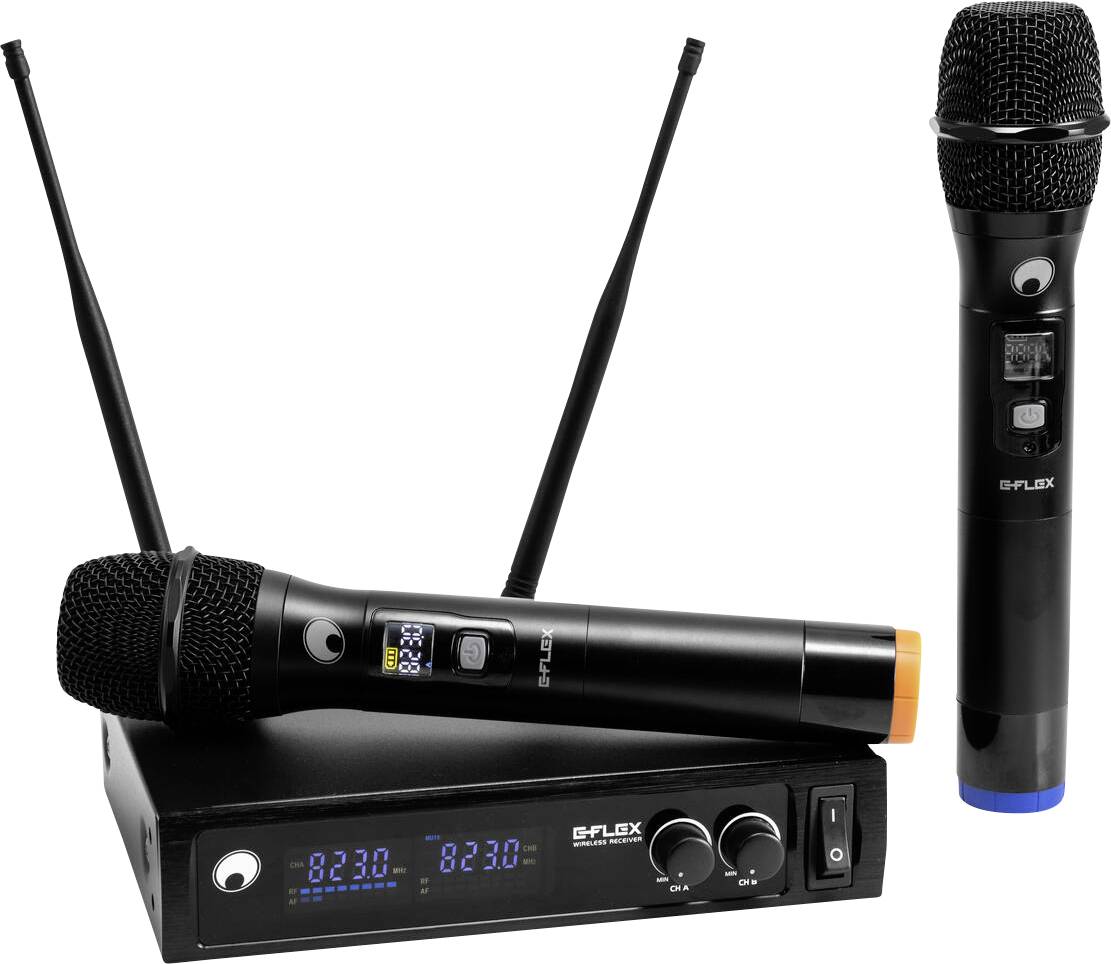

Registration-free 2-channel wireless microphone system (UHF 863 - 865 MHz, UHF 823 - 832 MHz) with auto-sync, including rack kit. 2-channel receiver and 2 hand-held microphones in UHF-PLL technology. Fast and easy frequency selection at the hand-held transmitter. 16 adjustable transmission frequencies (823-832 and 863-865 MHz). 2 separate Channels with volume control. Balanced XLR output per channel. 6.3 mm jack output for mixed signal. Removable BNC antennas. Range of up to 30m at sight range. UHF 863 - 865 MHz registered and uncharged in Europe. UHF 823 - 832 MHz registered and uncharged in large parts of Europe. Receiver. Multi-colored 4-digit 7-segment LED display Table stand case (19") 48.3 cm rack mounting possible. Microphone Directionality: Kidney. Multi-colored 4-digit 7-segment LED display Battery level indicator
This text is machine translated.
This text is machine translated.

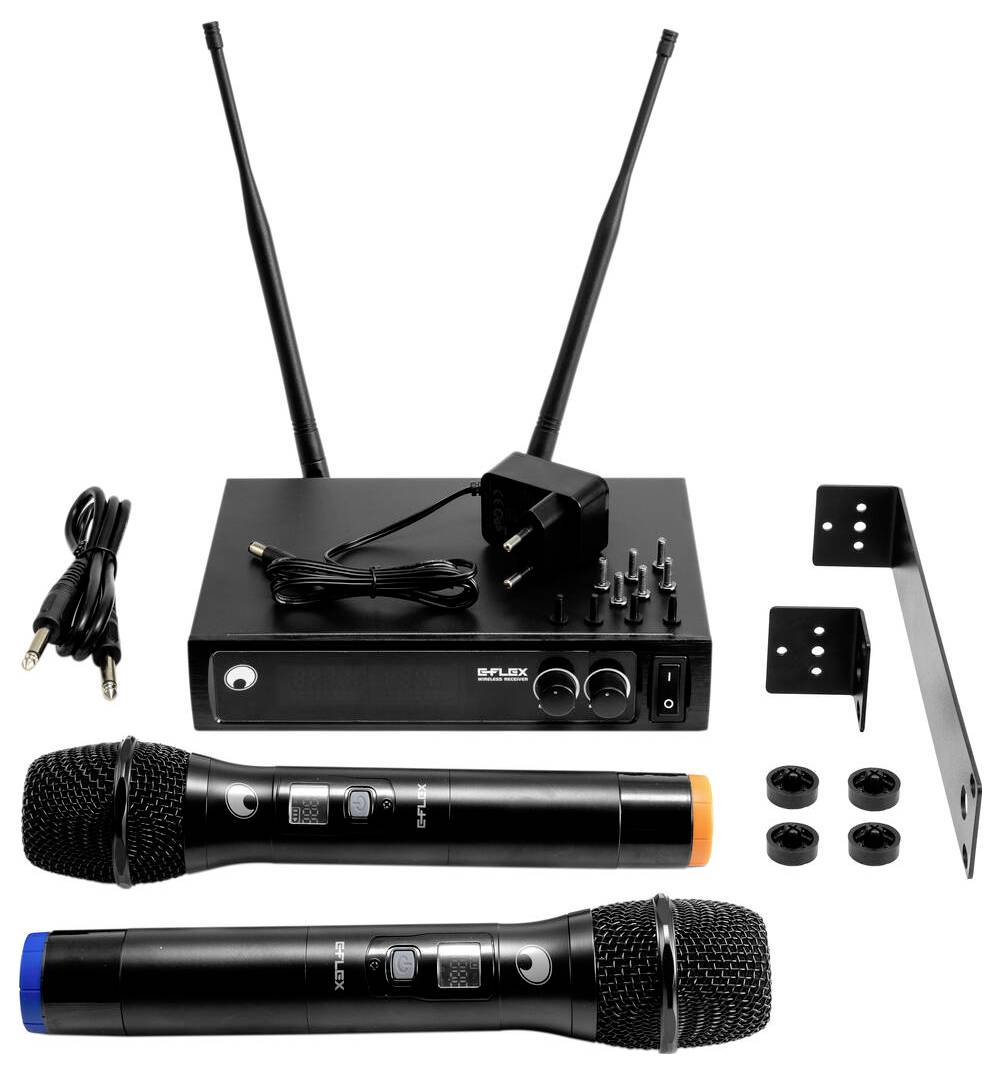

Scope of delivery
- 1 x receiver
- 1 x external power supply
- 2 x Antenna
- 2 x Microphone
- 1 x jack cables
- 2 x mounting bracket
- 6 x Screws
- 4 x Base
- 1x user manual
- 1 x declaration of conformity.
