Handheld Wireless microphone set Relacart UR-260D Transfer type (details):Radio incl. case, Switch
EAN:
Part number:
Item no:
Highlights & Details
Relative CART UR-260D 2-channel UHF System
- System with DSP for microphone modeling
- Simulating known Mirkofonkapseln (SM58, E835, etc.)
- True Diversity System for automatic frequency determination
- Intelligent feedback suppression system
Technical specifications
- Product type
Wireless microphone set
- Type
Handheld
- Transfer type
Radio
- Characteristics
Cardioid/unidirectional
- Features
incl. case
Switch
- Interfaces
XLR
Jack connector
- No. of frequencies (adjustable)
2
- No. of transmitters
2
- Frequency range
45 - 18000 Hz
80 m
- Frequency
823 - 832 MHz
863 - 865 MHz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375621 Handheld Wireless microphone set Relacart UR-260D Transfer type (details):Radio incl. case, Switch
Description

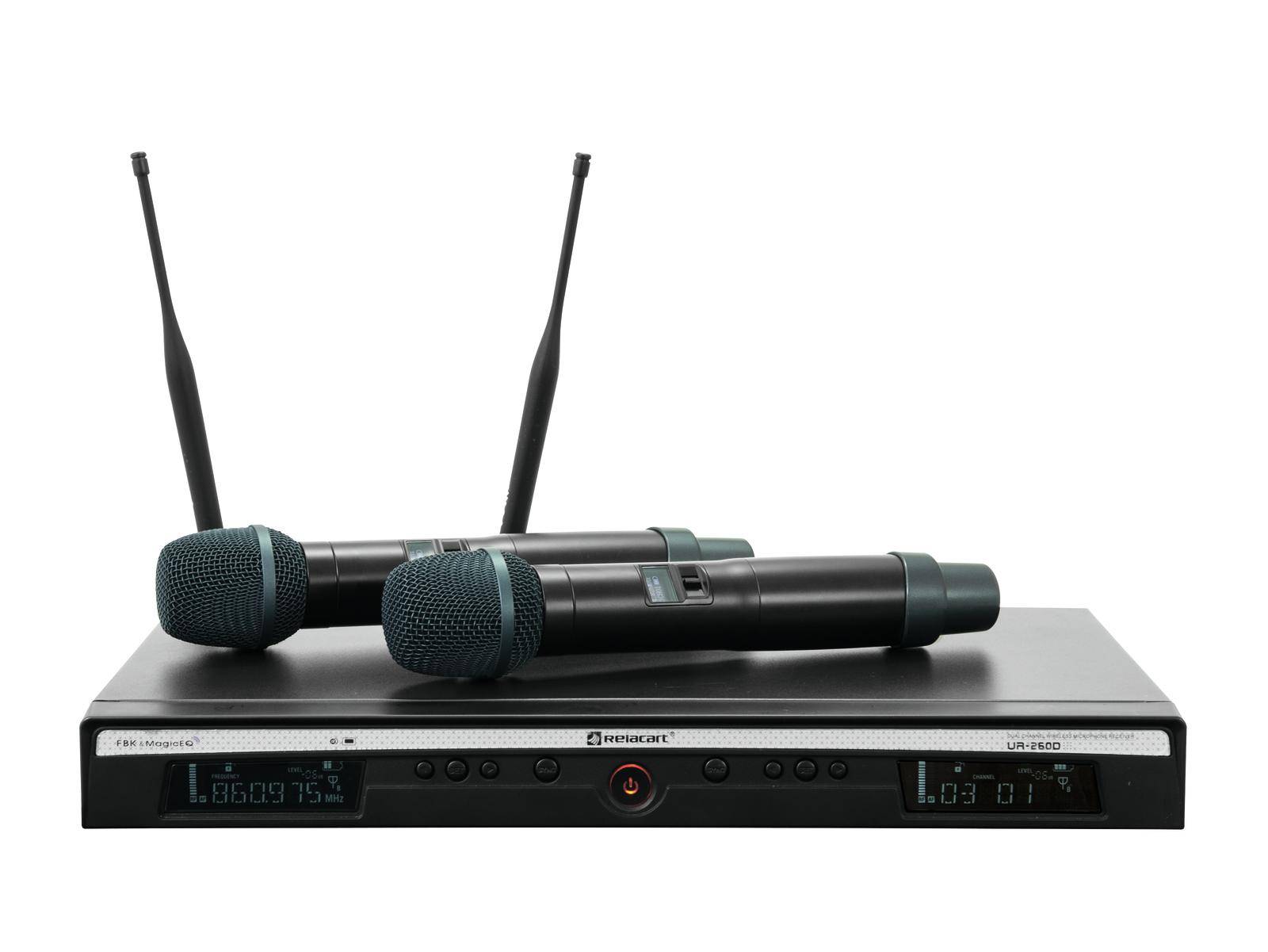

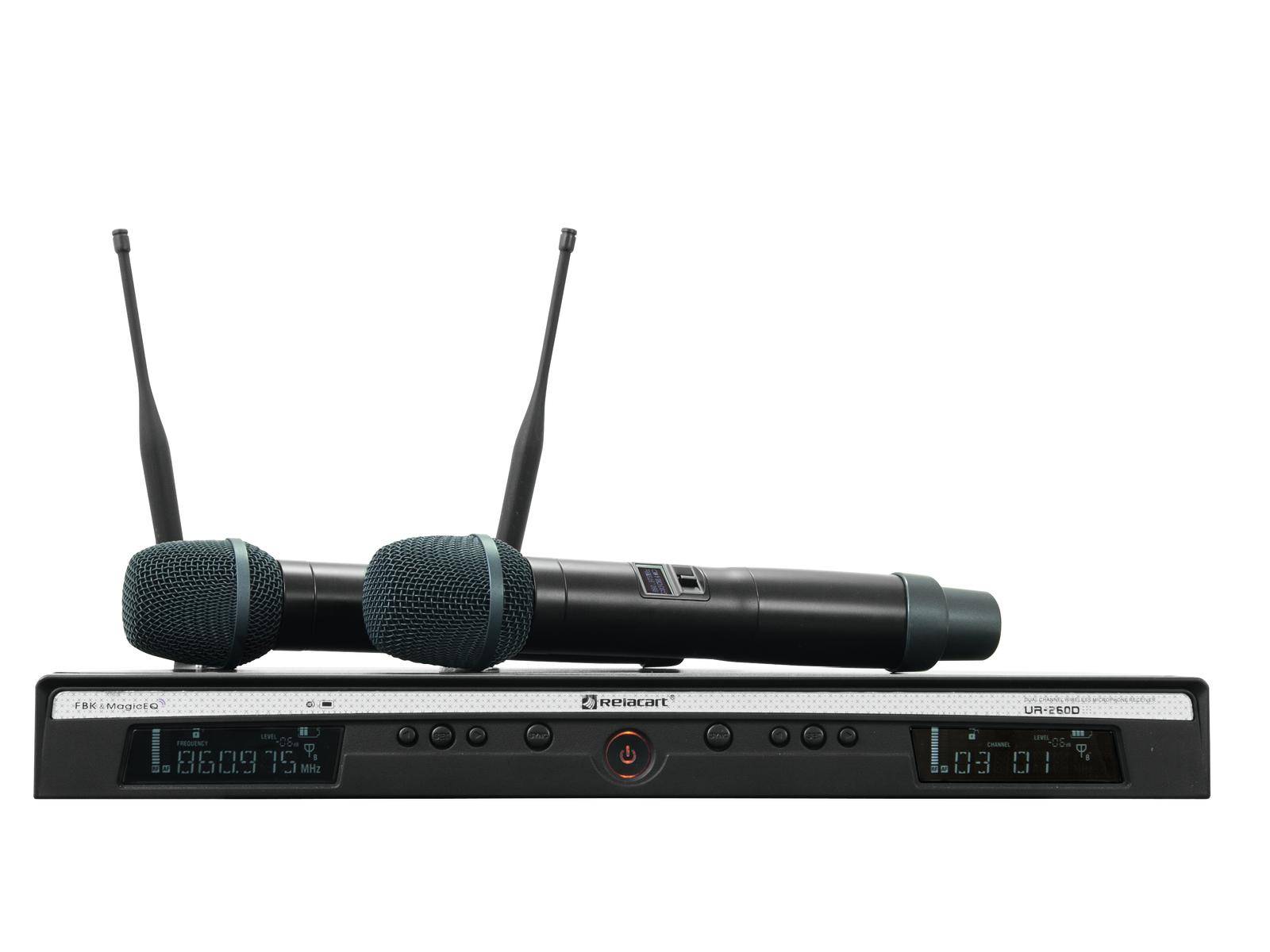

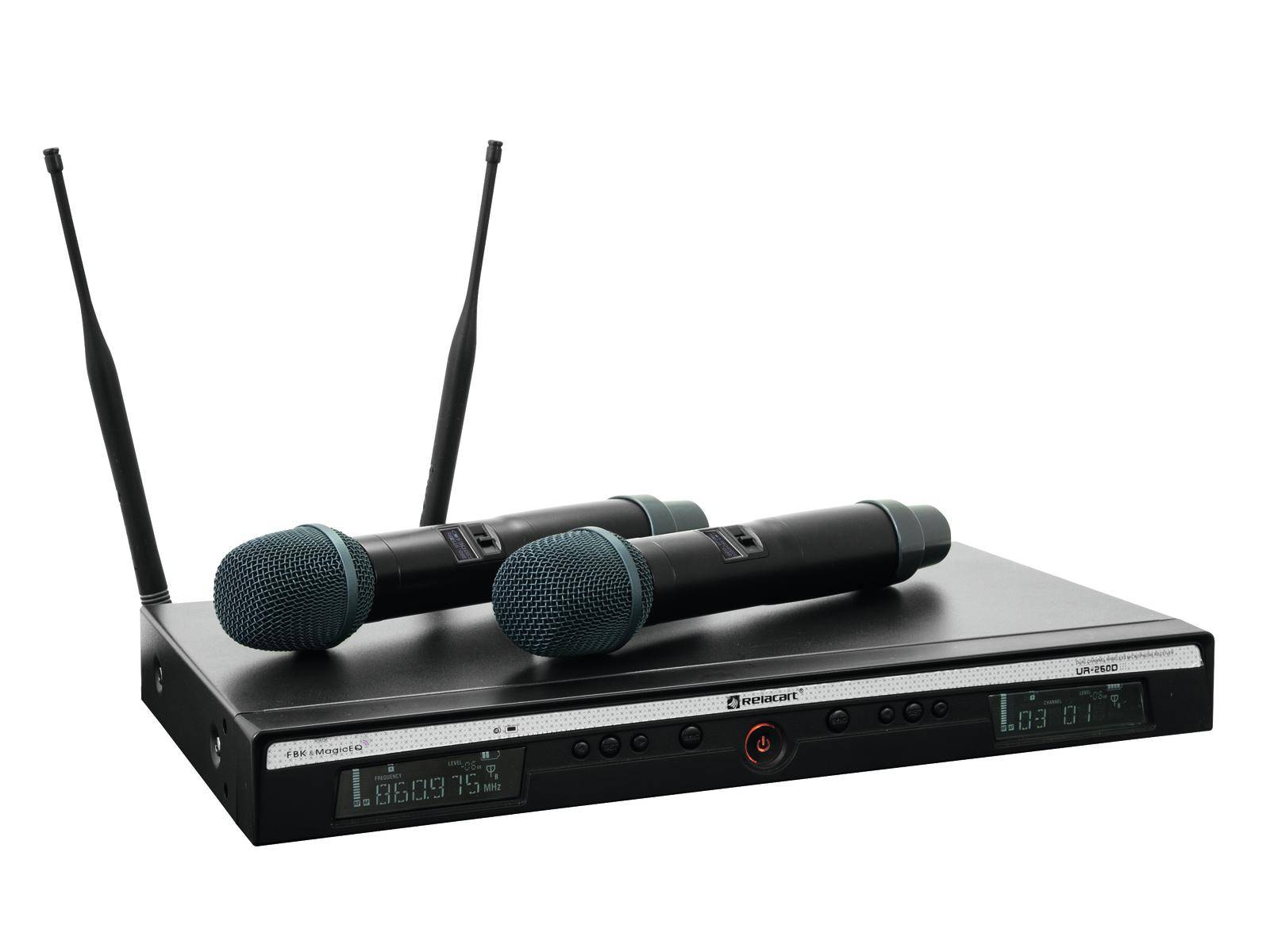

The UR-260D is a dual-channel True Diversity UHF-system with a variety of innovative features. Besides automatic frequency search for interference-free transmission is also an intelligent feedback suppression system is available. The MagicEQ can simulate various sound characteristics of well-known microphone capsules or even created. The presets can be changed by software from the computer - even during live operation.
This text is machine translated.
This text is machine translated.
Features
- System with DSP for microphone modeling & PC software, 823-832 863-865 MHz+
- 2-channel multi-frequency radio receiver with 24-bit processor for first-class sound quality
- Dynamic hand-held microphones in the ergonomic, aluminum alloy housing 2 and OLED display, suitable for hard tour use
- Built-in microphone modeling of the MagicEQ enables spectacular Hand Microphones
- There are 7 presets with well-known microphones (E835, E935, D5, beta 58, SM57, N/D 767 A, SM58) 3 user-definable presets are available
- Integrated feedback killer for automatic feedback suppression and crystal-clear sound quality at maximum gain
- DSP processing and management via the Ethernet interface and intuitive PC Software
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Up to 9 radio links can be interference-free parallel operation
- Pilot tone technology (PLL) and noise squelch for trouble-free operation
- Automatic frequency search (AFS), to find interference-free reception channels
- Quick and error-free synchronization between the receiver and the transmitter via infrared
- LCD-display for battery capacity of the microphones, antenna A/B, RF signal strength, AF audio level and frequency
- Cascading of several receivers via a network cable.
- Lock feature prevents the accidental changing of settings

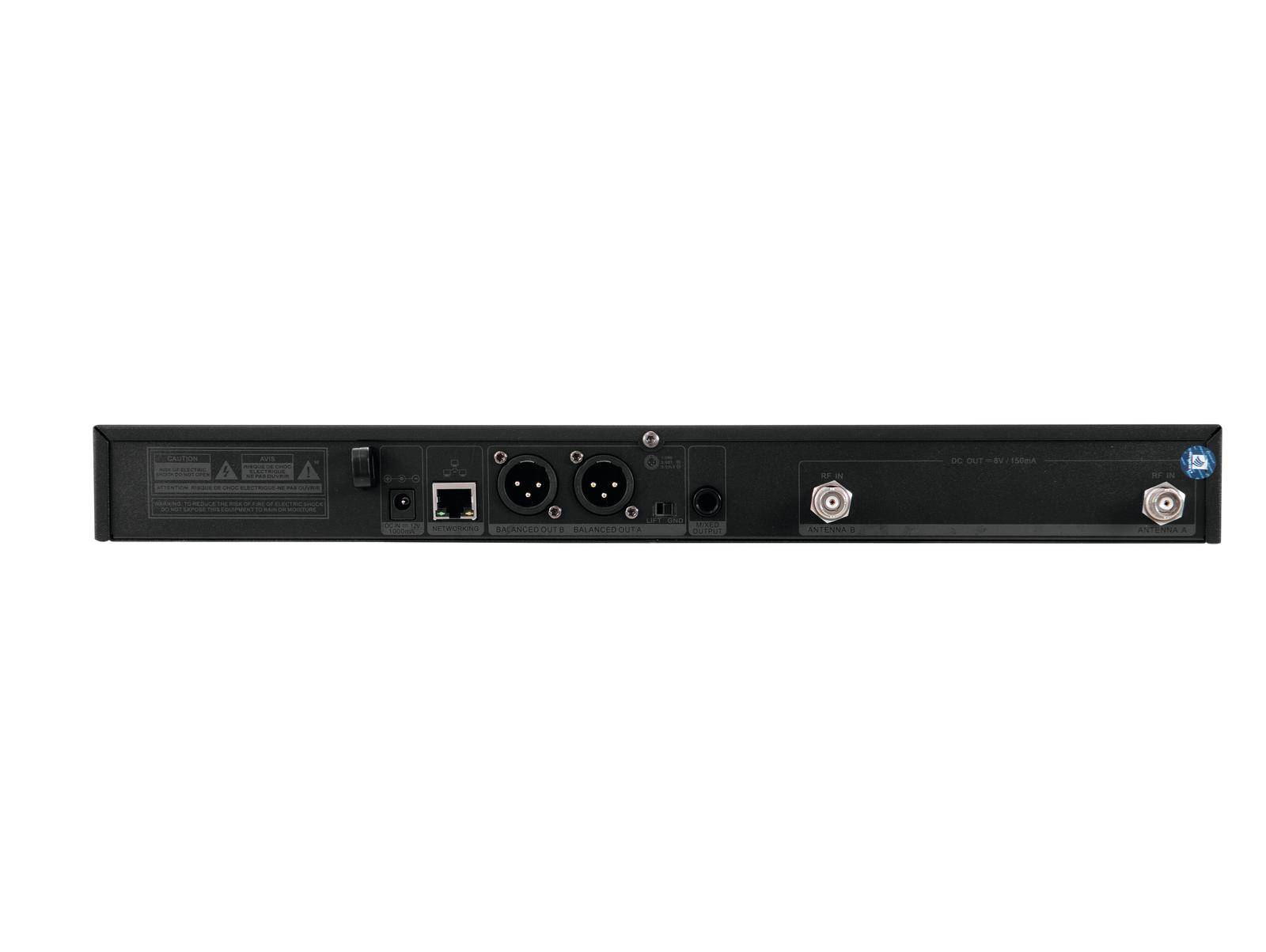

- XLR and 6.3 mm jack output
- 2 removable antennas (BNC) enable the combination with the antenna splitter R-14 D
- Delivered with jack cable and power supply
- 483-mm-rack mounting with supplied mounting angles possible
- Hand-held microphones directly compatible with the SM58 capsule of Shure
- Suitable belt transmitter UT-222 available separately
- Free registration and in large parts of the EU (duplex gap please check country-specific)
- Receiver
- DSP: Digital Signal Processor
- PC connect:relative cart software via RJ45 (W) mounting version
- Casing dimensions: 48.3 cm (19") Rack installation (included) 1 HE
- Microphone
- Directional characteristics: Cardoid
- Battery: 2 x AA (not included).
