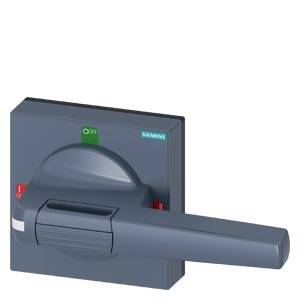

A grey switch with a lever displaying 'Siemens' indicates the 'On' position.

Image similar

A grey switch with a lever displaying 'Siemens' indicates the 'On' position.

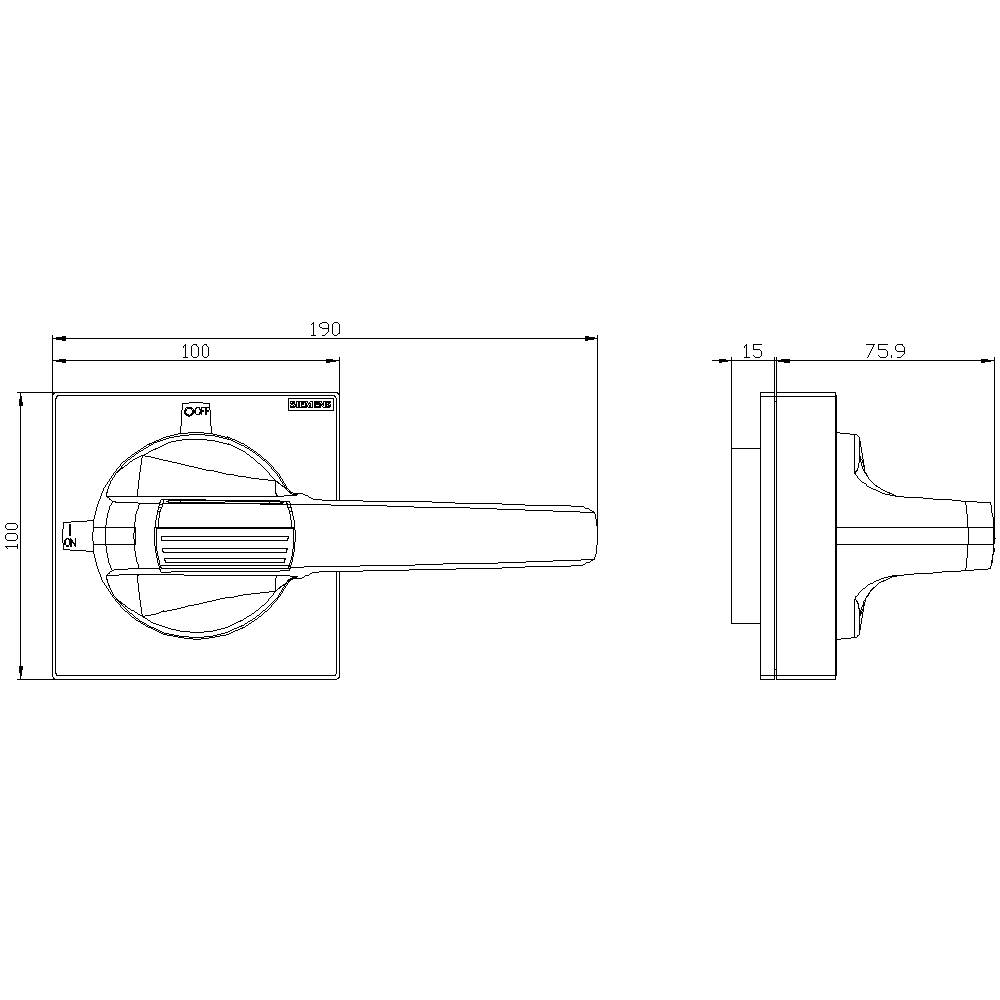

Technical drawing of a handle with side and front views. Dimensions: Length 190 mm, Width 100 mm, Height 75.9 mm. Includes mounting schematic.

1/2

Image similar

Product type

Handle

Compatible with (details)

3KC0 size 4

Factory colour

Grey

Dim

(L x W x H) 140 x 195 x 198 mm

Type

Handle with screen

Datasheet (PDF)

Siemens

Dispatches on Thu, 29 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 73.94 / piece)

€ 73.94

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Door locking system design: Door locking
Net weight 294 g

Product type: Handle

Compatible with (details): 3KC0 size 4

Factory colour: Grey

Dim: (L x W x H) 140 x 195 x 198 mm

Type: Handle with screen

Width: 195 mm

Height: 198 mm

Length: 140 mm

Depth: 105 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1749571 Handle Grey Siemens 8UD18513AE01

User & Safety Instructions

User & Safety Instructions 1749571 Handle Grey Siemens 8UD18513AE01

Description

Door-coupling rotary operating mechanism standard with tolerance compensation Size 100x 100, Shaft 8x 8, 300 mm, I-0-II, Complete unit Handle size 100 mm Accessory for 3KC0 size 3
