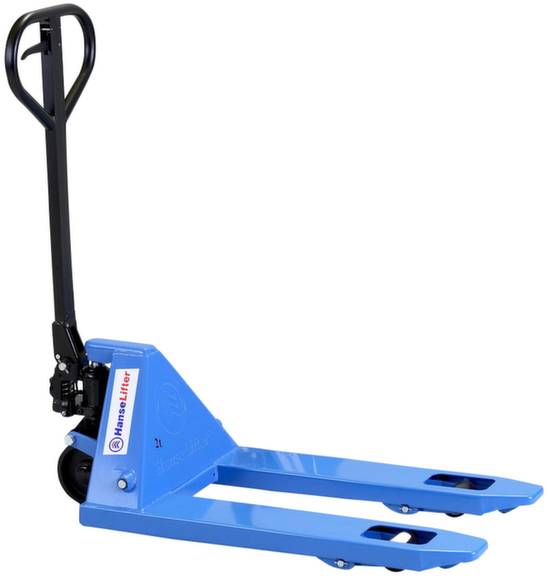

Hanse Lifter DBS500NY-01 Pallet truck Load capacity (max.) 2000 kg Yoke length 50 cm Upstroke (max.) 20 cm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pallet truck
- Max. load capacity
2000 kg
- Yoke length
50 cm
- Upstroke (max.)
20 cm
- Upstroke (min.)
8.5 cm
- Length
87.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1364082 Hanse Lifter DBS500NY-01 Pallet truck Load capacity (max.) 2000 kg Yoke length 50 cm Upstroke (max.) 20 cm
Description
Load 2000 kg, rigid, extra stable stahl-schwei sskonstruktion with powder coating, reinforced tongue with ergonomic tiller handle, the lift-lower drive, continuously and fine adjustable lowering speed by hand lever, hydraulic pump with pressure relief valve against overloads, piston, hardened, ground and hard chrome-plated, fork marking for the cross-recording of pallets, Roles: Steering Wheels Nylon, fork rollers nylon, simple, steering wheels Ø x B = 180 x 50 mm, Ø x B = 94 x 80 mm fork rollers.
This text is machine translated.
This text is machine translated.
Features
- Operating Hub: Manual / hydraulic
- Lifting height (minimum): 85 mm
- Weighing function: no
- Length fork: 500 mm
- Chassis Operation: manual
- Upstroke (max.): 200 mm
- Length: 875 mm
- Schnellhub: no.
