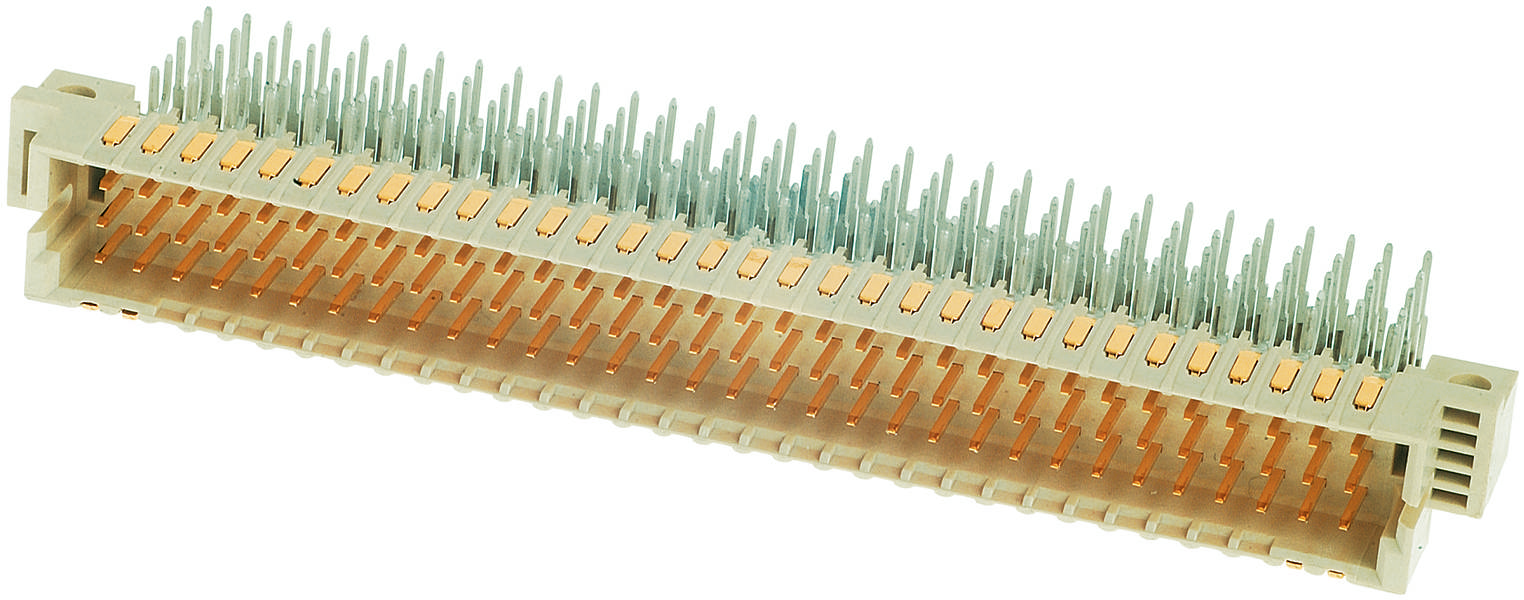

HARTING 02011602101 Edge connector (pins) No. of rows 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (pins)
Connector type
right angle
CS
2.54 mm
Content
1 pc(s)
Total number of pins
160
Datasheet (PDF)
Highlights & Details
Terminal pin strip
- Total number of pins 160
- No. of rows 5
- Content 1 pc(s)
Technical specifications
- Range: Har-bus® 64
- Component: Terminal strip
- Contact description: Angled
- Connection type: Reflow soldering connection (THR);wave soldering connection
- Type of connection: Motherboard to Daughtercard; extender card
- Number of contacts: 160
- Plug contact series 5
- Pitch, connection side 2.54 mm
- Rated current: Rated current measured at 20 °C, for details see derating curve
- Insulation resistance >1010 Ω
- Constant resistance: ≤20 mΩ for rows a, b, c;≤30 mΩ for rows d, z
- Temperature limit: -55 ... +125 °C (Max. For reflow soldering +240 °C for 15 s)
- Plug and pull force ≤ 160 N
- Mating cycles ≥ 250
- Test voltage Ueff 1 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Colour insert: Beige
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
- Material flammability class acc. To UL 94: V-0
- IEC 61076-4-113 standard
- Net weight: 26 g
- Pitch, plug-side 2.54 mm
- Air gap: 1,2 mm between 2 rows (a, b, c);1,2 mm between 2 rows (d, z);1,2 mm between 2 contacts in a row (a, b, c);1 mm between 2 contacts in a row (d, z)
- Tracking distance: 1,2 mm between 2 rows (a, b, c);1,2 mm between 2 rows (d, z);1,2 mm between 2 contacts in a row (a, b, c);1 mm between 2 contacts in a row (d, z)
- Features: Lead-free
- PCB mounting: With flange
- Hot plugging: No.
- Railway classification: F1/I2 in accordance with NFF 16-101/102
- Contact placement: Rows a, b, c, d and z, positions 1, 2, ... , 31, 32
- Leading contact on position: D1;d2;D31;d32
- Product type
Edge connector (pins)
- Connector type
right angle
- Total number of pins
160
- No. of rows
5
- CS
2.54 mm
- Connection
THR
- Factory colour
Beige
- Case material
PA
- Manufacturer part #
02011602101
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
02 01 160 2101
- Resistance
20 mΩ;30 mΩ
- Insulation resistance
1010 Ω
Other
160
Other
-55-125 °C
Other
Soldering connection
Tin
2.54 mm
5
2.54 mm
Liquid crystal polymer
0°/180° (horizontal)
Flange
1 A
Documents & Downloads
Datasheet
Datasheet 3002806 HARTING 02011602101 Edge connector (pins) No. of rows 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3002806 HARTING 02011602101 Edge connector (pins) No. of rows 5 1 pc(s)
Description
Terminal strip, reflow solder connection (THR), and wave soldering connection, rated current 1 A, contacts: 160, Angled, copper alloy
