Product type

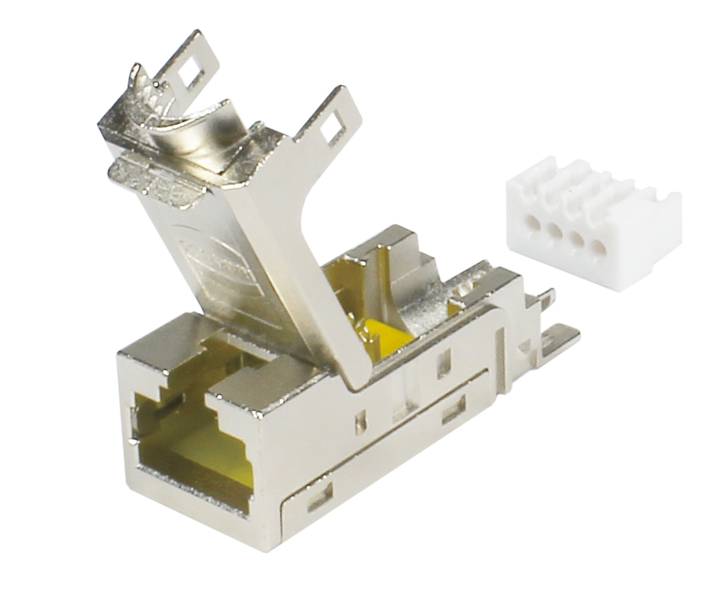

RJ45 connector
No. of pins
4
Specification
CAT 5
Type
09 45 545 1120
Type A
Cut & Clip
Datasheet (PDF)
Technical specifications
- Series: Harting RJ INDUSTRIAL®
- Component: Jack
- Connection type: IDC insulation displacement connection
- Number of contacts: 4
- Rated current 1.76 A
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Material application: Polycarbonate (PC)
- Colour insert: White;yellow
- Material flammability class acc. To UL 94: V-2
- Net weight: 22 g
- RATED VOLTAGE 50 V AC; 60 V DC
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Conductor cross-section: AWG 24 ... AWG 22
- Description: RJ45;HIFF-version
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Cat. 5 class D to 100 MHz
- Protection class according to IEC 60529:IP20
- PROFINET: Yes
- Approvals DNV GL
- Material housing: Zinc-Druckguss
- Surface of housing: Nickel-plated
- Wire outer diameter: 1,7 mm
- Cable diameter: 5 ... 9 mm
- Type
09 45 545 1120
- Product type
RJ45 connector
- No. of pins
4
CAT 5
- Type A
Cut & Clip
- Type B
RJ45
- Content
1 pc(s)
- Number of pins
4
FALSE
4
Other
-40-70 °C
Other
Insulation displacement connection
Other
FALSE
0.22-0.32 mm²
0.22-0.32 mm²
Other
Thermoplastic
1.76 A
Thermoplastic
750
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3011283 HARTING 09 45 545 1120 HARTING 09 45 545 1120 N/A 09455451120 No. of pins (RJ) 4 1 pc(s) 09455451120 No. of pins (RJ) 4
Datasheet 3011283 HARTING 09 45 545 1120 HARTING 09 45 545 1120 N/A 09455451120 No. of pins (RJ) 4 1 pc(s) 09455451120 No. of pins (RJ) 4
User & Safety Instructions
User & Safety Instructions 3011283 HARTING 09 45 545 1120 HARTING 09 45 545 1120 N/A 09455451120 No. of pins (RJ) 4 1 pc(s) 09455451120 No. of pins (RJ) 4
Description
Connector, socket, IDC insulation displacement connector, polycarbonate (PC), white, yellow, rated current 1.76 A, contacts 4
