HARTING 09 45 545 1563 Connectors 09455451563 Socket No. of pins (RJ) 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
RJ45 connector
Connector type
Socket
No. of pins
8
Specification
CAT 6A
Connector standard
RJ45
Datasheet (PDF)
Technical specifications
- Series: Harting RJ INDUSTRIAL®
- Component: Jack
- Connection type: IDC insulation displacement connection
- Number of contacts: 8
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Material application: Polycarbonate (PC)
- Colour insert: White;yellow
- Material flammability class acc. To UL 94: V-2
- Net weight: 30 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Conductor cross-section: AWG 28 ... AWG 24
- Description: RJ45
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Cat. 6A class EA to 500 MHz
- Protection class according to IEC 60529:IP20
- Size: Keystone version
- Approvals DNV GL
- Material housing: Zinc-Druckguss
- Surface of housing: Nickel-plated
- Wire outer diameter: 1,2 mm
- Cable diameter: 5 ... 9 mm
- Type
09 45 545 1563
- Product type
RJ45 connector
- Connector type
Socket
- No. of pins
8
CAT 6A
- Connector standard
RJ45
- AWG max.
24
- AWG (min.)
28
- Connection
Cut & Clip connector
- Type A
Cut & Clip
- Type B
RJ45
- No. of ports
8 x
- Weight
30 g
- Content
1 pc(s)
- Material
Polycarbonate (PC)
- Features
shielded housing
- Max. temperature
+70 °C
- Min. temperature
-40 °C
FALSE
8
Other
-40-70 °C
Other
Insulation displacement connection
Other
FALSE
0.08-0.22 mm²
0.08-0.22 mm²
Other
Thermoplastic
Thermoplastic
750
8
Documents & Downloads
Datasheet
Datasheet 3011281 HARTING 09 45 545 1563 Connectors 09455451563 Socket No. of pins (RJ) 8 1 pc(s)
Datasheet 3011281 HARTING 09 45 545 1563 Connectors 09455451563 Socket No. of pins (RJ) 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3011281 HARTING 09 45 545 1563 Connectors 09455451563 Socket No. of pins (RJ) 8 1 pc(s)
Description

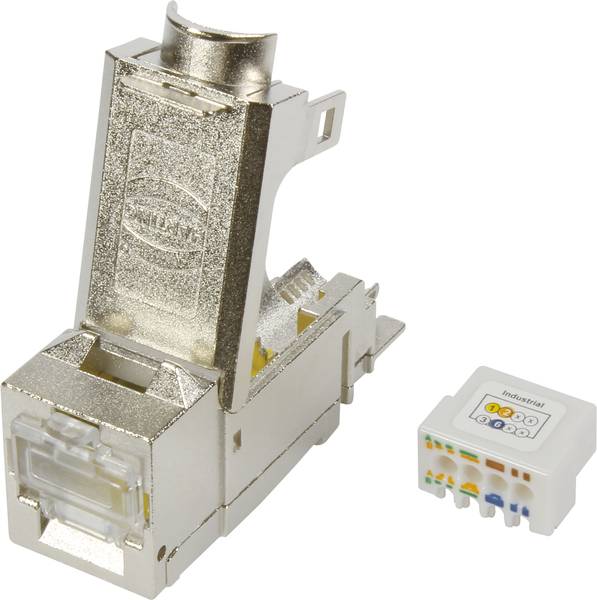

Connector, socket, IDC insulation displacement connector, polycarbonate (PC), white, yellow, size: Keystone version, contacts: 8
