HARTING 09 45 545 1568 HARTING 09 45 545 1568 N/A 09455451568 No. of pins (RJ) 8 1 pc(s) 09455451568 No. of pins (RJ) 8
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Coupler
No. of pins
8
Specification
CAT 6
Connector standard
RJ45
Datasheet (PDF)
Technical specifications
- Series: Harting RJ INDUSTRIAL®
- Component: Coupler
- Number of contacts: 8
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Material flammability class acc. To UL 94: V-0
- Net weight: 18 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Description: RJ45
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Category 6 Class E up to 250 MHz
- Protection class according to IEC 60529:IP20
- PROFINET: Yes
- Size: Keystone version
- Approvals DNV GL
- Material housing: Zinc-Druckguss
- Surface of housing: Nickel-plated
- Packaging type
Single
- Type
09 45 545 1568
- Product type
Coupler
- No. of pins
8
CAT 6
- Connector standard
RJ45
- Connection
RJ45
- Type A
RJ45
- Type B
RJ45
- Weight
18 g
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Features
shielded housing
- Max. temperature
70 °C
- Min. temperature
-40 °C
Other
Other
Other
TRUE
TRUE
FALSE
RJ45 8(8)
TRUE
FALSE
IP20
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3011266 HARTING 09 45 545 1568 HARTING 09 45 545 1568 N/A 09455451568 No. of pins (RJ) 8 1 pc(s) 09455451568 No. of pins (RJ) 8
Datasheet 3011266 HARTING 09 45 545 1568 HARTING 09 45 545 1568 N/A 09455451568 No. of pins (RJ) 8 1 pc(s) 09455451568 No. of pins (RJ) 8
User & Safety Instructions
User & Safety Instructions 3011266 HARTING 09 45 545 1568 HARTING 09 45 545 1568 N/A 09455451568 No. of pins (RJ) 8 1 pc(s) 09455451568 No. of pins (RJ) 8
Description

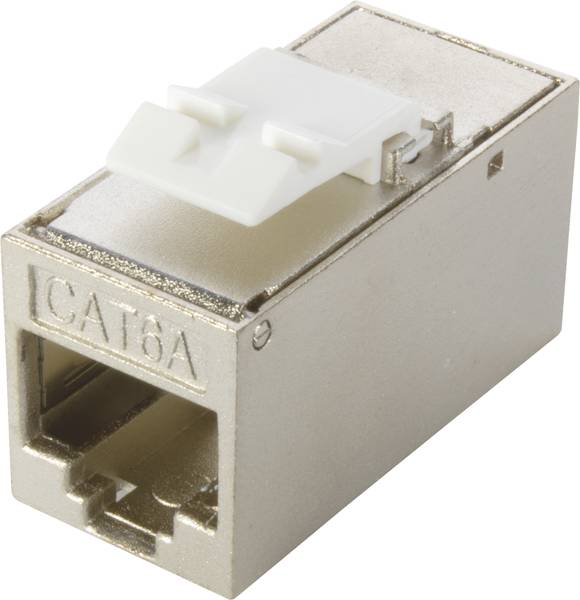

Coupler, RJ45, zinc die-cast
