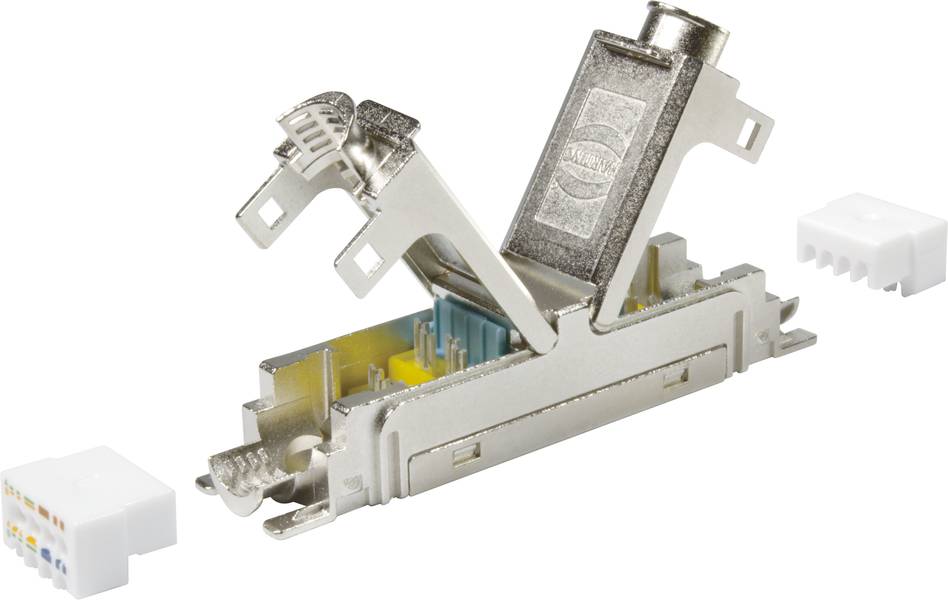

HARTING 09 45 545 1569 09455451569 No. of pins (RJ) 8 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
No. of pins
8
Specification
CAT 6A
Connector standard
RJ45
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Type
09 45 545 1569
- Product type
Connector
- No. of pins
8
CAT 6A
- Connector standard
RJ45
- AWG max.
22
- AWG (min.)
23
- Connection
Cut & Clip connector
- Type A
Cut & Clip
- Type B
RJ45
- No. of ports
8 x
- Weight
42 g
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Features
+ IDC
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Cross section (flexible) (max.)
0.32 mm²
- Cross section (inflexible) (max.)
0.32 mm²
- Cross section (flexible) (min.)
0.26 mm²
- Cross section (inflexible) (min.)
0.26 mm²
Other
Insulation displacement connector
Other
TRUE
TRUE
FALSE
RJ45 8(8)
TRUE
FALSE
IP20
FALSE
