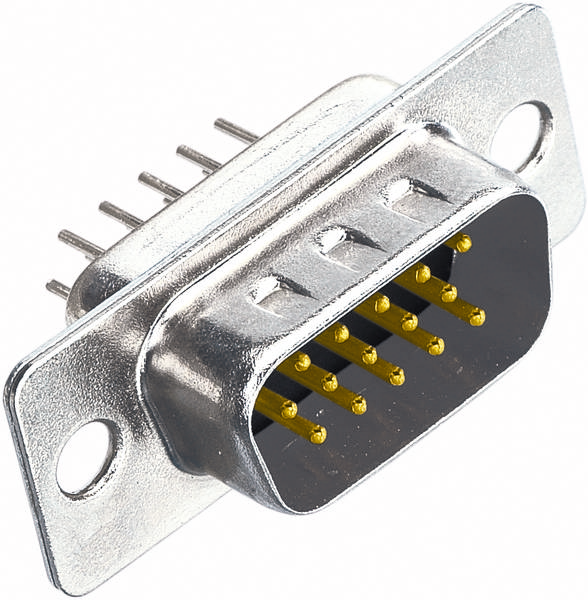

HARTING 09 56 161 7700 09561617700 Connector Number of pins: 15 Soldering 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Connector type
Plug, straight
Number of pins
15
Connection
Soldering
Datasheet (PDF)
Highlights & Details
- Connector
- Number of pins: 15
Technical specifications
- Packaging type
Piece
- Product type
Connector
- Connector type
Plug, straight
- Number of pins
15
- Connection
Soldering
- Content
1 pc(s)
- Mating cycles
≥ 50
- Manufacturer part #
09561617700
- Factory colour
Black
- Contact type
Punched contacts
- Contact material
Copper alloy
- Contact surface
Precious metal
- CS
2.29 mm
- Features
for punched electrical contacts
- Type
09 56 161 7700
Plug/bus
15
