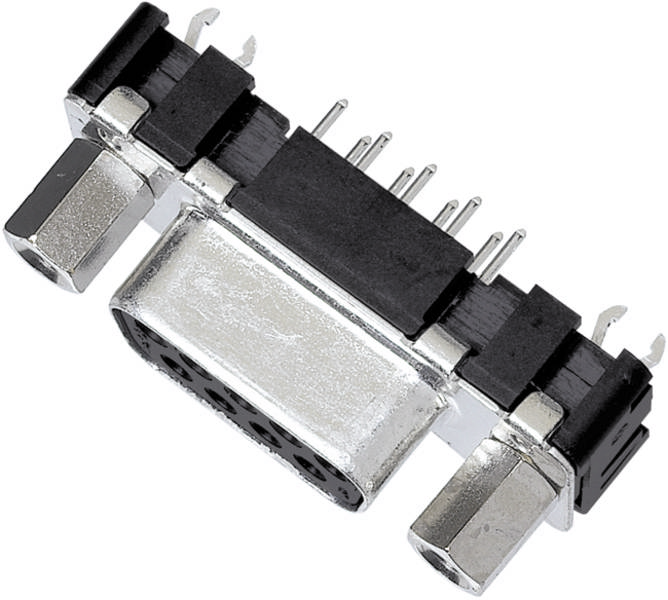

HARTING 09 66 111 7501 09661117501 Connector Number of pins: 9 Soldering 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Connector type
Socket, straight
Number of pins
9
Connection
Soldering
Datasheet (PDF)
Highlights & Details
Connectors
- Connector
- Number of pins: 9
Technical specifications
- Series D-Sub
- Component: Connector
- Contact description: Punched;straight
- Connection type: Shaft soldering connection
- Type of connection: Motherboard to Daughtercard;mezzanine
- Number of contacts: 9
- Length of the Pins 2.9 mm
- Locking type: Flange with thread M3
- Pitch, connection side 2.74 mm
- Rated current 6.5 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -55 ... +125 °C
- Mating cycles ≥ 50
- Test voltage Ueff 1 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material Application: Thermoplastic molding material, glass fiber reinforced (PBTP);Shell: Steel, with surface finish
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Precious metal over Ni
- Material flammability class acc. To UL 94: V-0
- DIN 41652 standard
- Net weight: 5.5 g
- Designation: Default
- Airway: ≥ 1 mm
- Creepage distance ≥ 1 mm
- Hot plugging: No.
- Circuit board thickness ≥1.6 mm
- Plug-in force ≤ 30 N
- Pull force: ≥ 3.3 N;≤ 20 N
- Gender: Jack
- Tightening torque: ≤0.6 Nm screw bolts
- Size D-Sub 1
- Series distance 2.84 mm
- Installation height: 6.2 mm
- Packaging type
Piece
- Type
D-Sub
- Product type
Connector
- Connector type
Socket, straight
- Number of pins
9
- Connection
Soldering
- Content
1 pc(s)
- Mating cycles
≥ 50
- Manufacturer part #
09661117501
- Factory colour
Black
- Contact type
Punched contacts
- Contact material
Copper alloy
- Contact surface
Precious metal
- CS
2.74 mm
- Features
for wave soldering
- Type
09 66 111 7501
Plug/bus
9
Documents & Downloads
Datasheet
Datasheet 3004924 HARTING 09 66 111 7501 09661117501 Connector Number of pins: 9 Soldering 1 pc(s) Piece
Datasheet 3004924 HARTING 09 66 111 7501 09661117501 Connector Number of pins: 9 Soldering 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3004924 HARTING 09 66 111 7501 09661117501 Connector Number of pins: 9 Soldering 1 pc(s) Piece
Description
Plug connector, shaft solder connection, Rated current: 6.5 A, Socket, Frame size: D-Sub 1
