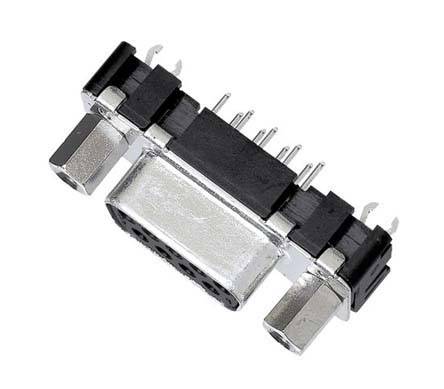

Image similar

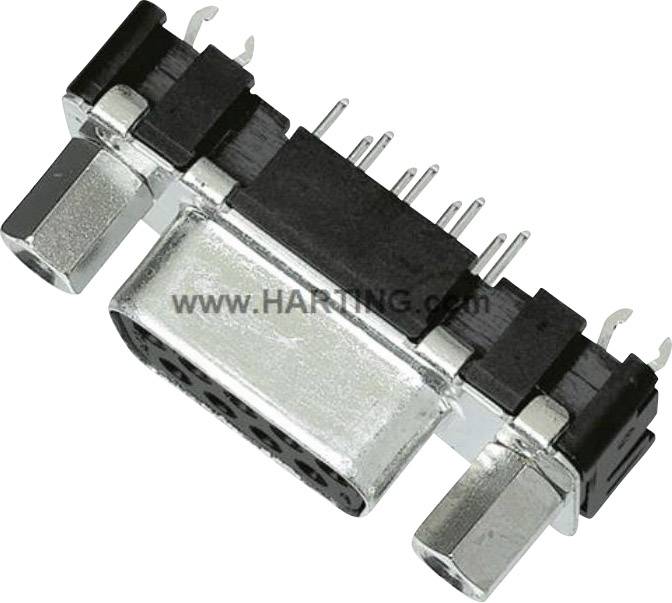

Image similar
HARTING 09661516513 09661516513 D-SUB receptacles 180 ° Number of pins: 9 Soldering 1 pc(s)
EAN:
Part number:
Item no:
Product type
D-SUB receptacles
Connector type
Socket, vertical vertical
Number of pins
9
Connection
Soldering
No. of rows
2
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 5.87
300
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Multiple: 100
Total (€ 5.87 / piece)
€ 6.71
-13 %
€ 587.00
plus VAT.
14-day return policy included
Highlights & Details
HARTING 09661516513 09661516513 D-SUB receptacles 180 ° Number of pins: 9 Soldering 1 pc(s)
- D-SUB receptacles
- No. of rows: 2
- Number of pins: 9
Technical specifications
- With ground contact solder pin.
- Product type
D-SUB receptacles
- Connector type
Socket, vertical vertical
- Number of pins
9
- Connection
Soldering
- Connection angle
180°
- No. of rows
2
- Content
1 pc(s)
- Manufacturer part #
09661516513
- Material (details)
Moulded thermoplastic material, glass-fibre reinforced
- Certification marks
DIN 41652, CECC 75301-802, IEC 60807
- RoHS-compliant
Yes
- Temperature range
-55ºC - +125 °C
- Type
09661516513
- Type
Socket terminal strip
- Operating current
max: 6.5 A
- Nominal current (details)
6.5 A
- Connection
-
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 742429 HARTING 09661516513 09661516513 D-SUB receptacles 180 ° Number of pins: 9 Soldering 1 pc(s)
User & Safety Instructions
User & Safety Instructions 742429 HARTING 09661516513 09661516513 D-SUB receptacles 180 ° Number of pins: 9 Soldering 1 pc(s)
Description
With rest clip, punched soldering connections and dimples in the metal protection collar, requirement stage 2.
Hints
MIL-C-24308, IEC 807
