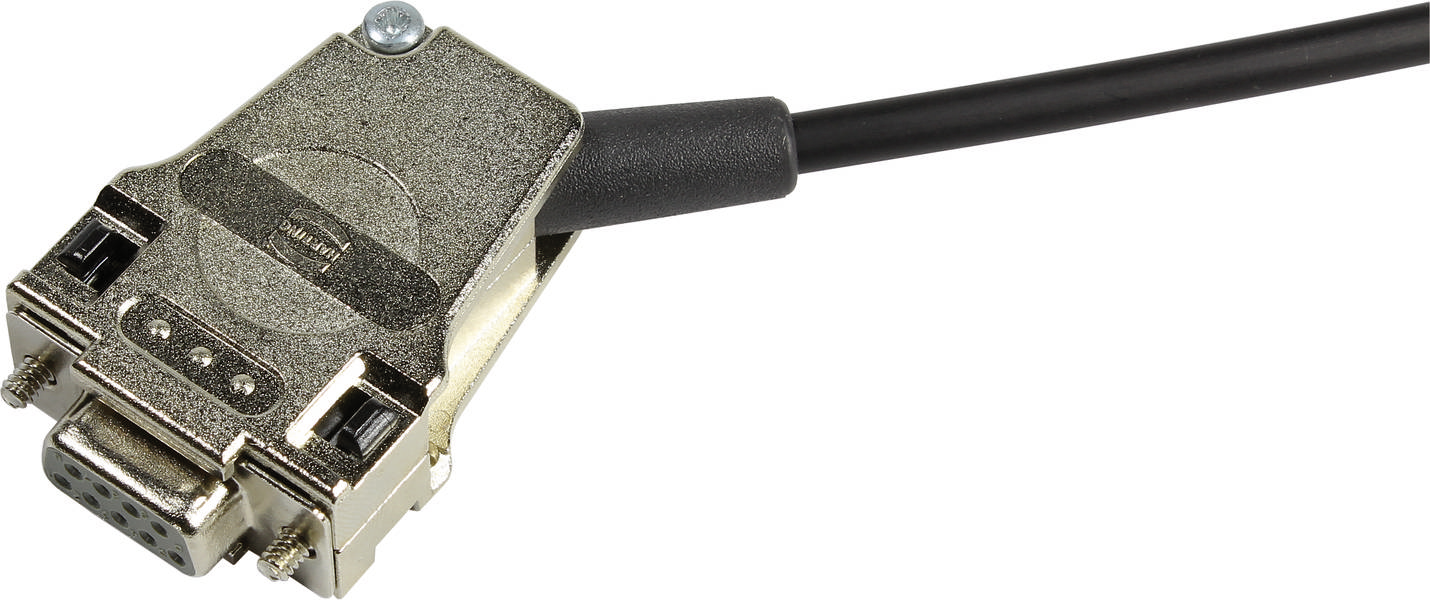

HARTING 09 67 009 0334 09670090334 Shell Metal 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Metal
Content
1 pc(s)
Manufacturer part #
09670090334
Datasheet (PDF)
Highlights & Details
Shell housing
- Metal
Technical specifications
- Locking type: With short locking screws thread 4-40 UNC
- Net weight: 49.8 g
- Housing description: Cover can be screwed down
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cover screw;0,4 Nm cable clamping screw
- Size D-Sub 1
- Housing type: Shell housing
- Design: Side cable input
- Cable input 1x
- D-Sub case series
- Material housing: Metal
- Cable diameter: 3 ... 9.5 mm
- Length: 39.5 mm.
- Width 31.8 mm
- Height: 15.4 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -35 ... +100 °C
- Cable fixing: Cable clamp;Kink protection sleeve ≤ 6.5 mm
- Packaging type
Piece
- Product type
Shell
- Case material
Metal
- Content
1 pc(s)
- Manufacturer part #
09670090334
- Cable Ø (max.)
9.5 mm
- Cable Ø up to
3 mm
- Cable Ø range
3 - 9.5 mm
- Width
31.8 mm
- Height
15.4 mm
- Length
39.5 mm
- Features
+ short screws
- Type
09 67 009 0334
Screw
Angled
FALSE
Metal
FALSE
Documents & Downloads
Datasheet
Datasheet 3003757 HARTING 09 67 009 0334 09670090334 Shell Metal 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003757 HARTING 09 67 009 0334 09670090334 Shell Metal 1 pc(s) Piece
Description
Shell housing, screw-in cover, size: D-Sub 1, with short locking screws thread 4-40 UNC, side cable input, 1x
