HARTING 09 67 009 0343 09670090343 Shell Metal 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Metal
Content
1 pc(s)
Manufacturer part #
09670090343
Datasheet (PDF)
Highlights & Details
Shell housing
- Metal
Technical specifications
- Locking type: Knurled screw thread 4-40 UNC
- Net weight: 50 g
- Housing description: Cover can be screwed down
- Tightening torque: 0,4 Nm cap screw;0,4 Nm locking screw
- Size D-Sub 1
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- D-Sub case series
- Material housing: Metal
- Cable diameter: 4 ... 10.2 mm
- Length: 39.5 mm.
- Width 31 mm
- Height: 1.8" (14.8 mm)
- 2-part: yes
- divisible: yes
- Ambient temperature: -40 ... +120 °C
- Cable fixing: Cable sleeve
- Packaging type
Piece
- Product type
Shell
- Case material
Metal
- Content
1 pc(s)
- Manufacturer part #
09670090343
- Cable Ø (max.)
10.2 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 10.2 mm
- Width
31 mm
- Height
14.8 mm
- Length
39.5 mm
- Features
+ 4-40 knurl head screw
- Type
09 67 009 0343
Screw
Straight
FALSE
Metal
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3003779 HARTING 09 67 009 0343 09670090343 Shell Metal 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003779 HARTING 09 67 009 0343 09670090343 Shell Metal 1 pc(s) Piece
Description

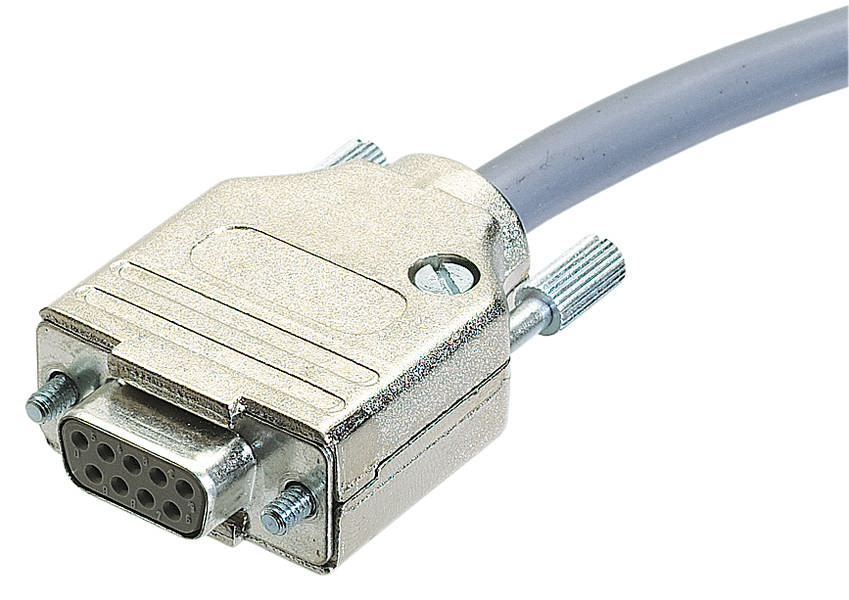

Shell housing, screw-in cover, size: D-Sub 1, knurled screw thread 4-40 UNC, straight cable input, 1x, material housing: Metal
