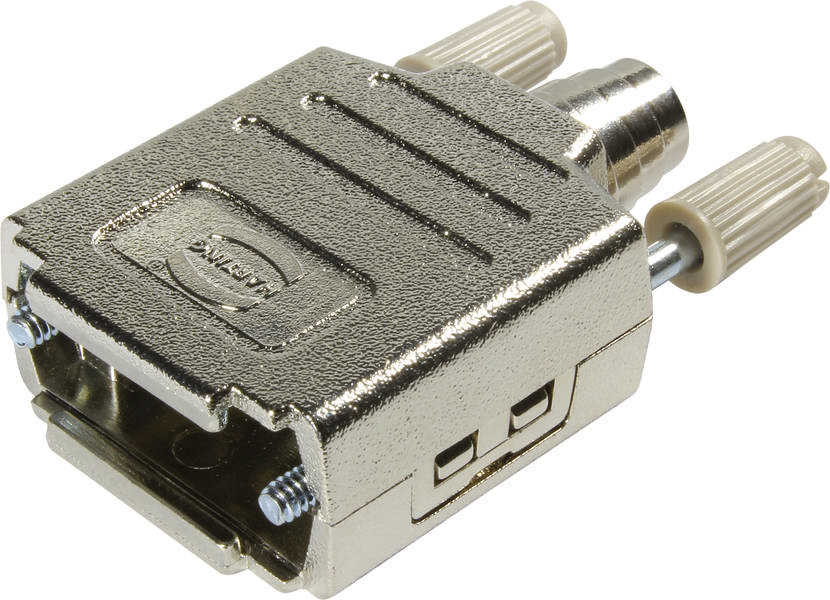

HARTING 09 67 009 0425 09670090425 Shell Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Shielded
Yes
Manufacturer part #
09670090425
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Locking type: Knurled screw thread 4-40 UNC
- Net weight: 17.8 g
- Shielding: shielded
- Housing description: Cover can be locked
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cable clamping screw
- Size D-Sub 1
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- D-Sub case series
- Material housing: Plastic
- Surface of casing: Metallized
- cable diameter 11.5 mm
- Length: 32.5 mm.
- Width 38 mm
- Height: 15 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -55 ... +110 °C
- Cable fixing: Cable clamp;cable sleeve
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Shielded
Yes
- Manufacturer part #
09670090425
- Cable Ø
11.5 mm
- Width
38 mm
- Height
15 mm
- Length
32.5 mm
- Features
+ cable sleeve
+ 4-40 knurl head screw
+ metallized plastic enclosure
+ latch
straight cable input
1x cable entry
- Type
09 67 009 0425
Screw
Straight
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003703 HARTING 09 67 009 0425 09670090425 Shell Plastic 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003703 HARTING 09 67 009 0425 09670090425 Shell Plastic 1 pc(s)
Description
Shell housing, cover can be locked, size: D-Sub 1, knurled screw thread 4-40 UNC, straight cable input, 1x, material housing: Plastic
