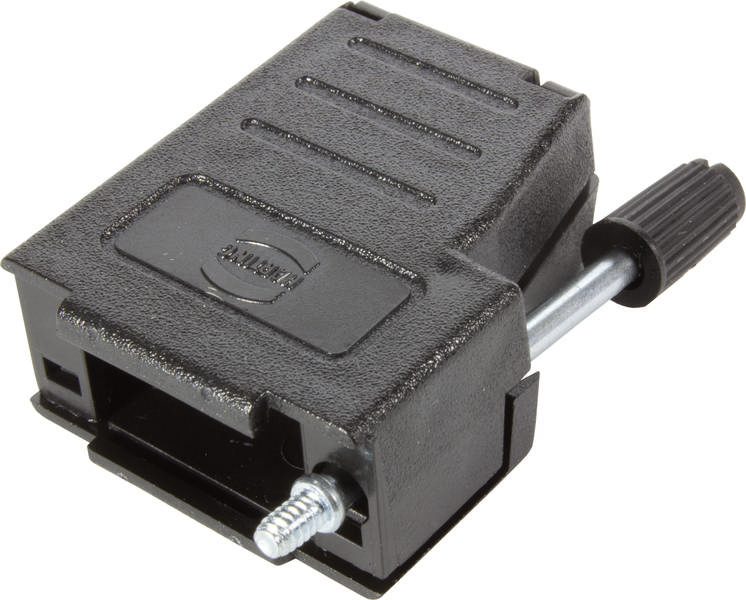

HARTING 09 67 009 0434 09670090434 Shell Plastic 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Manufacturer part #
09670090434
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Locking type: Knurled screw thread 4-40 UNC
- Net weight: 0.8 g
- Notes: Variant is only equipped with a screw on the opposite side of the cable input.
- Housing description: Cover can be locked
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cable clamping screw
- Size D-Sub 1
- Housing type: Shell housing
- Design: Flexible cable inputs
- Cable input 1x
- D-Sub case series
- Material housing: Plastic
- Colour of housing: Black
- cable diameter 11.5 mm
- Length: 40 mm
- Width 31.5 mm
- Height: 15 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -55 ... +110 °C
- Cable fixing: Cable clamp;cable sleeve
- Packaging type
Piece
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Manufacturer part #
09670090434
- Cable Ø
11.5 mm
- Width
31.5 mm
- Height
15 mm
- Length
40 mm
- Features
+ 4-40 knurl head screw
- Type
09 67 009 0434
Screw
Other
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003701 HARTING 09 67 009 0434 09670090434 Shell Plastic 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003701 HARTING 09 67 009 0434 09670090434 Shell Plastic 1 pc(s) Piece
Description
Shell housing, cover can be locked, size: D-Sub 1, knurled screw thread 4-40 UNC, flexible cable inputs, 1x, material housing: Plastic
