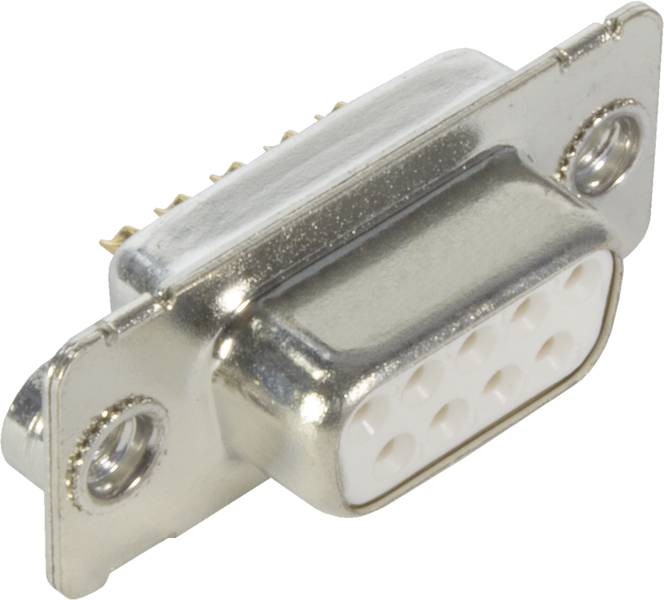

HARTING 09 67 009 1715 09670091715 Connector Number of pins: 9 Solder bucket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Connector type
Socket, straight
Number of pins
9
Connection
Solder bucket
Datasheet (PDF)
Highlights & Details
Connectors
- Connector
- Number of pins: 9
Technical specifications
- Series D-Sub
- Component: Connector
- Contact description: Rotated;straight
- Connection type: Solder cup connection
- Type of connection: Circuit board to cable; cable to cable
- Number of contacts: 9
- Locking type: Flange with thread M3
- Rated current 7.5 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -55 ... +125 °C
- Mating cycles ≥ 250
- Test voltage Ueff 1 kV
- Material application: Thermoplastic molding material, glass fiber reinforced (PBTP);Shell: Steel, tin plated
- Colour insert: White
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
- Material flammability class acc. To UL 94: V-0
- DIN 41652 standard
- Net weight: 1 kg
- Designation: Default
- Airway: ≥ 1 mm
- Creepage distance ≥ 1 mm
- Hot plugging: No.
- Plug-in force ≤ 30 N
- Pull force: ≥ 3.3 N;≤ 20 N
- Gender: Jack
- Wire cross-section AWG 20
- Stripping length: 2.5 ... 3 mm
- Tightening torque: ≤0.6 Nm screw bolts
- Size D-Sub 1
- Packaging type
Piece
- Type
D-Sub
- Product type
Connector
- Connector type
Socket, straight
- Number of pins
9
- Connection
Solder bucket
- Content
1 pc(s)
- Mating cycles
≥ 250
- Manufacturer part #
09670091715
- Factory colour
White
- Contact type
Machined contacts
- Contact material
Copper alloy
- Contact surface
Precious metal
- Features
+ thread
- Type
09 67 009 1715
Plug/bus
9
Documents & Downloads
Datasheet
Datasheet 3011329 HARTING 09 67 009 1715 09670091715 Connector Number of pins: 9 Solder bucket 1 pc(s) Piece
Datasheet 3011329 HARTING 09 67 009 1715 09670091715 Connector Number of pins: 9 Solder bucket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3011329 HARTING 09 67 009 1715 09670091715 Connector Number of pins: 9 Solder bucket 1 pc(s) Piece
Description
Plug connector, solder cup connection, rated current: 7.5 A, jack, size: D-Sub 1
