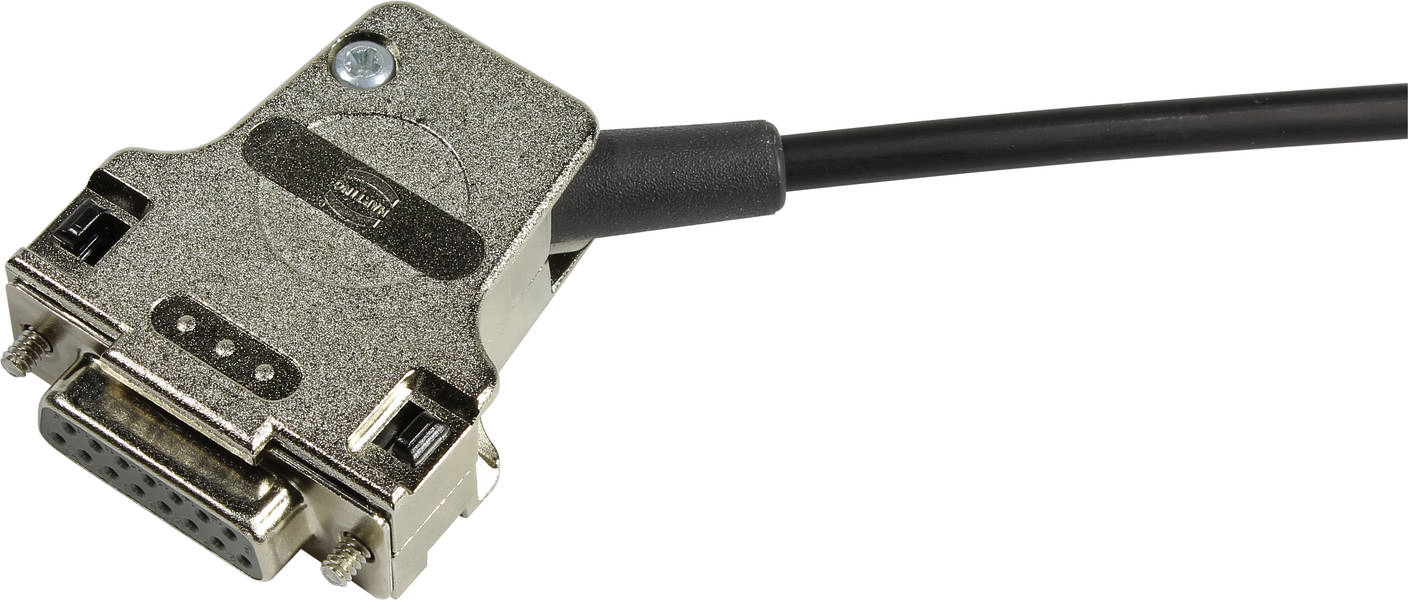

HARTING 09 67 015 0334 09670150334 Shell Metal 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Metal
Content
1 pc(s)
Shielded
Yes
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Shell housing
- Metal
Technical specifications
- Locking type: With short locking screws thread 4-40 UNC
- Net weight: 52.66 g
- Housing description: Cover can be screwed down
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cover screw;0,4 Nm cable clamping screw
- Size D-Sub 2
- Housing type: Shell housing
- Design: Side cable input
- Cable input 1x
- D-Sub case series
- Material housing: Metal
- Cable diameter: 3 ... 12.5 mm
- Length 41 mm.
- Width: 40.3 mm
- Height: 15.4 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -35 ... +100 °C
- Cable fixing: Cable clamp;Kink protection sleeve ≤ 6.5 mm
- Packaging type
Piece
- Product type
Shell
- Case material
Metal
- Content
1 pc(s)
- Shielded
Yes
- Manufacturer part #
09670150334
- Cable Ø (max.)
12.5 mm
- Cable Ø up to
3 mm
- Cable Ø range
3 - 12.5 mm
- Width
40.3 mm
- Height
15.4 mm
- Length
41 mm
- Features
shielded housing
- Type
09 67 015 0334
Screw
Angled
FALSE
Metal
FALSE
Documents & Downloads
Datasheet
Datasheet 3003793 HARTING 09 67 015 0334 09670150334 Shell Metal 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003793 HARTING 09 67 015 0334 09670150334 Shell Metal 1 pc(s) Piece
Description
Shell housing, screw-in cover, size: D-Sub 2, with short locking screws thread 4-40 UNC, side cable input, 1x
