HARTING 09 67 025 0437 09670250437 Shell Plastic 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Shielded
Yes
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Type of locking: Screw lock
- Net weight: 28.2 g
- Shielding: shielded
- Protection class according to IEC 60529:IP67
- Tightening torque: 0,4 Nm fixing screws;0,4 Nm cable clamping screw
- Size D-Sub 3
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- Housing series D-Sub IP67
- Material housing: Plastic
- Surface of casing: Metallized
- Cable diameter: 8 ... 10 x 5 mm.
- Length: 52 mm
- Width 55.7 mm
- Height: 19.1 mm
- 2-part: no.
- divisible: no.
- Ambient temperature: -25 ... +70 °C
- Cable fixing: Cable clip
- Packaging type
Piece
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Shielded
Yes
- Manufacturer part #
09670250437
- Cable Ø (max.)
10.5 mm
- Cable Ø up to
8 mm
- Cable Ø range
8 - 10.5 mm
- Width
55.7 mm
- Height
19.1 mm
- Length
52 mm
- Features
+ screw lock
- Type
09 67 025 0437
IP67
Screw
Straight
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003686 HARTING 09 67 025 0437 09670250437 Shell Plastic 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003686 HARTING 09 67 025 0437 09670250437 Shell Plastic 1 pc(s) Piece
Description

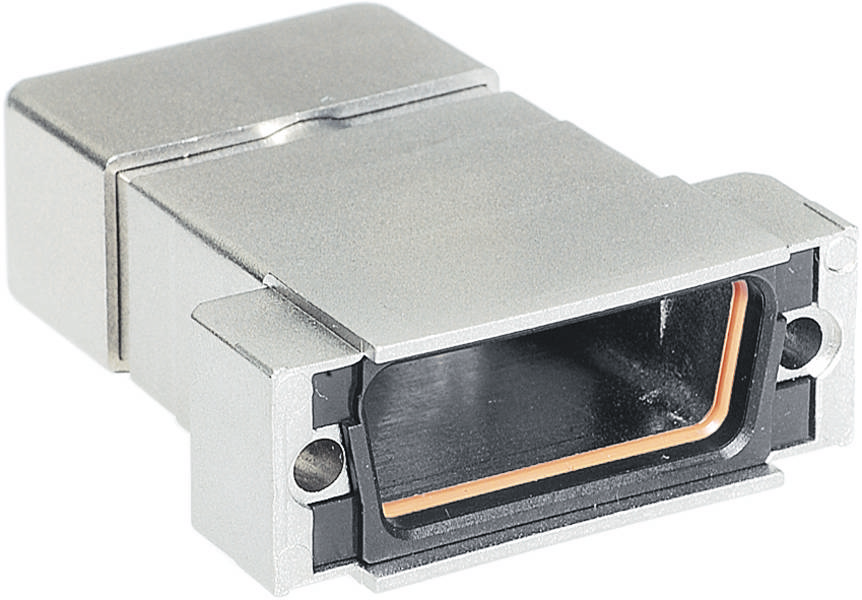

Shell housing, size: D-Sub 3, screw locking, straight cable input, 1x, Material housing: plastic, metallized, protection class IP67
