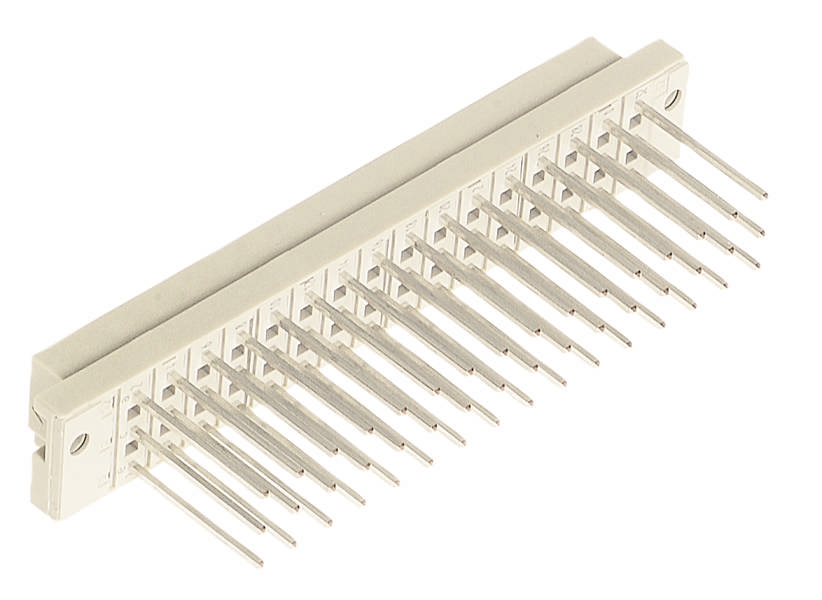

HARTING 09052486821 Edge connector (sockets) No. of rows 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (sockets)
Connector type
straight
Content
1 pc(s)
Total number of pins
48
No. of rows
3
Datasheet (PDF)
Highlights & Details
- Total number of pins 48
- No. of rows 3
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (sockets)
- Connector type
straight
- Total number of pins
48
- No. of rows
3
- Connection
Wire wrap
- Factory colour
Pebble grey (RAL 7032)
- Case material
PA
- Manufacturer part #
09052486821
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 05 248 6821
Printed circuit board to cable
Other
48
Other
-55-125 °C
Other
Direct connection
Other
20 mm
3
5.08 mm
Thermoplastic
90° (upwards vertical)
Flange
6 A
