Buy HARTING 09061216981 Edge connector (pins) 1 pc(s)

Product type

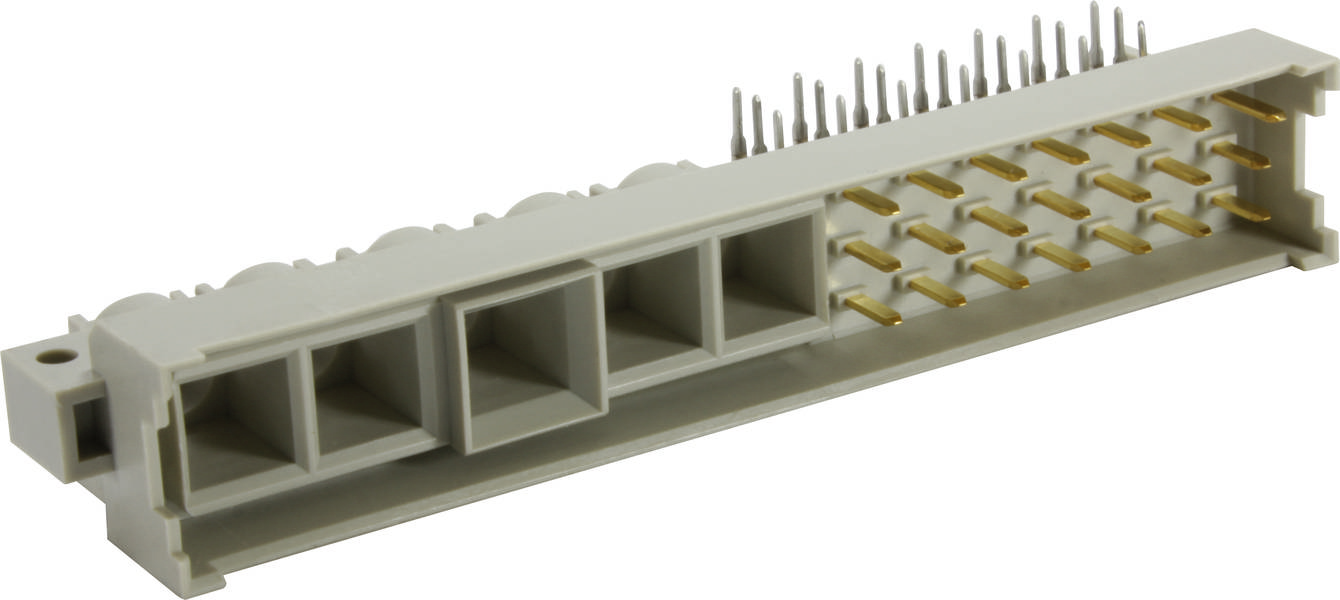

Edge connector (pins)

Connector type

right angle

2.54 mm

5.08 mm

Content

1 pc(s)

Total number of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

DIN 41612 series
Component: Terminal strip
Contact description: Angled
Connection type: Shaft soldering connection
Type of connection: Motherboard to Daughtercard;PCB to cable;cable to cable
Number of contacts: 26
Grid, connection side 2.54 mm;5.08 mm
Rated current: Rated current measured at 20 °C, for details see derating curve
Insulation resistance >1012 Ω
Constant resistance: 15 mΩ
Temperature limit: -55 ... +125 °C
Plug and pull force ≤ 85 N
Mating cycles ≥ 400
Test voltage Ueff 1.55 kV
Insulation material group IIIa (175 ≤ CTI < 400)
Material application: Thermoplastic molding material, glass fiber reinforced
Colour use: RAL 7032 (pebble gray)
Material contacts: Copper alloy
Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
Material flammability class acc. To UL 94: V-0
IEC 60603-2 standard supplement
Net weight: 17.52 g
Name: Type MH 21+5
Pitch, plug-side 3.81 mm;5.08 mm
Airway: ≥ 1.6 mm
Creepage distance ≥ 3 mm
Features: Lead-free;Rated current special contacts: See data sheet of the selected contacts
Number of signal pins: 21
Number of special contacts: 5
PCB mounting: With flange
Hot plugging: No.
Path classification: F4/I3 according to NFF 16-101/102
Contact configuration: Rows z, b and d, positions 20, 22, 24, 26, 28, 30, 32
Coding: Flange; coding with contact loss
Leading contact in position: Z32
