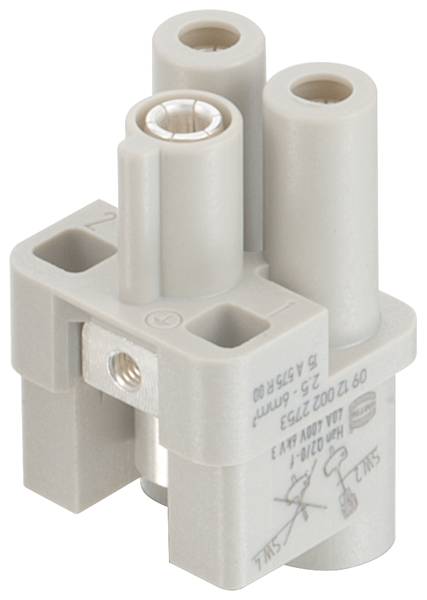

HARTING 09120022755 Connector Han® Q 2 + PE Axial screw terminal 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Series
Han® Q
Connection
Axial screw terminal
Total no. of pins
2 + PE
Core cross section (min.)
1.5 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® Q
- Connection type: Axial screw connection
- Number of contacts: 2
- Rated current 40 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 25.1 g
- Designation: 2/0
- Rated voltage: 400 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Conductor cross-section: 1.5 ... 2.5 mm².
- Tightening torque: 1,8 Nm
- Design size 3 A
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 400 V.
- Rated voltage according to CSA 400 V
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® Q
- Features
tin-plated contacts
- Connection
Axial screw terminal
- Number of pins
2
- Total no. of pins
2 + PE
- Core cross section (min.)
1.5 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
500
- Series
Han® Q
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
400 V
FALSE
2
Bus
-40-125 °C
V0
6 kV
Axial screw connection
Silver
3
FALSE
1.5-2.5 mm²
1.5-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
40 A
Thermoplastic
500
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007741 HARTING 09120022755 Connector Han® Q 2 + PE Axial screw terminal 1 pc(s)
Datasheet 3007741 HARTING 09120022755 Connector Han® Q 2 + PE Axial screw terminal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007741 HARTING 09120022755 Connector Han® Q 2 + PE Axial screw terminal 1 pc(s)
Description
Inserts, axial screw connection, socket, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 40 A, size 3 A, contacts 2
