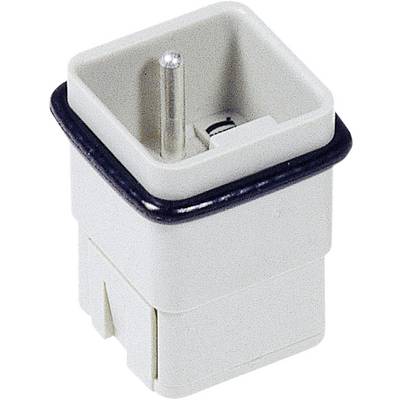

HARTING 09120053001 Pin inset Han® Q 5 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® Q
Connection
Crimp
Total no. of pins
5 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 12.60
-13 %
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
HARTING 09120053001 Pin inset Han® Q 5 + PE Crimp 1 pc(s)
Our service for you
Technical specifications
- Colour: RAL 7037
- Product type
Pin inset
- Factory colour
Grey
- Series
Han® Q
- Connection
Crimp
- Number of pins
5
- Total no. of pins
5 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Size
3 A
- Rated voltage
400 V
- Test current
16 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Type
Pin insert
- Core connector
0.14 - 2.5 mm²
- Contamination level
3
- Pins
5 + PE
- Connection
Crimp
- Voltage
(VDE) 400 V/(UL/CSA) 500 V
- Temperature range
-40 - +125 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 749463 HARTING 09120053001 Pin inset Han® Q 5 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 749463 HARTING 09120053001 Pin inset Han® Q 5 + PE Crimp 1 pc(s)
Description
Heavy industrial connectors for the toughest requirements in automotive, machine and plant engineering.
Hints
Suitable crimp contacts must be ordered separately!
