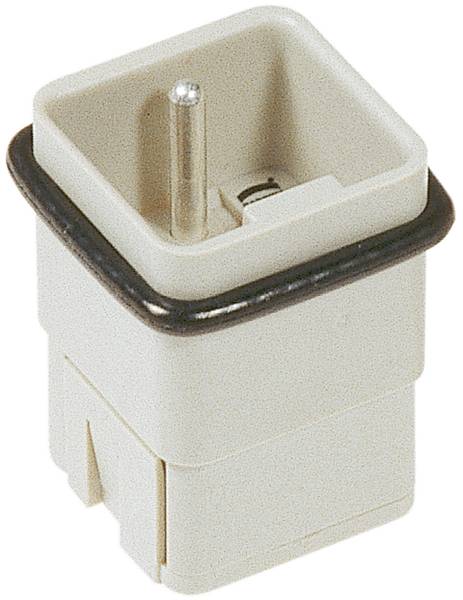

'Close-up of a white electrical connector with a metal pin and black seal.'

'Close-up of a white electrical connector with a metal pin and black seal.'

Product type

Pin inset

Series

Han® Q

Connection

Crimp

Total no. of pins

5 + PE

Core cross section (min.)

0.14 mm²

Datasheet (PDF)

English

HARTING

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Pin inset

Factory colour: Pebble grey (RAL 7032)

Series: Han® Q

Connection: Crimp

Number of pins: 5

Total no. of pins: 5 + PE

Core cross section (min.): 0.14 mm²

Core cross section (max.): 2.5 mm²

Mating cycles: 500

Series: Han® Q

Content: 1 pc(s)

Max. temperature: +125 °C

Min. temperature: -40 °C

Leading contact (PE): Yes

: FALSE

: 5

: Pin

: -40-125 °C

: V0

: 4 kV

: Crimp connection

: Other

: 3

: FALSE

: 0.14-2.5 mm²

: 0.14-2.5 mm²

: TRUE

: Other

: Thermoplastic

: 16 A

: Thermoplastic

: 500

: 5
