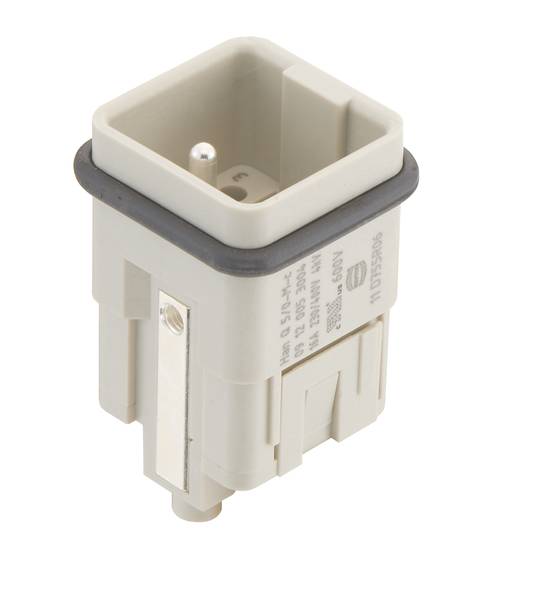

HARTING 09120053004 Pin inset Han® Q 5 + PE Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Series
Han® Q
Connection
Crimp
Total no. of pins
5 + PE
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® Q
- Connection
Crimp
- Number of pins
5
- Total no. of pins
5 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han® Q
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
FALSE
5
Pin
-40-125 °C
V0
4 kV
Crimp connection
Other
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other
Thermoplastic
16 A
Thermoplastic
500
5
Documents & Downloads
Datasheet
Datasheet 3007894 HARTING 09120053004 Pin inset Han® Q 5 + PE Crimp 1 pc(s) Piece
Datasheet 3007894 HARTING 09120053004 Pin inset Han® Q 5 + PE Crimp 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007894 HARTING 09120053004 Pin inset Han® Q 5 + PE Crimp 1 pc(s) Piece
