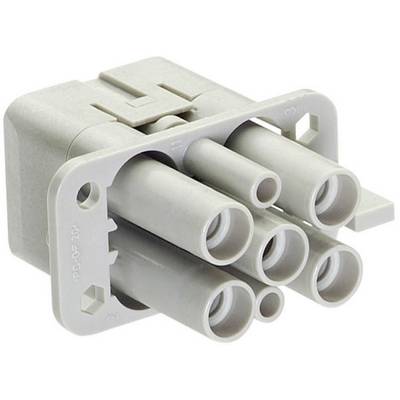

HARTING 09120063141 Socket inset Han® Q 4 + 2 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Series
Han® Q
Connection
Crimp
Total no. of pins
4 + 2 + PE
Factory colour
Grey
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included
Highlights & Details
HARTING 09120063141 Socket inset Han® Q 4 + 2 + PE Crimp 1 pc(s)
- Manufacturer type description: Han Q 4/2 F-c
- Han-Compact ®
Technical specifications
- Product type
Socket inset
- Factory colour
Grey
- Series
Han® Q
- Connection
Crimp
- Number of pins
4
2
- Total no. of pins
4 + 2 + PE
- Mating cycles
≥ 500
- Size
Han-Compact ®
- Rated voltage
690 V
- Test current
40 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 749277 HARTING 09120063141 Socket inset Han® Q 4 + 2 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 749277 HARTING 09120063141 Socket inset Han® Q 4 + 2 + PE Crimp 1 pc(s)
Description
Heavy industrial connectors for the toughest requirements in automotive, machine and plant engineering.
4 Power Contacts Han ® C as well as 2 Signal Contact Han ® D.
This text is machine translated.
4 Power Contacts Han ® C as well as 2 Signal Contact Han ® D.
This text is machine translated.
Hints
Suitable crimp contacts must be ordered separately!
