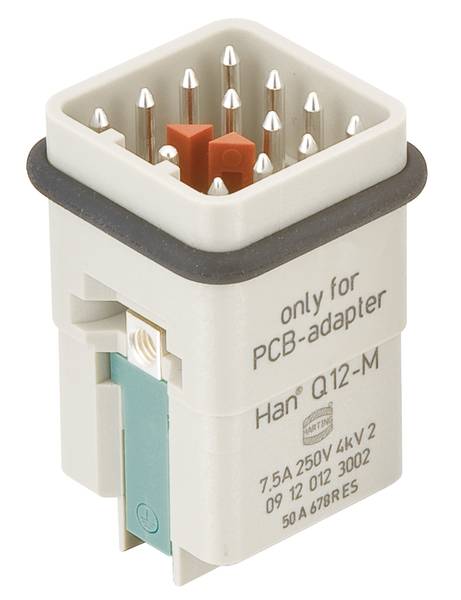

HARTING 09120123002 Pin inset Han® Q 12 + PE Soldering 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Series
Han® Q
Connection
Soldering
Total no. of pins
12 + PE
Datasheet (PDF)
Technical specifications
- Series: HAN® Q
- Connection type: Solder connection
- Number of contacts: 12
- Rated current 7.5 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 10.38 g
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Note: Order contacts separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Description: For PCB adapter
- Design size 3 A
- Approvals DNV GL
- PE contact: Yes
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® Q
- Connection
Soldering
- Number of pins
12
- Total no. of pins
12 + PE
- Mating cycles
≥ 500
- Series
Han® Q
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
250 V
FALSE
12
Pin
-40-125 °C
V0
4 kV
Soldering connection
Other
3
TRUE
TRUE
Other
Thermoplastic
7.5 A
Thermoplastic
500
12
Documents & Downloads
Datasheet
Datasheet 3007974 HARTING 09120123002 Pin inset Han® Q 12 + PE Soldering 1 pc(s) Piece
Datasheet 3007974 HARTING 09120123002 Pin inset Han® Q 12 + PE Soldering 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007974 HARTING 09120123002 Pin inset Han® Q 12 + PE Soldering 1 pc(s) Piece
Description
Inserts, solder connection, pin, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 7.5 A, size 3 A, contacts 12
