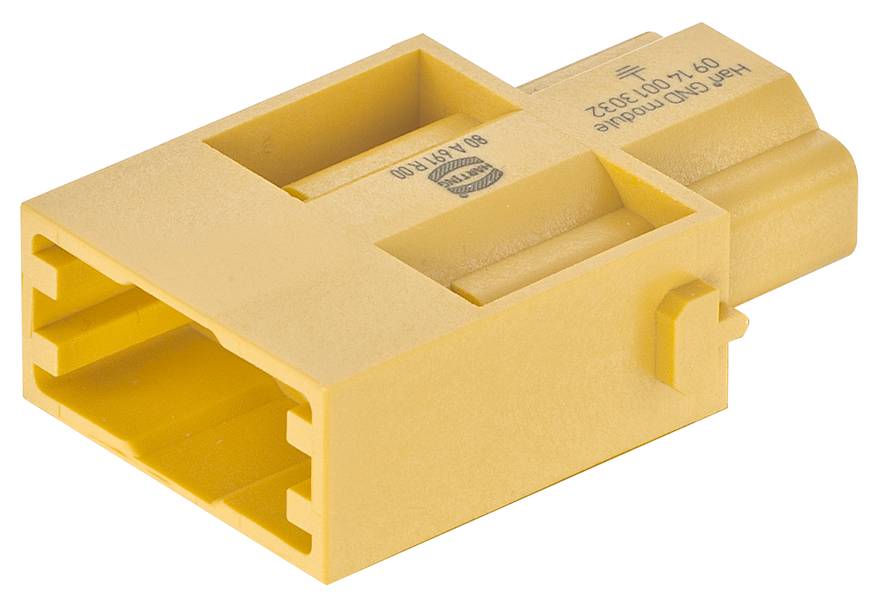

HARTING 09140013032 Pin inset 1 Crimp, Axial screw terminal 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Connection
Crimp
Axial screw terminal
Total no. of pins
1
Core cross section (min.)
10 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® GND
- Connection type: Crimp connection;axial screw connection
- Number of contacts: 1
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour insert: Yellow
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 9.04 g
- Note: Order contacts separately.
- Gender: Pen
- Conductor cross-section: 10 ... 35 mm²
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Yellow
- Connection
Crimp
Axial screw terminal
- Number of pins
1
- Total no. of pins
1
- Core cross section (min.)
10 mm²
- Core cross section (max.)
35 mm²
- Mating cycles
500
- Series
Han® GND
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
FALSE
1
Pin
-40-125 °C
V0
Crimp connection
Other
TRUE
10-35 mm²
10-35 mm²
Other
Thermoplastic
Thermoplastic
500
1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3007764 HARTING 09140013032 Pin inset 1 Crimp, Axial screw terminal 1 pc(s) Piece
Datasheet 3007764 HARTING 09140013032 Pin inset 1 Crimp, Axial screw terminal 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007764 HARTING 09140013032 Pin inset 1 Crimp, Axial screw terminal 1 pc(s) Piece
Description
Inserts, crimp connection, axial screw connection, pin, polycarbonate (PC), yellow, contacts: 1, conductor cross-section: 10...35 mm²
