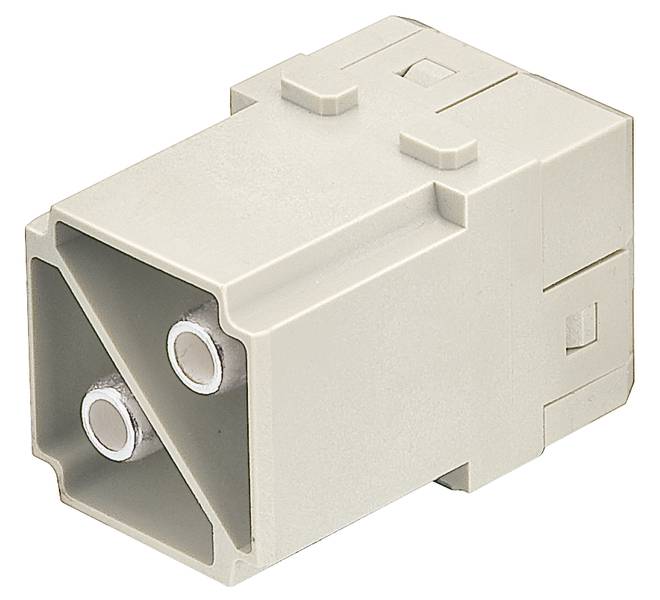

HARTING 09140022655 Twin module 2 Axial screw terminal 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twin module
Connection
Axial screw terminal
Total no. of pins
2
Core cross section (min.)
6 mm²
Core cross section (max.)
10 mm²
Datasheet (PDF)
Technical specifications
- Product type
Twin module
- Factory colour
Pebble grey (RAL 7032)
- Features
with screw connection
- Connection
Axial screw terminal
- Number of pins
2
- Total no. of pins
2
- Core cross section (min.)
6 mm²
- Core cross section (max.)
10 mm²
- Mating cycles
500
- Series
Han-Modular®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
1000 V
FALSE
2
Pin
-40-125 °C
V0
8 kV
Axial screw connection
Silver
3
FALSE
6-10 mm²
6-10 mm²
Other copper alloys
Thermoplastic
100 A
Thermoplastic
500
2
