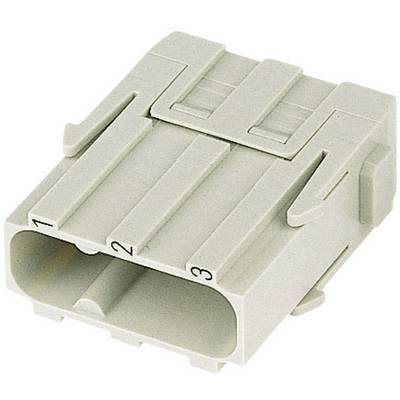

HARTING 09140033002 Pin inset Han® C-Modul 3 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® C-Modul
Connection
Screws
Total no. of pins
3 + PE
Number of pins
3
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
HARTING 09140033002 Pin inset Han® C-Modul 3 + PE Screws 1 pc(s)
Our service for you
Technical specifications
- Product type
Pin inset
- Series
Han® C-Modul
- Connection
Screws
- Number of pins
3
- Total no. of pins
3 + PE
- Mating cycles
≥ 500
- Rated voltage
500 V
- Test current
40 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Type
Pin insert
- Core connector
1.5 - 10 mm²
- Contamination level
3
- Pins
3
- Connection
Crimp
- Temperature range
-40 - +125 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 749591 HARTING 09140033002 Pin inset Han® C-Modul 3 + PE Screws 1 pc(s)
Description
The HAN-Modular® System can be put together as per each requirement from various basis modules. It can be used practically as proven standard contacts and housing
Hints
Suitable crimp contacts must be ordered separately!
