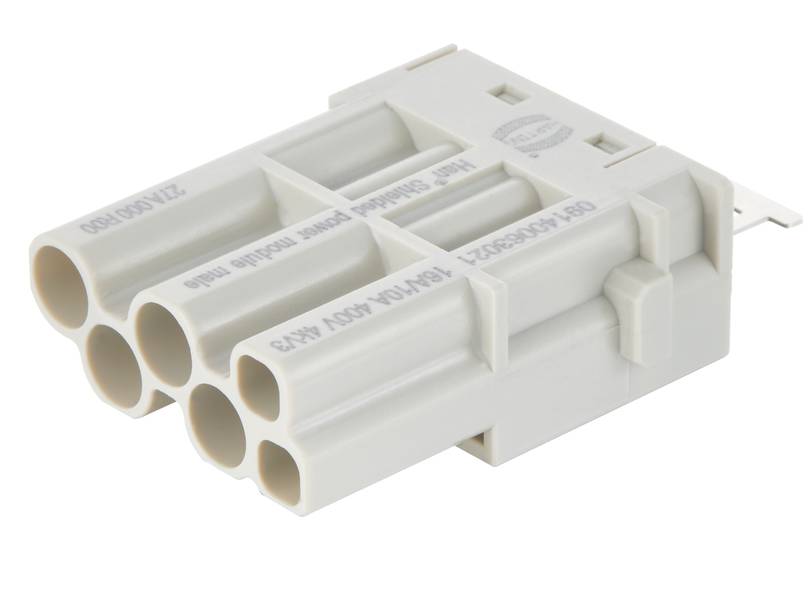

HARTING 09140063021 Single module 6 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single module
Connection
Crimp
Total no. of pins
6
Core cross section (min.)
0.14 mm²
Core cross section (max.)
4 mm²
Datasheet (PDF)
Technical specifications
- Product type
Single module
- Factory colour
Pebble grey (RAL 7032)
- Connection
Crimp
- Number of pins
6
- Total no. of pins
6
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
4 mm²
- Core cross section power contact (min.)
0.14 mm²
- Core cross section power contact (max.)
4 mm²
- Core cross section controller contact (min.)
0.14 mm²
- Core cross section controller contact (max.)
4 mm²
- Mating cycles
≥ 500
- Series
Han-Modular®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
400 V
FALSE
6
Pin
-40-125 °C
V0
4 kV
Crimp connection
Other
3
TRUE
0.14-4 mm²
0.14-4 mm²
Other
Thermoplastic
16 A
Thermoplastic
500
6
