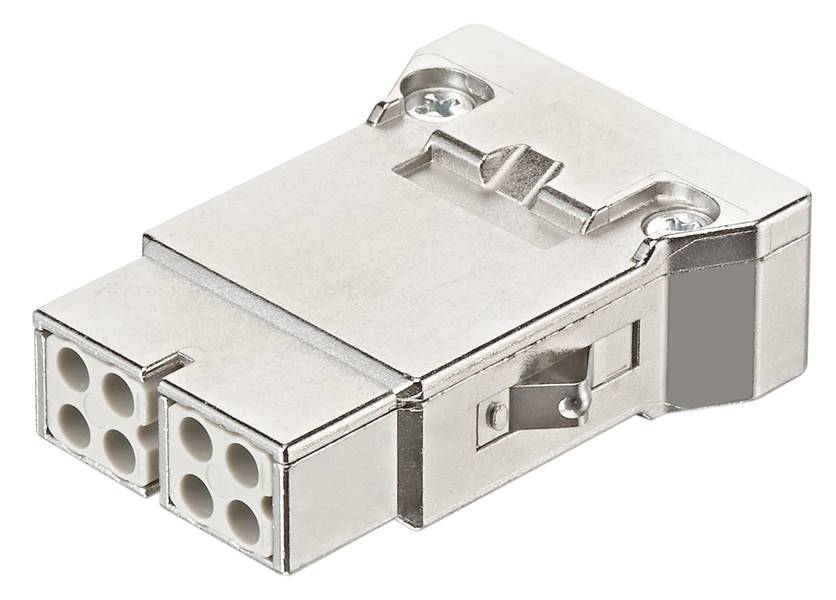

HARTING 09140083122 Connector 8 Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Connection
Crimp
Total no. of pins
8
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Connection type: Crimp connection
- Number of contacts: 8
- Rated current 10 A
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 43 g
- Rated voltage: 50 V
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Notes: Not suitable for use in low-profile housings as well as Han-Modular® Eco, Han-Modular® Compact and Han-Modular® Twin.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Data rate 100 Mbit/s.
- Gender: Jack
- Conductor cross-section: 0.14 ... 2.5 mm².
- Description: HAN® Megabit application; 2x 4 contacts; one cable input
- Further contacts: + shielding
- Transmission features: Cat. 5 class D to 100 MHz
- Material shielding: Zinc die-cast, nickel-plated
- Approvals DNV GL
- Rated voltage according to UL: 30 V.
- Constant resistance, shielding: ≤ 100 mΩ
- Rated current according to UL: 2 A AWG 26 ... AWG 20;6 A AWG 18;8 A AWG 16 ... AWG 14
- Packaging type
Piece
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Features
+ shielding
- Connection
Crimp
- Number of pins
8
- Total no. of pins
8
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
500
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
50 V
FALSE
8
Bus
-40-85 °C
V0
0.8 kV
Crimp connection
Other
3
TRUE
0.14-2.5 mm²
0.14-2.5 mm²
Other
Thermoplastic
10 A
Thermoplastic
500
8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007497 HARTING 09140083122 Connector 8 Crimp 1 pc(s) Piece
Datasheet 3007497 HARTING 09140083122 Connector 8 Crimp 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007497 HARTING 09140083122 Connector 8 Crimp 1 pc(s) Piece
Description
Crimp connection, socket, contacts: 8 + shielding, conductor cross-section: 0.14...2.5 mm², rated current: 10 A, polycarbonate (PC), RAL 7032 (pebble gray)
