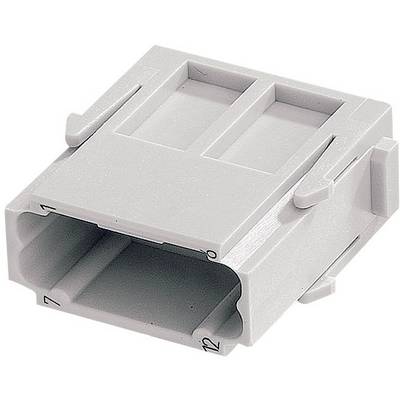

HARTING 09140123001 Pin inset Han® DD-Modul 12 + PE Crimp 2 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® DD-Modul
Connection
Crimp
Total no. of pins
12 + PE
Factory colour
Grey
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 2 pc(s))
Total (€ 3.36 / piece)
€ 6.71
plus VAT.
14-day return policy included
Highlights & Details
Industrial plug connector series Han® DD-module - inserts
Our service for you
Technical specifications
- Product type
Pin inset
- Factory colour
Grey
- Series
Han® DD-Modul
- Connection
Crimp
- Number of pins
12
- Total no. of pins
12 + PE
- Mating cycles
≥ 500
- Rated voltage
250 V
- Test current
10 A
- Content
2 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
Documents & Downloads
Datasheet
Datasheet 2246573 HARTING 09140123001 Pin inset Han® DD-Modul 12 + PE Crimp 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2246573 HARTING 09140123001 Pin inset Han® DD-Modul 12 + PE Crimp 2 pc(s)
Description
The HAN-Modular® System can be put together as per each requirement from various basis modules. It can be used practically as proven standard contacts and housing
Hints
Suitable crimp contacts must be ordered separately!
