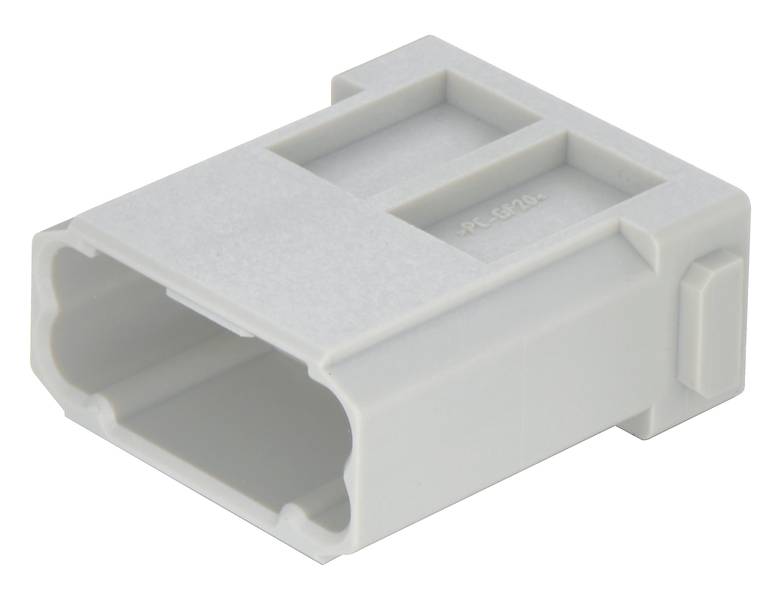

HARTING 09140123002 Single module Han® DD-Modul 12 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single module
Series
Han® DD-Modul
Connection
Crimp
Total no. of pins
12
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Product type
Single module
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® DD-Modul
- Features
no wire
- Connection
Crimp
- Number of pins
12
- Total no. of pins
12
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 10.000
- Series
Han-Modular®
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
No
250 V
FALSE
12
Pin
-40-125 °C
V0
4 kV
Crimp connection
Other
3
TRUE
0.14-2.5 mm²
0.14-2.5 mm²
FALSE
Other
Thermoplastic
10 A
Thermoplastic
500
12
- UKCA
yes
