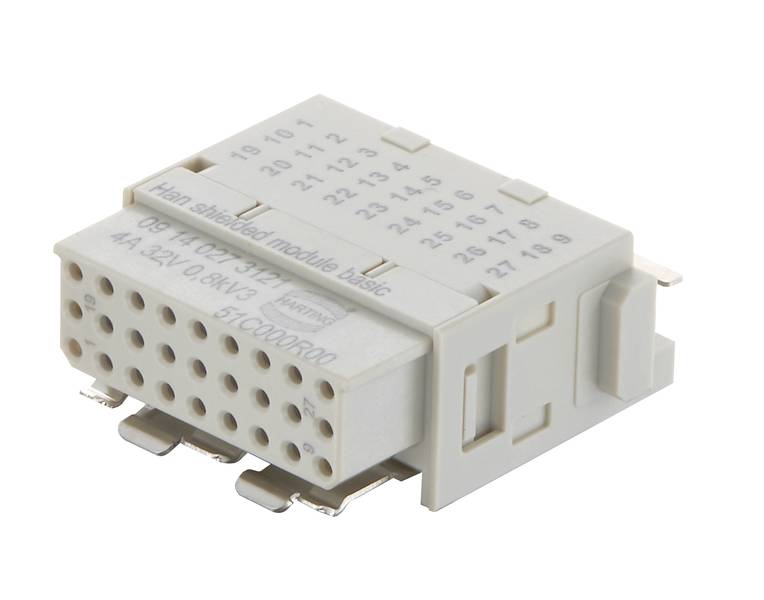

HARTING 09140273121 Single module 27 Crimp 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Single module
Connection
Crimp
Total no. of pins
27
Core cross section (min.)
0.09 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Single
- Product type
Single module
- Factory colour
Pebble grey (RAL 7032)
- Features
+ dimples
- Connection
Crimp
- Number of pins
27
- Total no. of pins
27
- Core cross section (min.)
0.09 mm²
- Core cross section (max.)
0.52 mm²
- Mating cycles
500
- Series
Han-Modular®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
32 V
FALSE
27
Bus
-40-125 °C
V0
0.8 kV
Crimp connection
Other
3
TRUE
0.09-0.52 mm²
0.09-0.52 mm²
Other
Thermoplastic
4 A
Thermoplastic
500
27
